Item No: 010647

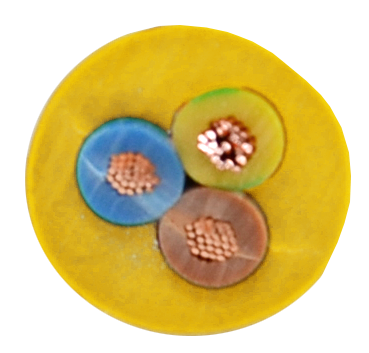

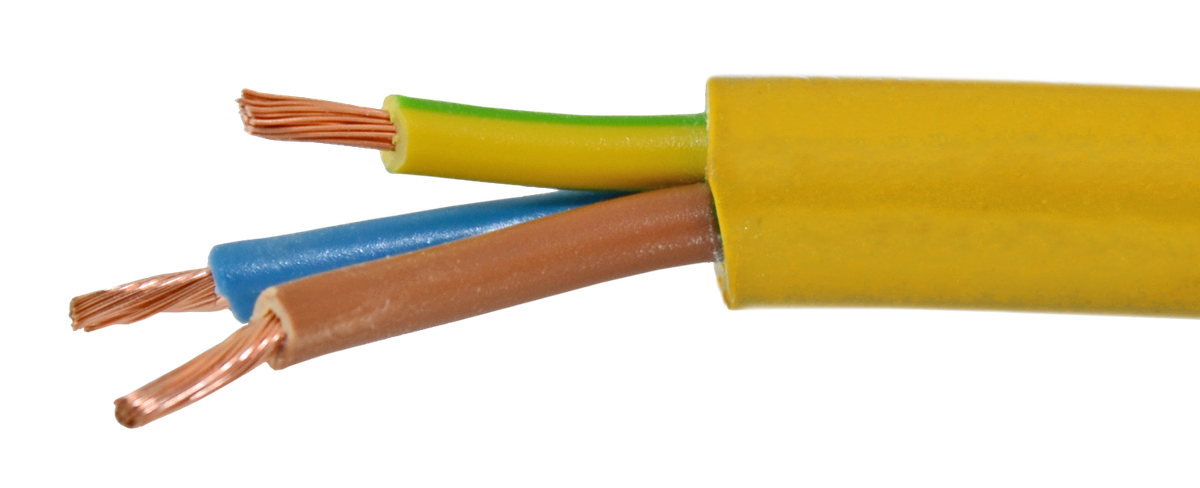

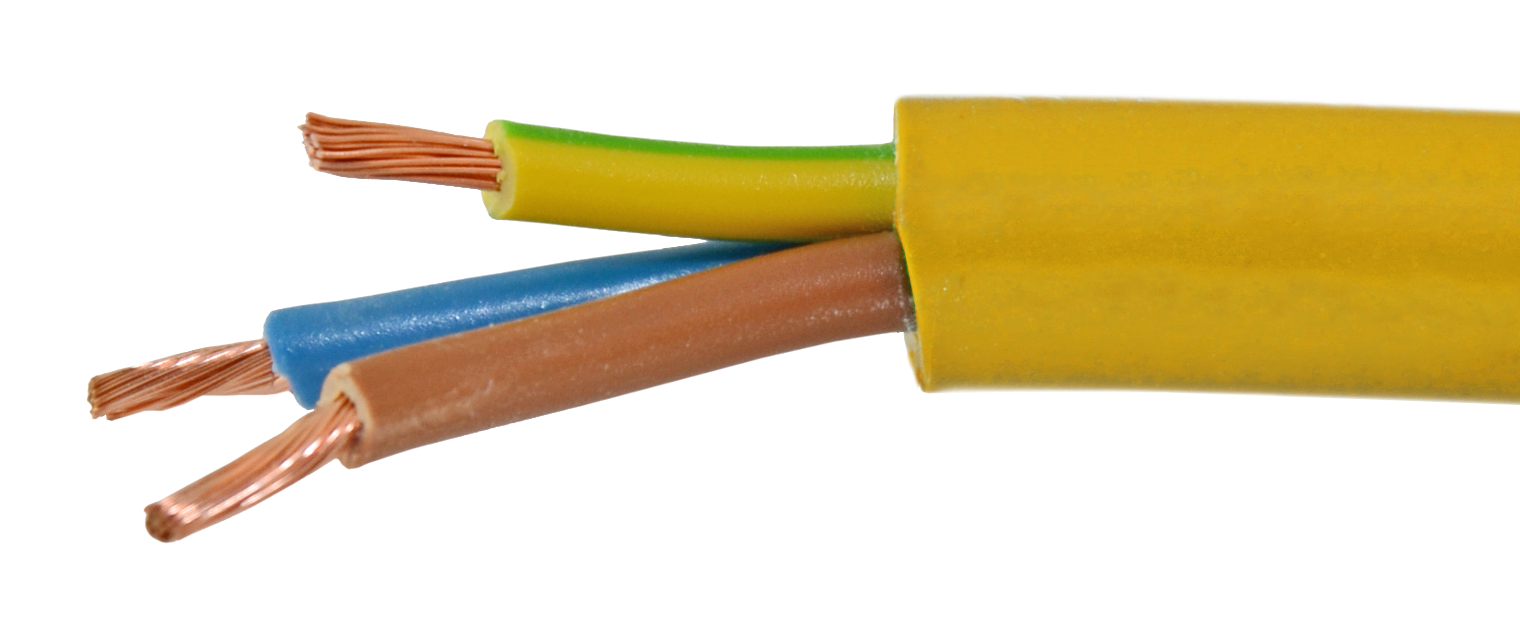

GIFAFLEX CH-N07V3V3-F reinforced 3x2.5mm², yellow RAL 1021, external-Ø 10.0mm

Technical data

Cross-section x mm²
3 x 2.5
Cable
Gifaflex
Colour
yellow
External diameter
10 mm
Voltage
450V / 750V
Code HD 308 S2
gn/ge, bl, br
Strand structure (quantity x mm)
50 x 0.25
Bending radius
10xD (D=Ø)
Testing voltage
2'000V - 3'000V / 50Hz
Weight kg/100m
15 kg
Temperature range
-25°C bis +70°C, ruhend bis -40°C
Cores/coat
Cu-flex (VDE 0295 Kl. 5), Gifaplast/Gifaplast (Spezialmischung)
