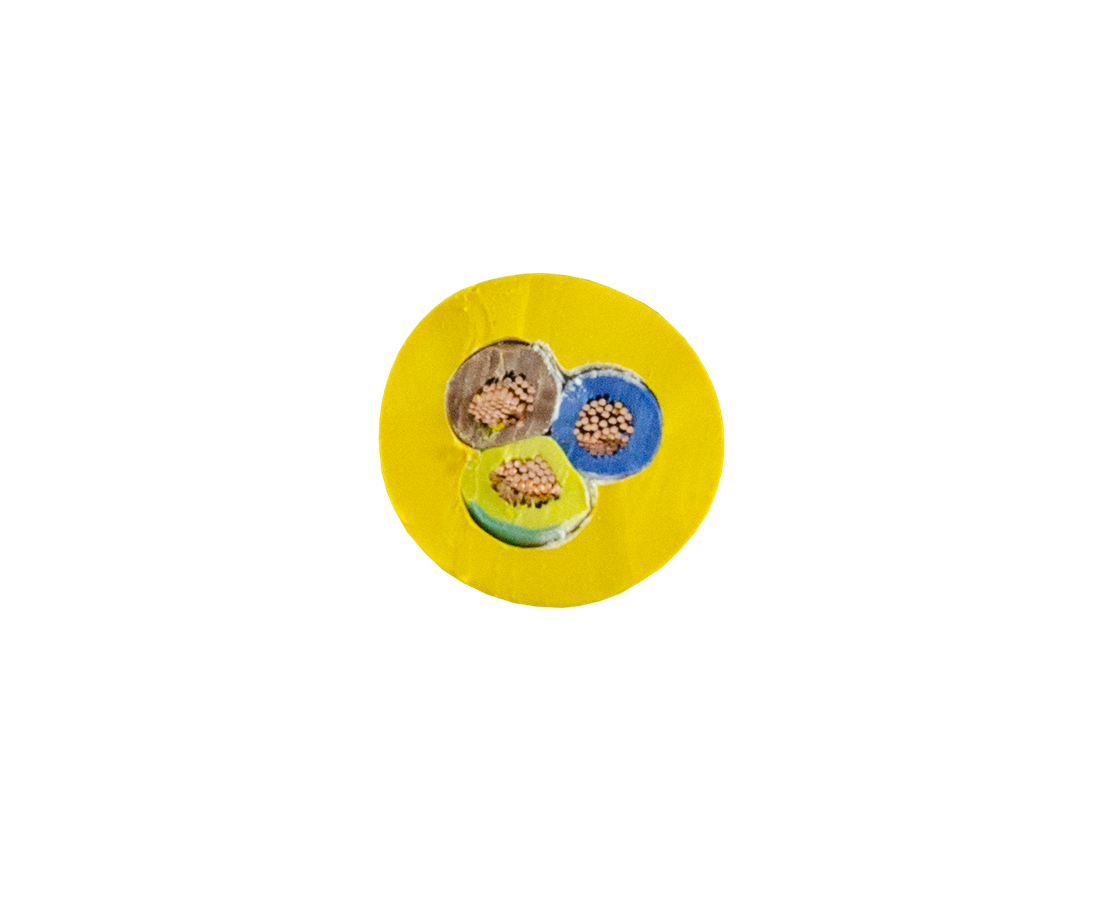

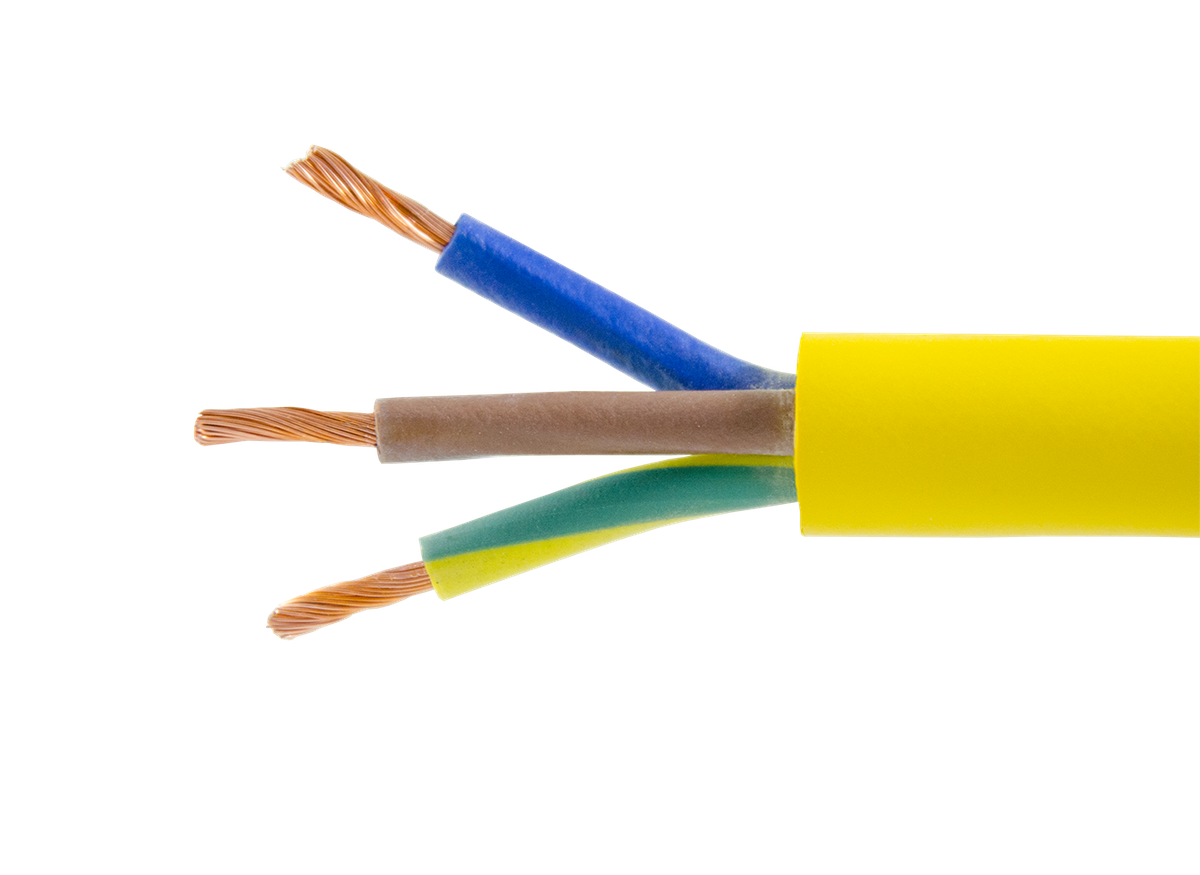

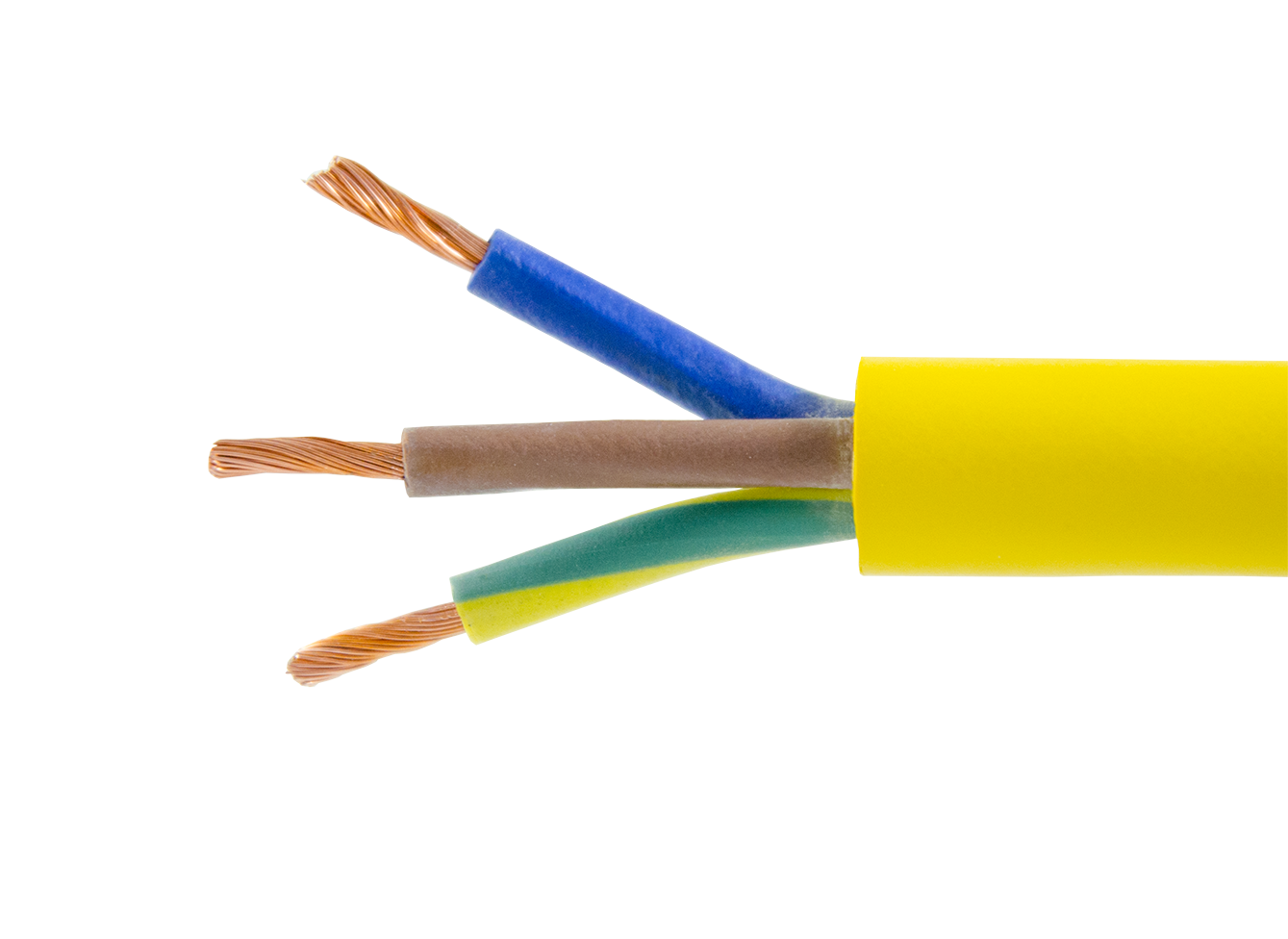

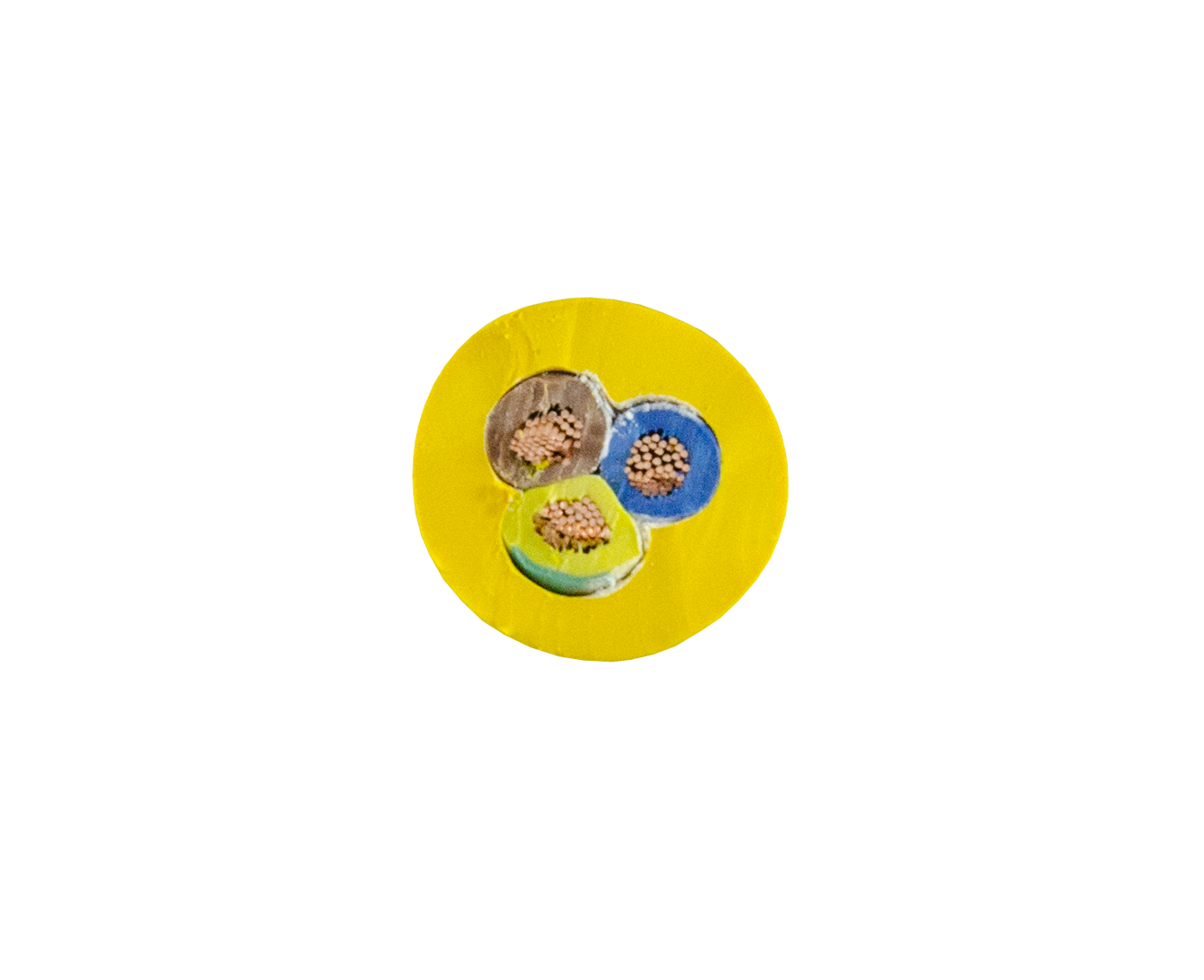

Item No: 047936

Cable PROFLEX HAR - H07 RN-F

3x2.5mm², yellow RAL 1021, external-Ø 11.6mm

Technical data

Cross-section x mm²
3 x 2.5
Cable
Proflex
Colour
yellow
External diameter
11.6 mm
Voltage
450V / 750V
Code HD 308 S2
gn/ge, bl, br
Strand structure (quantity x mm)
50 x 0.25
Bending radius
4xD (D=Ø)
Testing voltage
2'500V / 50Hz
Weight kg/100m
21.5 kg
Temperature range
-30°C bis +85°C, ruhend -50°C bis +85°C, kurzfristig bis +200°C
Cores/coat
Cu-flex (VDE 0295 Kl. 5), Polychloropren/Polychloropren (VDE 0207)
Water resistance
can be used permanently under water
