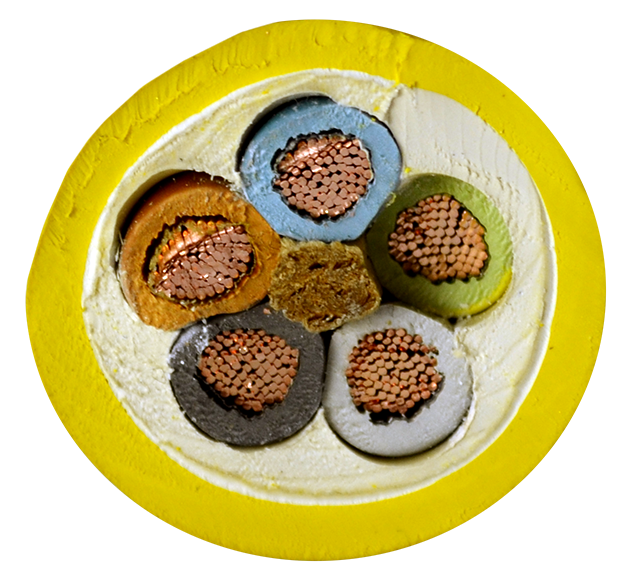

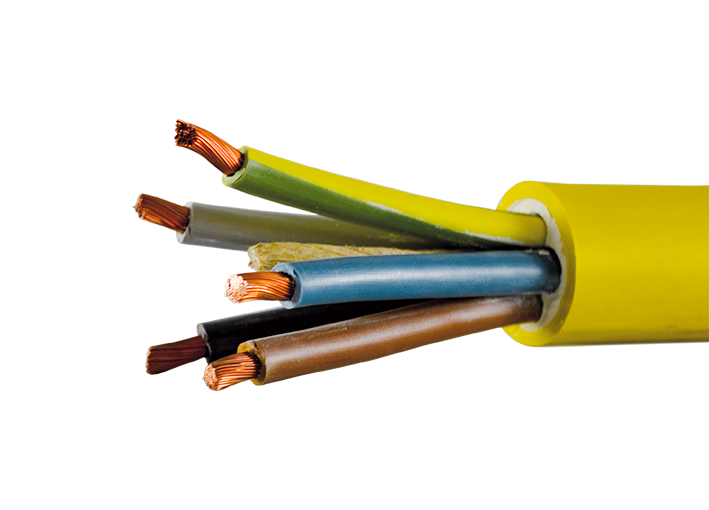

Cable PROFLEX HAR - H07 RN-F

5x2.5mm², yellow RAL 1021, external-Ø 13.9mm

Technical data

Cross-section x mm²: 5 x 2.5
Cable: Proflex
Colour: yellow
External diameter: 14.5 mm
Voltage: 450V / 750V
Code HD 308 S2: gn/ge, bl, br, sw, gr
Strand structure (quantity x mm): 50 x 0.25
Bending radius: 4xD (D=Ø)
Testing voltage: 2'500V / 50Hz
Weight kg/100m: 32.5 kg
Temperature range: -30°C bis +85°C, ruhend -50°C bis +85°C, kurzfristig bis +200°C
Cores/coat: Cu-flex (VDE 0295 Kl. 5), Polychloropren/Polychloropren (VDE 0207)
Water resistance: can be used permanently under water
