Item No:
056414

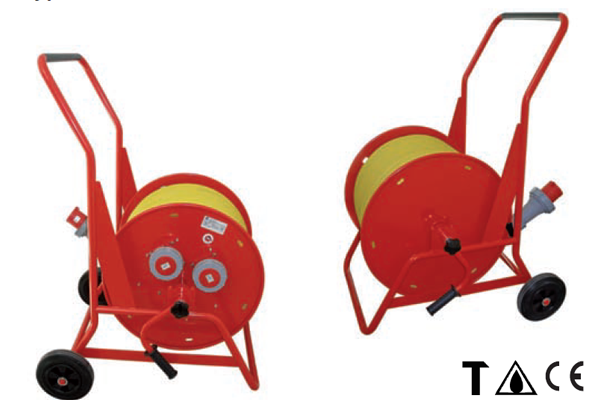

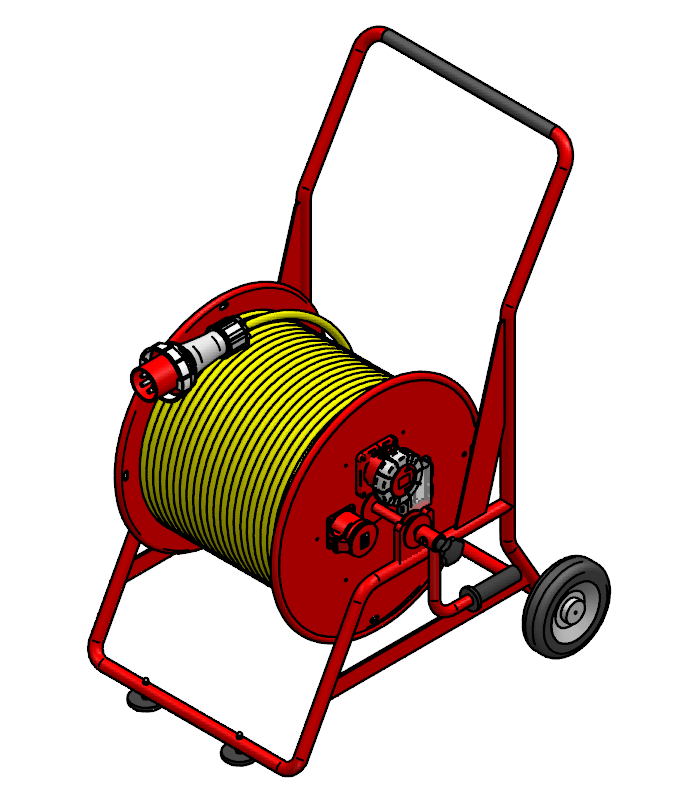

Cable reel steel type 505, red
1x CEE 32/5, 1x CEE 63/5 / (FI-LS) 80m 5x10.0/
CEE63/5 mounted, with current release
Technical data
- Input
- CEE 63/5
- Output
- 1xCEE 32/5, 1xCEE 63/5
- max. pre-fuse
- 63 A
- Output plug
-
- CEE 32/5
- CEE 63/5
- Cable length
- 80 m
- Cross-section x mm²
- 5 x 10.0
- Material bearer frame
- steel
- Case material
- steel
- Cable
- Proflex
- Input
- CEE 63/5
- Reel body
- yes
- Weight
- 107 kg
- Color reel body
- Red RAL 3020
- Protection rating
- IP44
- Height
- 1130 mm
- Width
- 746 mm
- Depth
- 805 mm
- Colour
- Red RAL 3020
