Plastic plug CEE <span>IP44/IP54</span>
400V/16A/3P+N+PE/50-60Hz/6h
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/228745/Marketing_-_Zeichnung_-_228745.png)
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/860236/images/a_0_0_683_0_0.jpg)
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/860668/StreamLED_2_Direktanschluss.png)
Item No:
227794

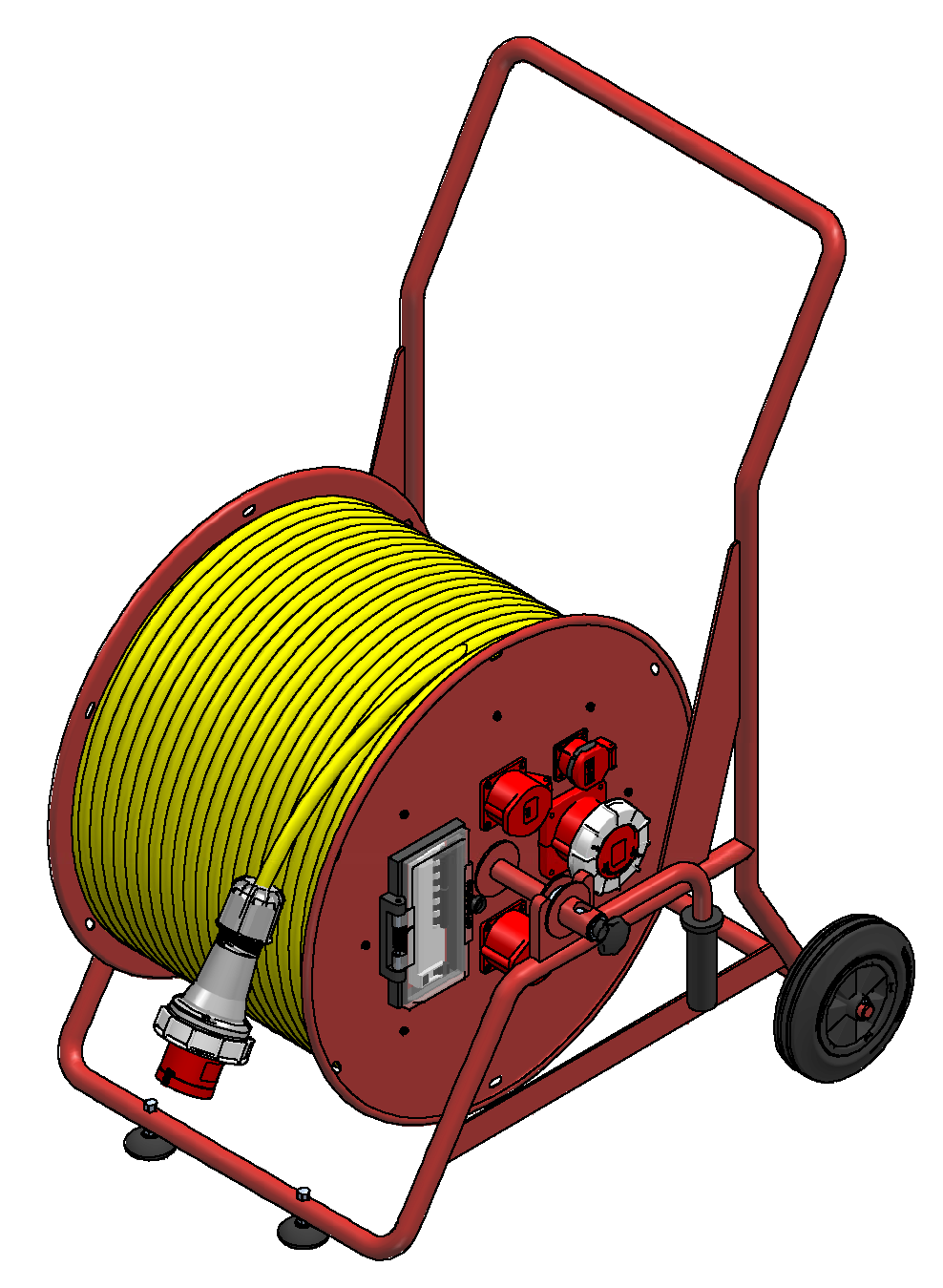

Cable reel steel type 505, red
1x T25 IP55, CEE16/5, CEE32/5, CEE63/5 /
FI-LS/ 50m 5x10.0 / CEE63/5 mounted
Technical data
- Input
- CEE 63/5
- Output
- 1xT25, 1xCEE 16/5, 1xCEE 32/5, 1xCEE 63/5
- max. pre-fuse
- 63 A
- Output plug
-
- T25
- CEE 16/5
- CEE 32/5
- CEE 63/5
- Cable length
- 50 m
- Cross-section x mm²
- 5 x 10.0
- Material bearer frame
- steel
- Case material
- steel
- Cable
- Proflex
- Input
- CEE 63/5
- Reel body
- yes
- Weight
- 80 kg
- Color reel body
- Red RAL 3020
- Protection rating
- IP44
- Height
- 1130 mm
- Width
- 746 mm
- Depth
- 805 mm
- Colour
- Red RAL 3020
