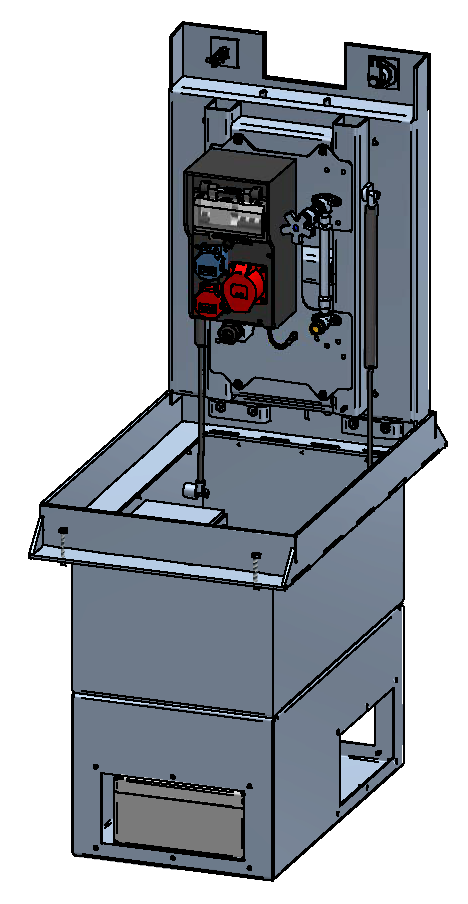

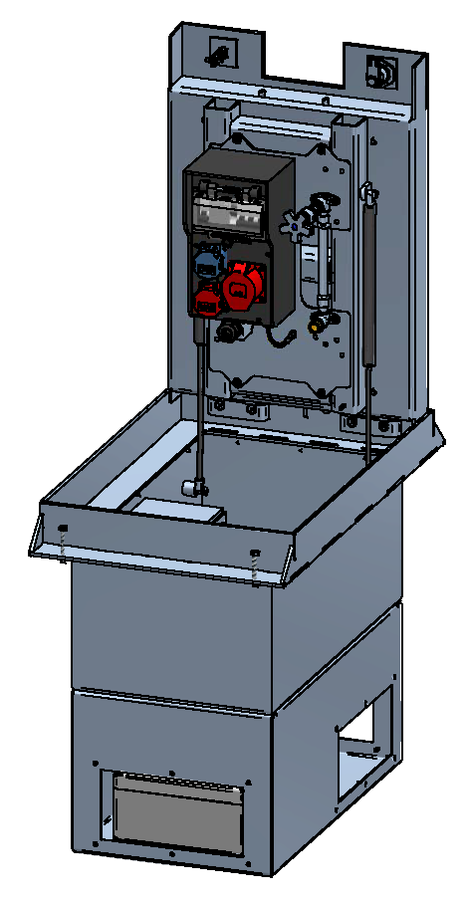

CAMPETTO M Underfloor distributor box, V2A, C250,

Technical data

Material

stainless steel V2A

Width

380 mm

Length

650 mm

Depth

650 mm

Type

M

Load capability

C250

Installation depth (delivery condition)

650 mm

Cover

individually fillable

Cable outlet

yes

Operating mode cover

closed

Cover heating

optional

Power distribution boxes

7200

max. pre-fuse

32 A

Output

1xT23, 1xT25, 1xCEE 16/5

Output plug

• T23
• T25
• CEE 16/5

Downloads

Dimensional drawing/Scheme

Accessories

Item No: 224822

CEE63 coupling bracket

Item No: 224823

CEE125 coupling bracket

Item No: 209412

Mounting bracket (cable flap / cable protection)

Item No: 209416

Cable protection (option)
