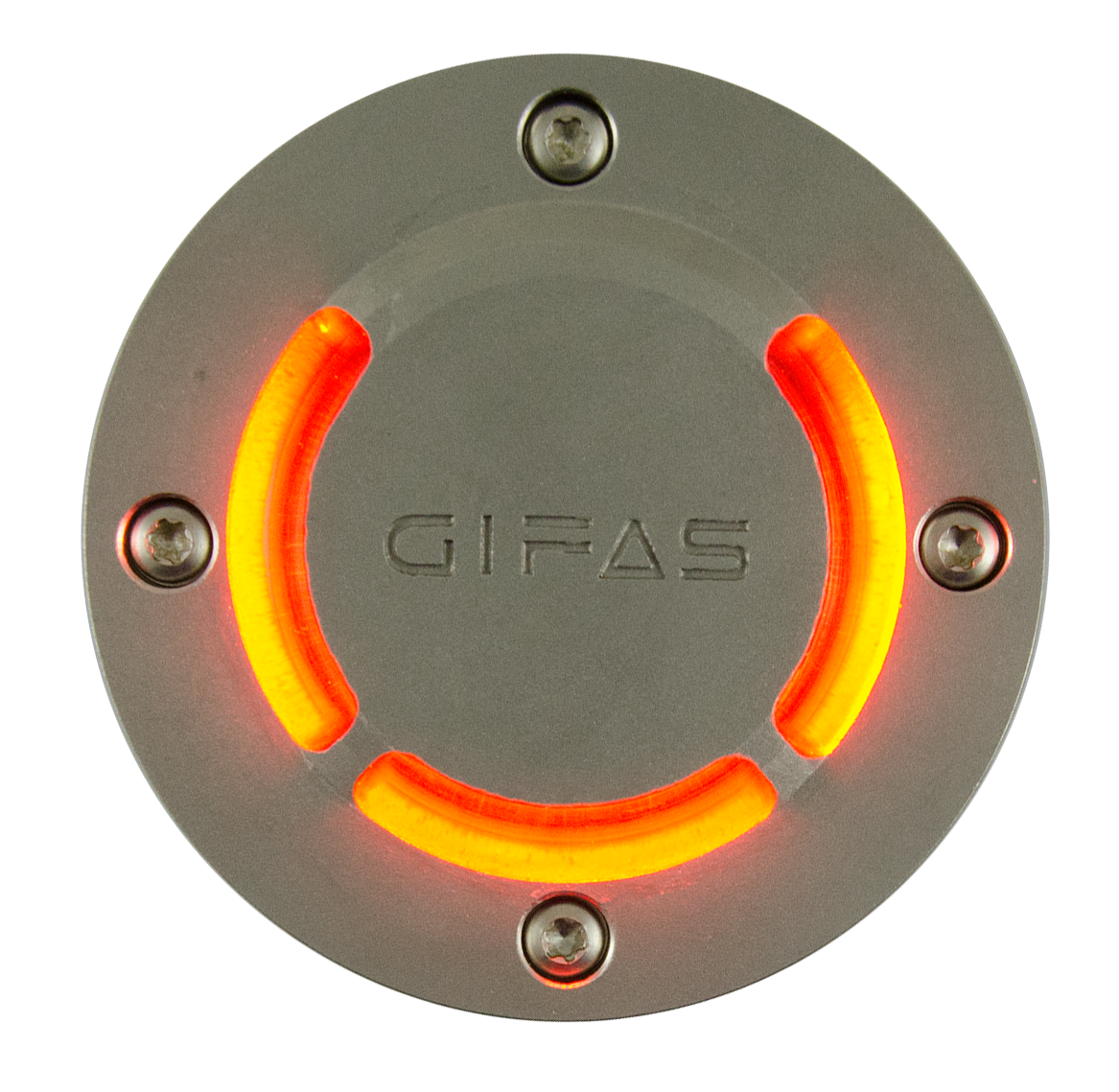

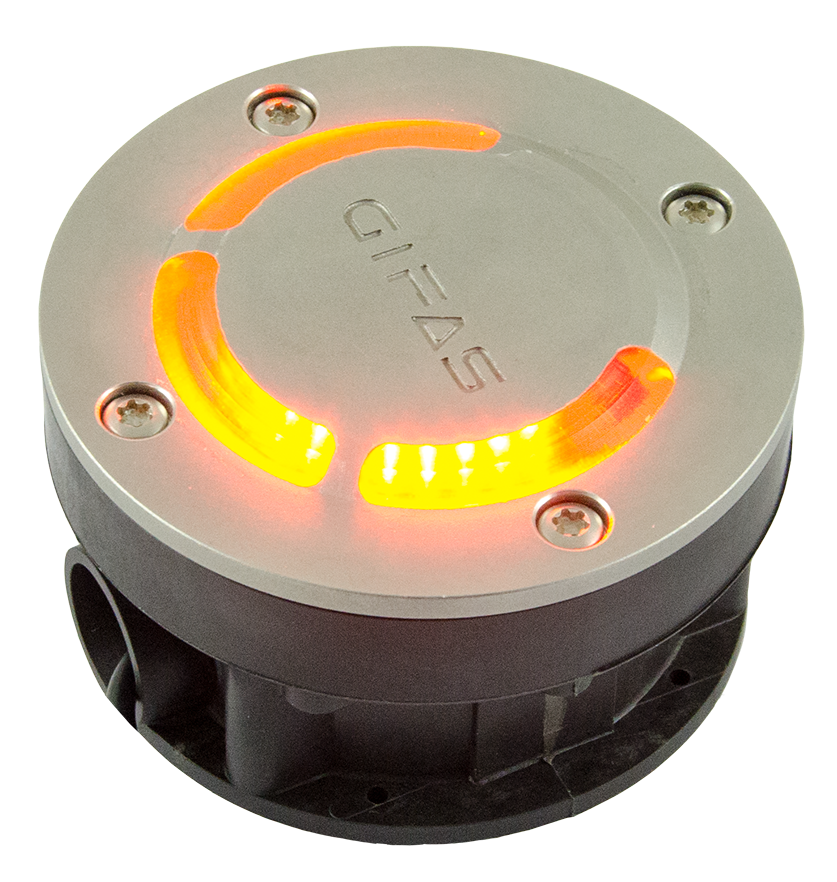

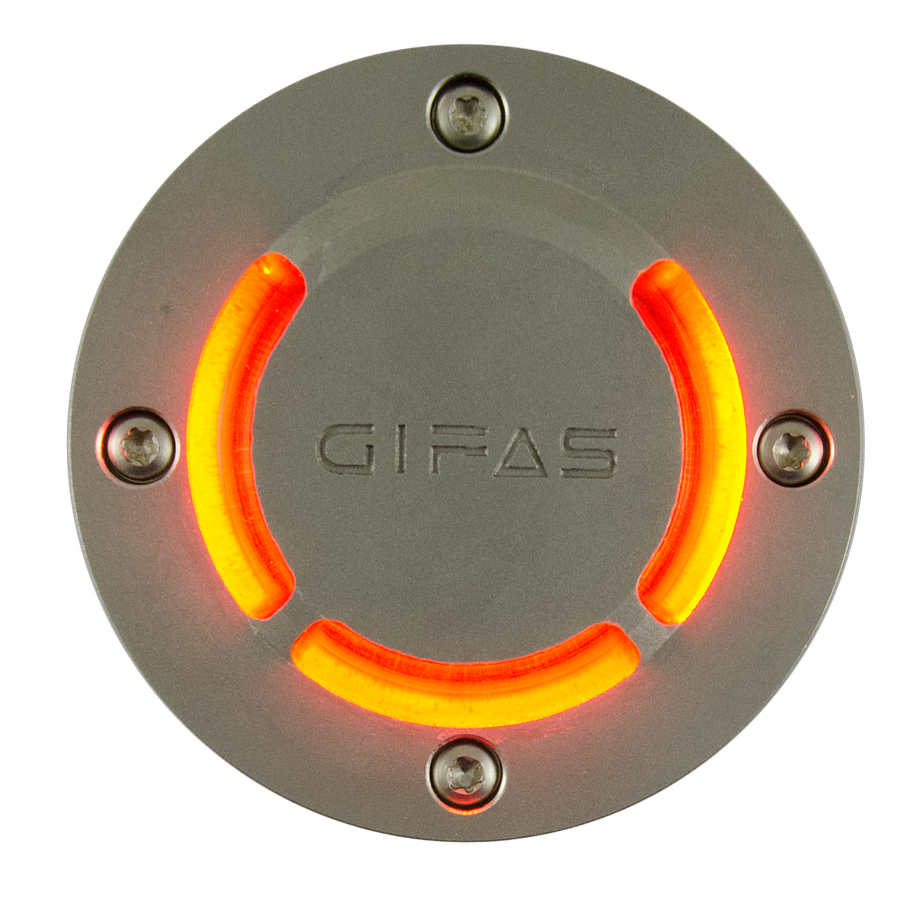

CircLED light module V4A,

Technical data

Protection rating

IP68

Height

73.5 mm

Protection class

III

Diameter

120 mm

Light colour

orange

Power consumption

130mA @ 24VDC

Material upper part

chrome steel V4A

Guidance system type

CircLED

Range of colours

609 nm

Luminosity

20 cd

Height over road surface level

3.5 mm

Accessories

Item No: 031353

CircLED lower section Ø120x65mm,

1xM16 (Ø4-9mm), casing plastic anthracite

Item No: 161035

Mortar PCI Polyfix Plus L

(bag of 25kg each)

Item No: 166534

Insulating gel BLUE GEL, solvent-free,

bottle of 1 litre, per LED module (CircLED/TrafficLED) 0.15 litres are required

Item No: 184454

2-component reactive resin

Bücofix SRV black (bucket of 5 kg)
