Item No: 230566

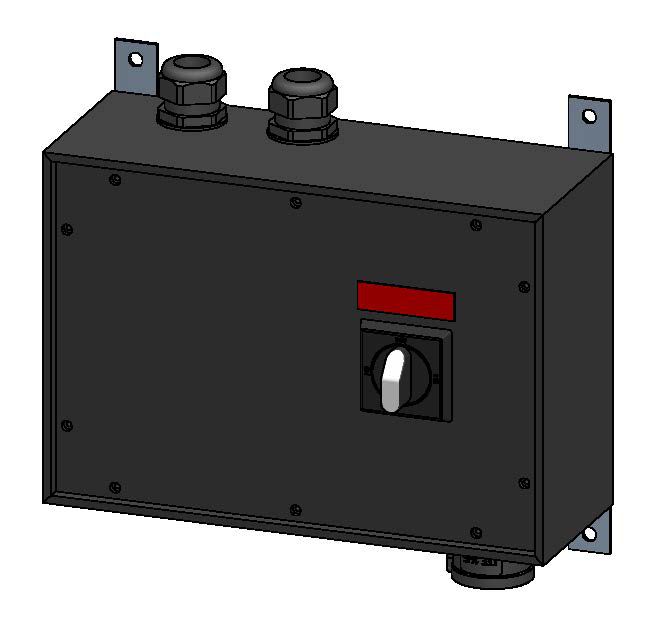

Emergency power mains switch in hard rubber

housing type 3800 black, mounting brackets incl. connector plug CEE16/5 7H, 2xM32

Technical data

Amperage
16 A
Switch
I-0-II 4P-40A
Input
2xM32
max. pre-fuse
40 A
Type
3800
Fixation
V2A bracket
Case colour
black
Protection rating
IP55
Width
362 mm
Height
252 mm
Depth
133 mm
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
Characteristics

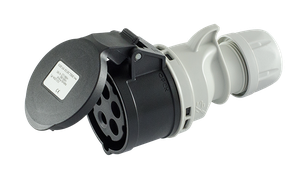

Connector plug 7H

Output plug
CEE 16/5
