Item No:
046866

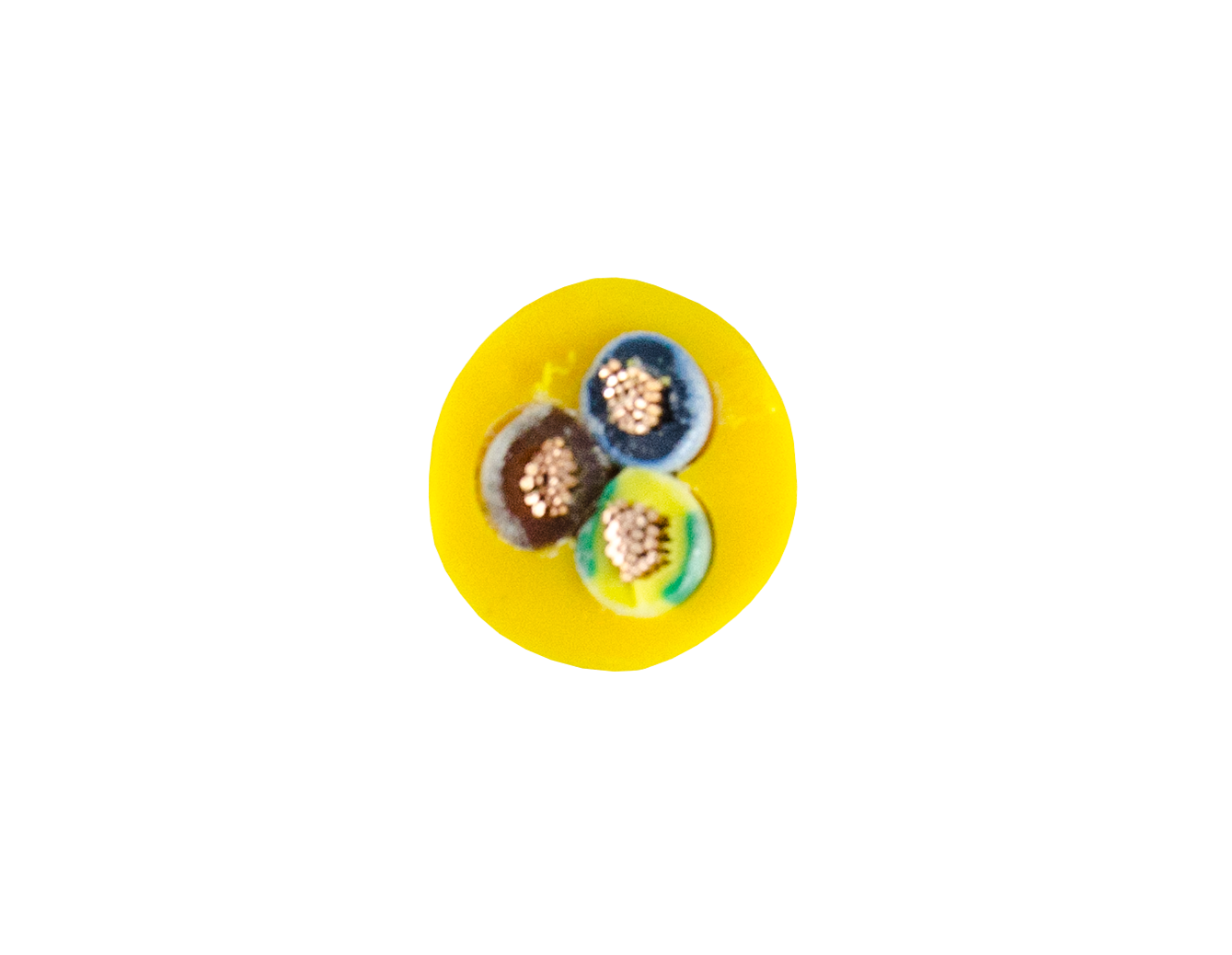

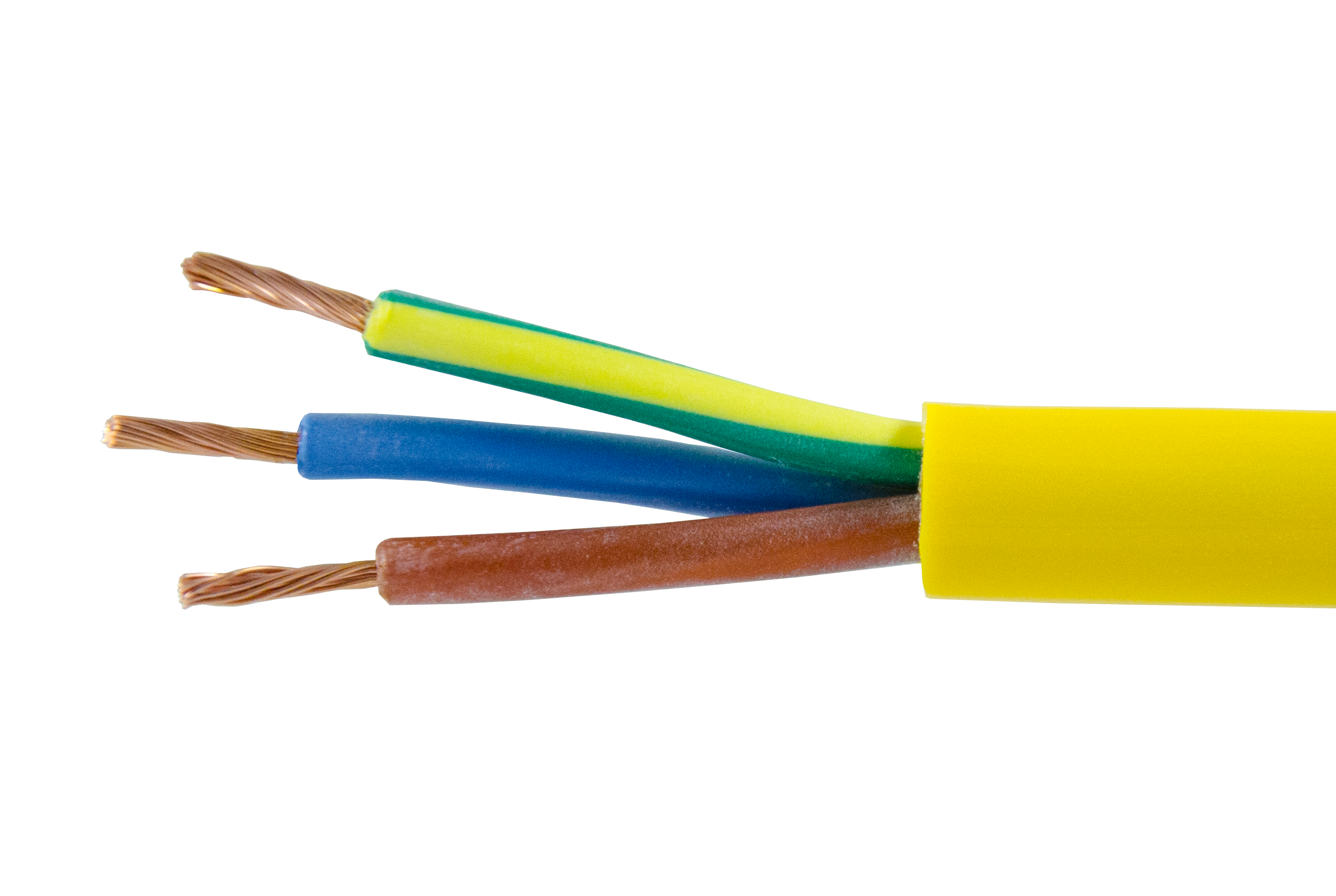

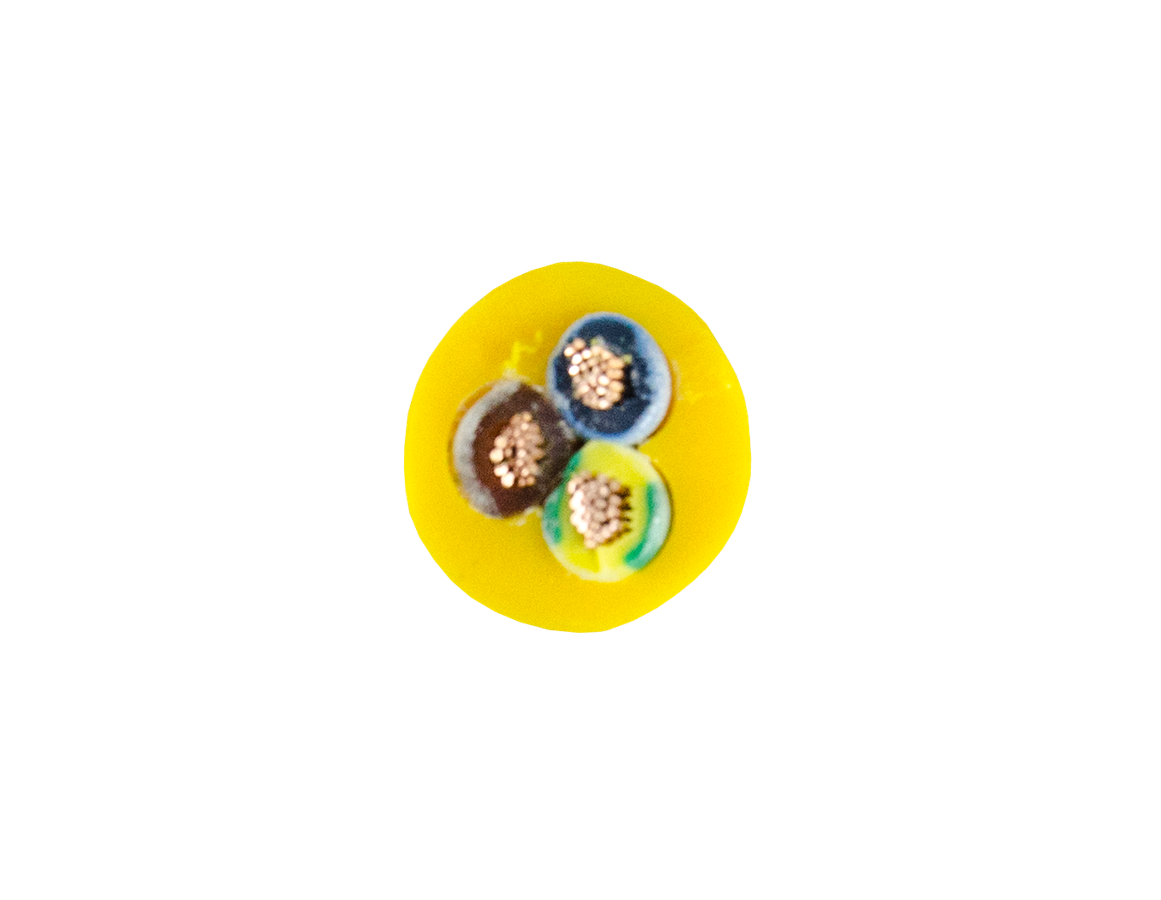

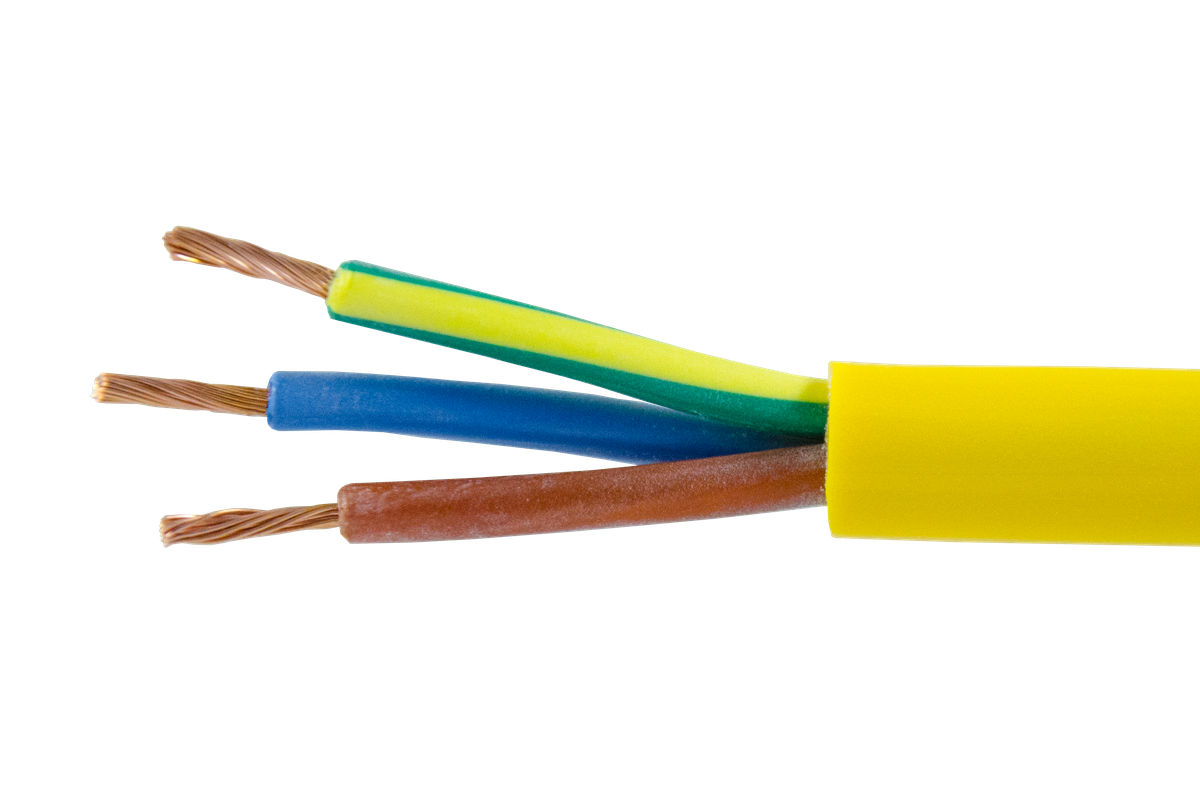

EUROFLEX HAR-SEV - H07 BQ-F
3x1.5mm², yellow RAL 1021, external-Ø 9.2mm
tinned wires
Technical data
- Cross-section x mm²
- 3 x 1.5
- Cable
- Euroflex
- Colour
- yellow
- External diameter
- 9.2 mm
- Voltage
- 450V / 750V
- Code HD 308 S2
- gn/ge, bl, br
- Strand structure (quantity x mm)
- 28 x 0.253
- Bending radius
- 10xD (D=Ø)
- Testing voltage
- 2'000V - 2'500V / 50Hz
- Weight kg/100m
- 10.7 kg
- Temperature range
- -40°C bis +85°C
- Cores/coat
- Cu-flex (HD 383 Kl. 5), EPR Gummi/PUR
