Item No: 840891

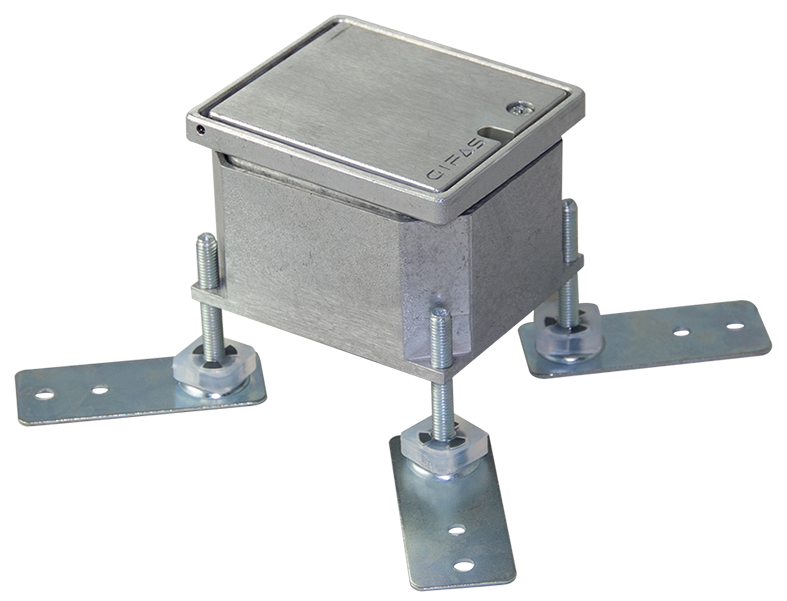

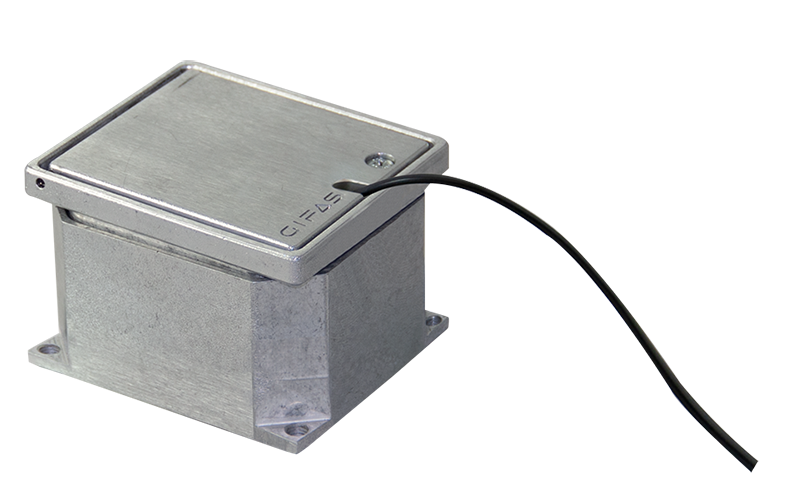

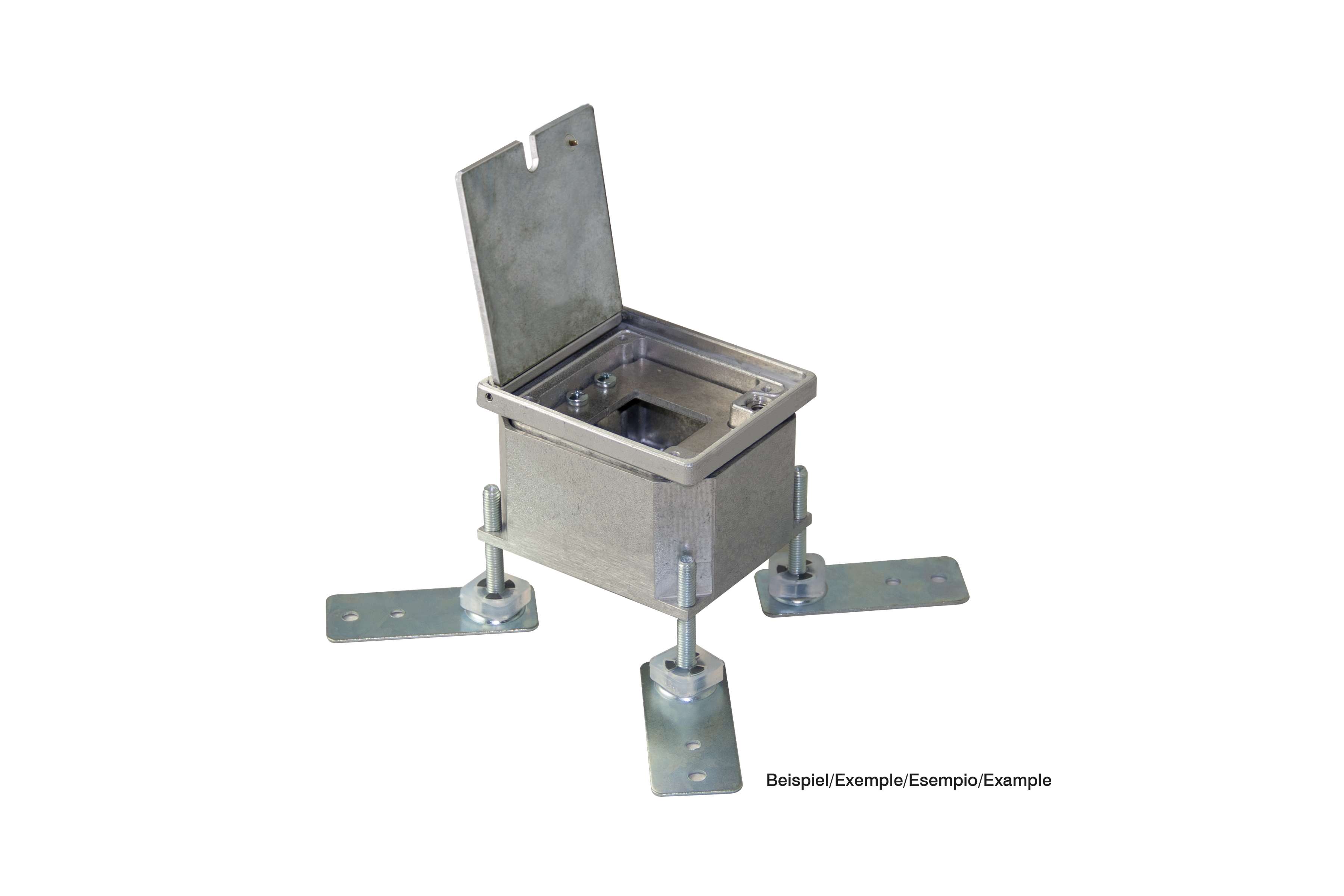

FONTO 2005 floor socket outlet

with hinged cover, without equipment

Technical data

Output: ohne Bestückung
Installation depth (delivery condition): ~75mm
Levelling capability: 72-230mm
Width: 95 mm
Height: 110 mm
Material: aluminium natur grounded
Load capability: 2t (20kN)
Cover: Hinged cover
Cable outlet: yes
Retractable: no
Fillable cover: no
IP closed: IP20
IP plugged in: IP20
Can be used in: indoor area
Characteristics: level-adjustable frame (+/–3 mm) in the offset position for simple
adjustment to the finished floor level
flush mounted floor socket with hinged cover
incl. 1×cable outlet
for 1x insert 45x45x4mm
(e.g. T23, Schuko, RJ45, TV, HDMI, USB etc.)
suitable for drive-over in closed mode
2x centre punch marks for additional holes in the bottom of the
housing
not suitable for sockets according to British standard!
