Item No: 840764

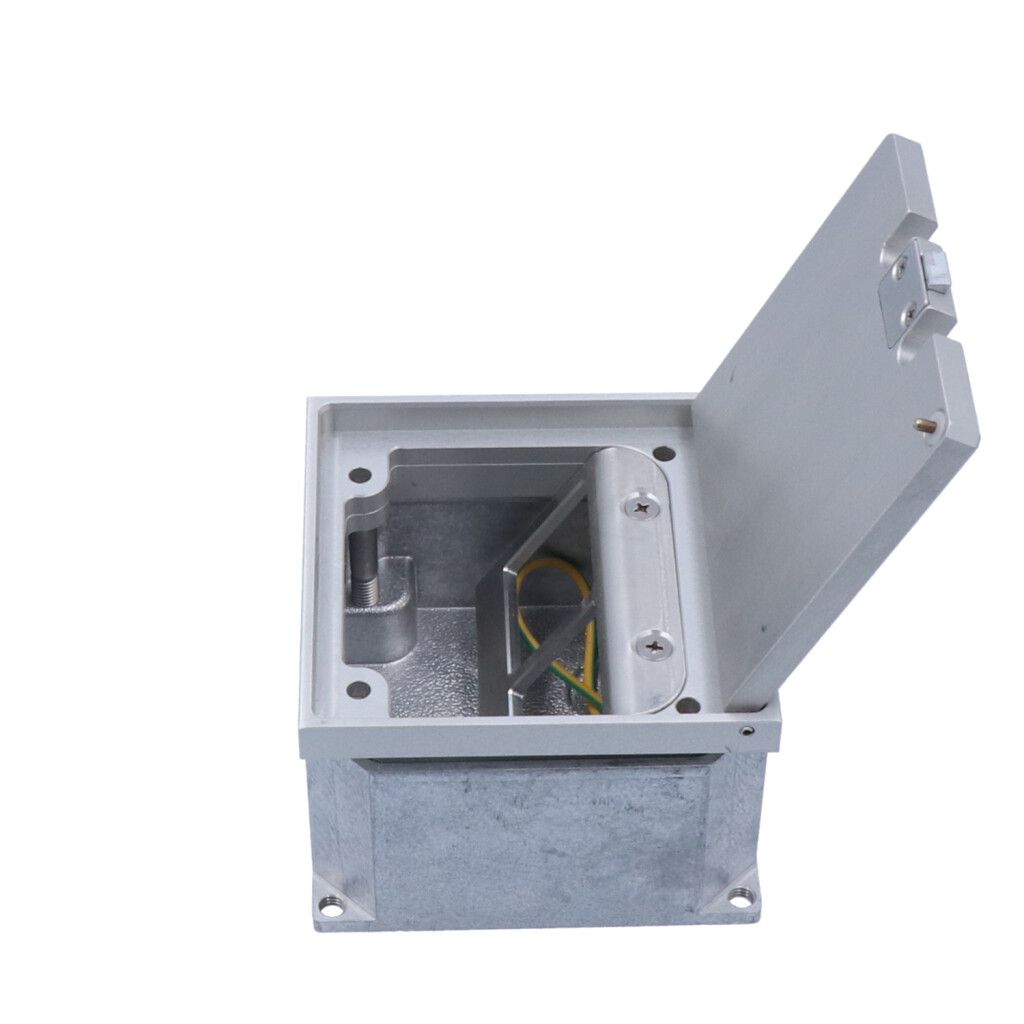

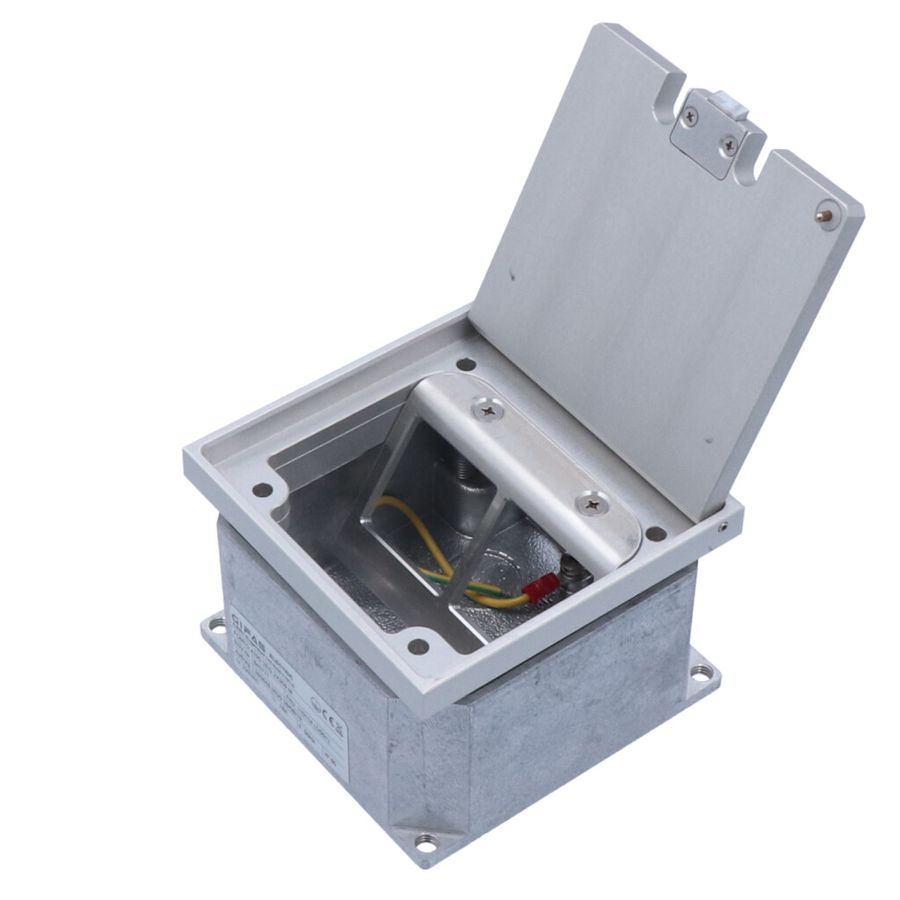

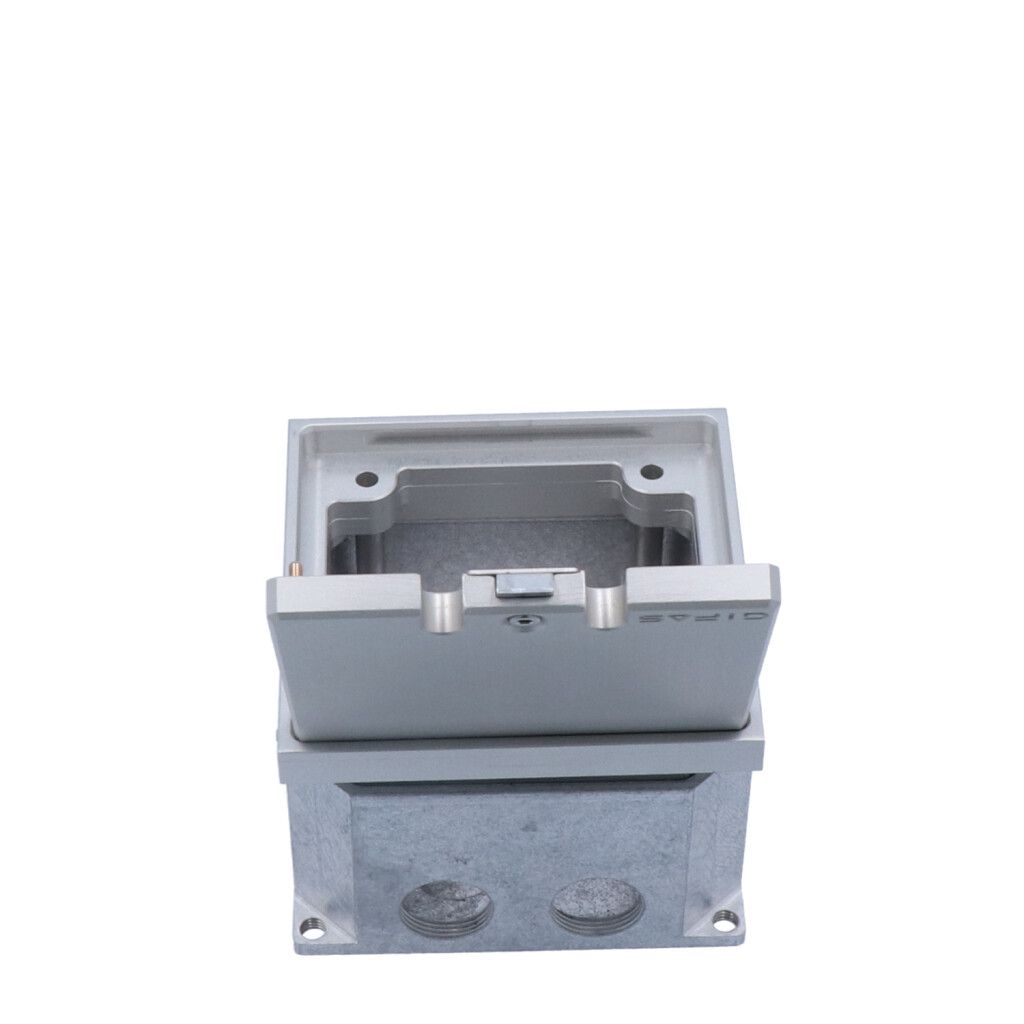

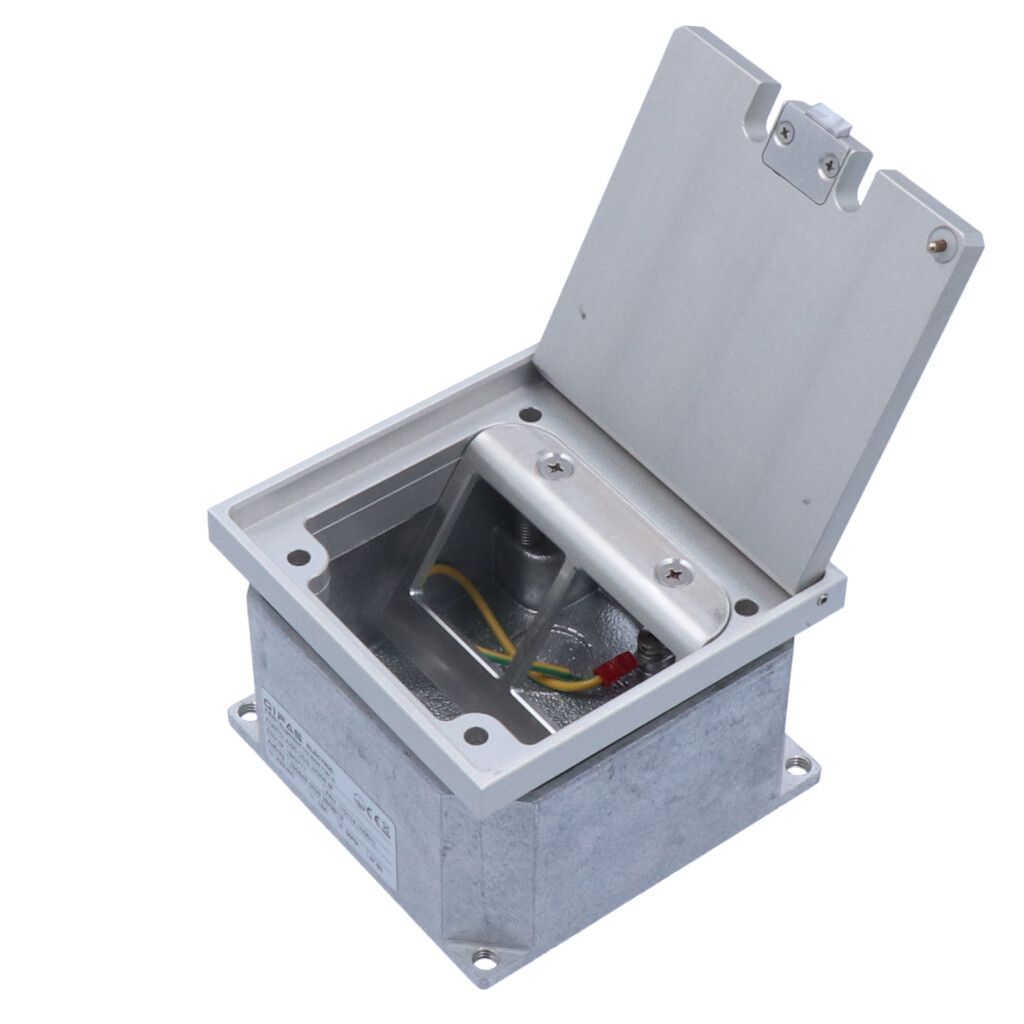

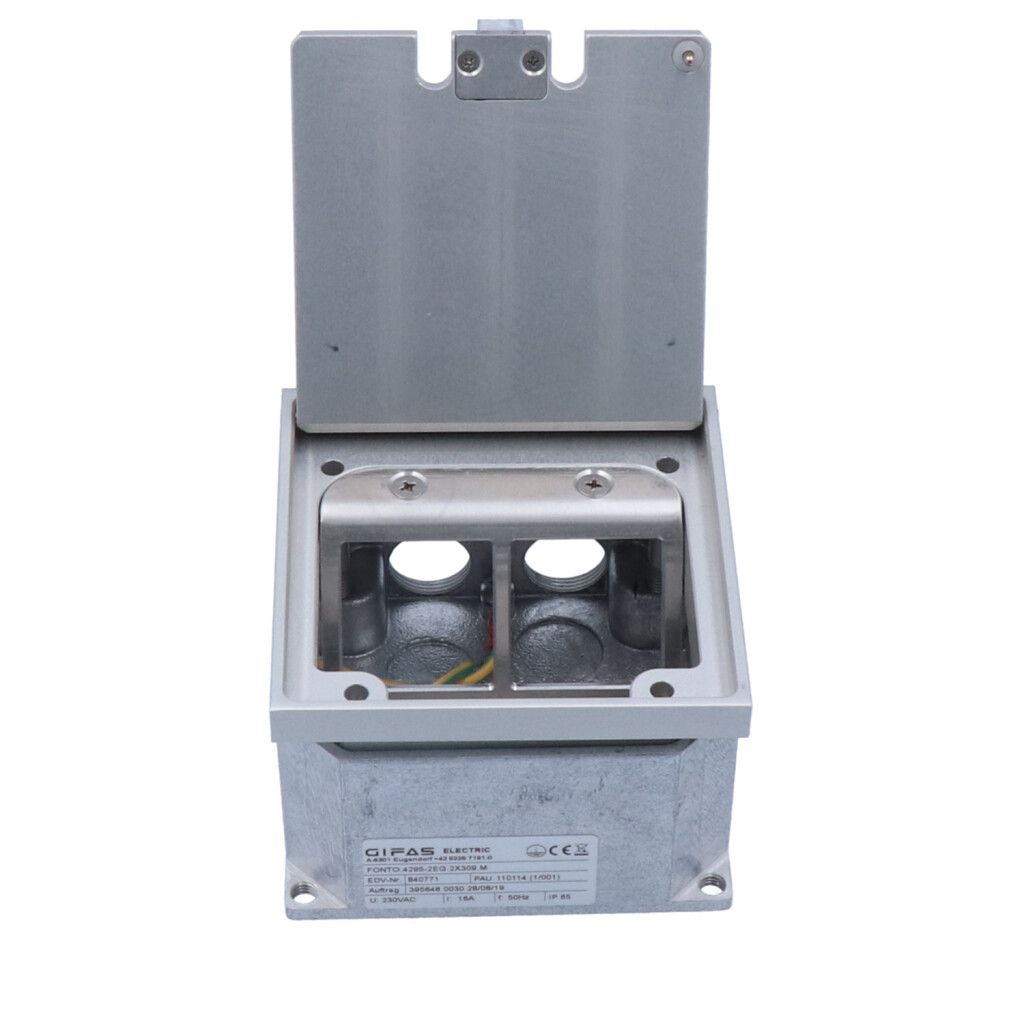

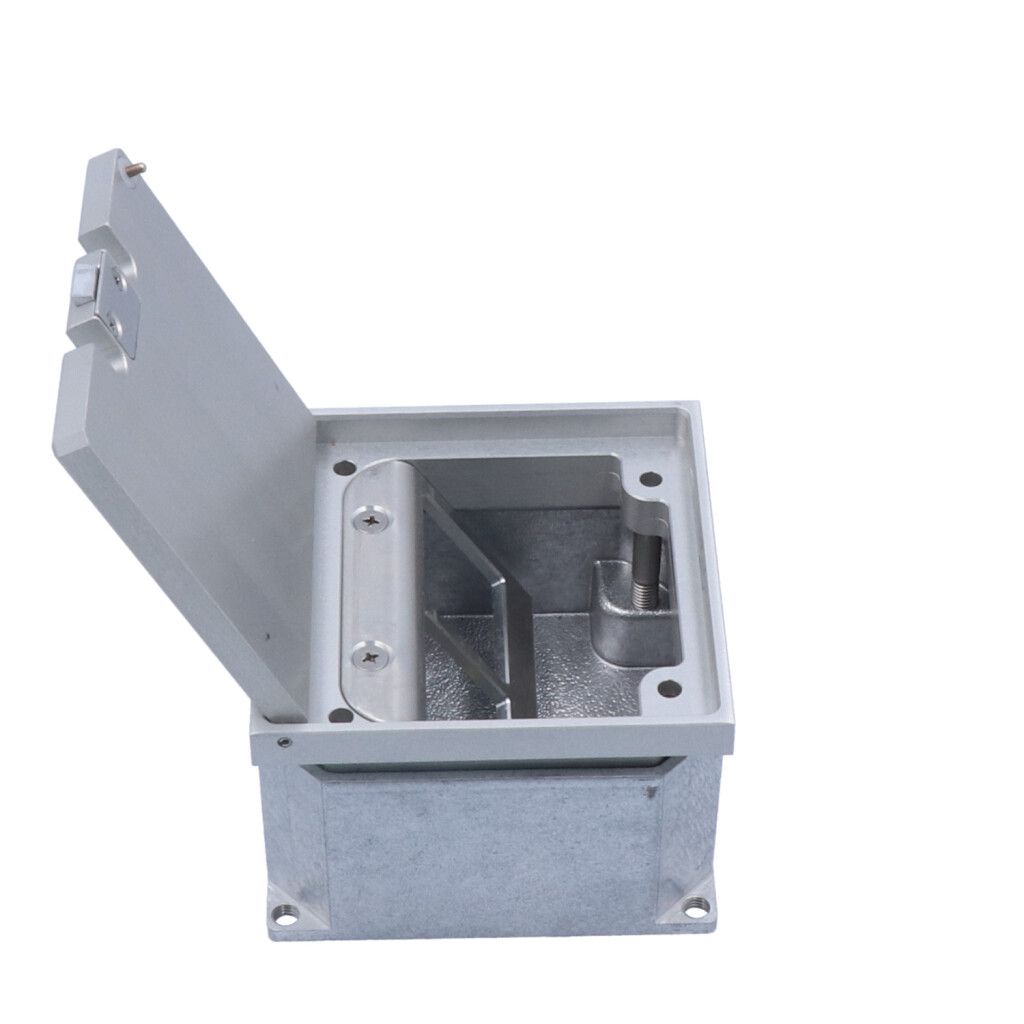

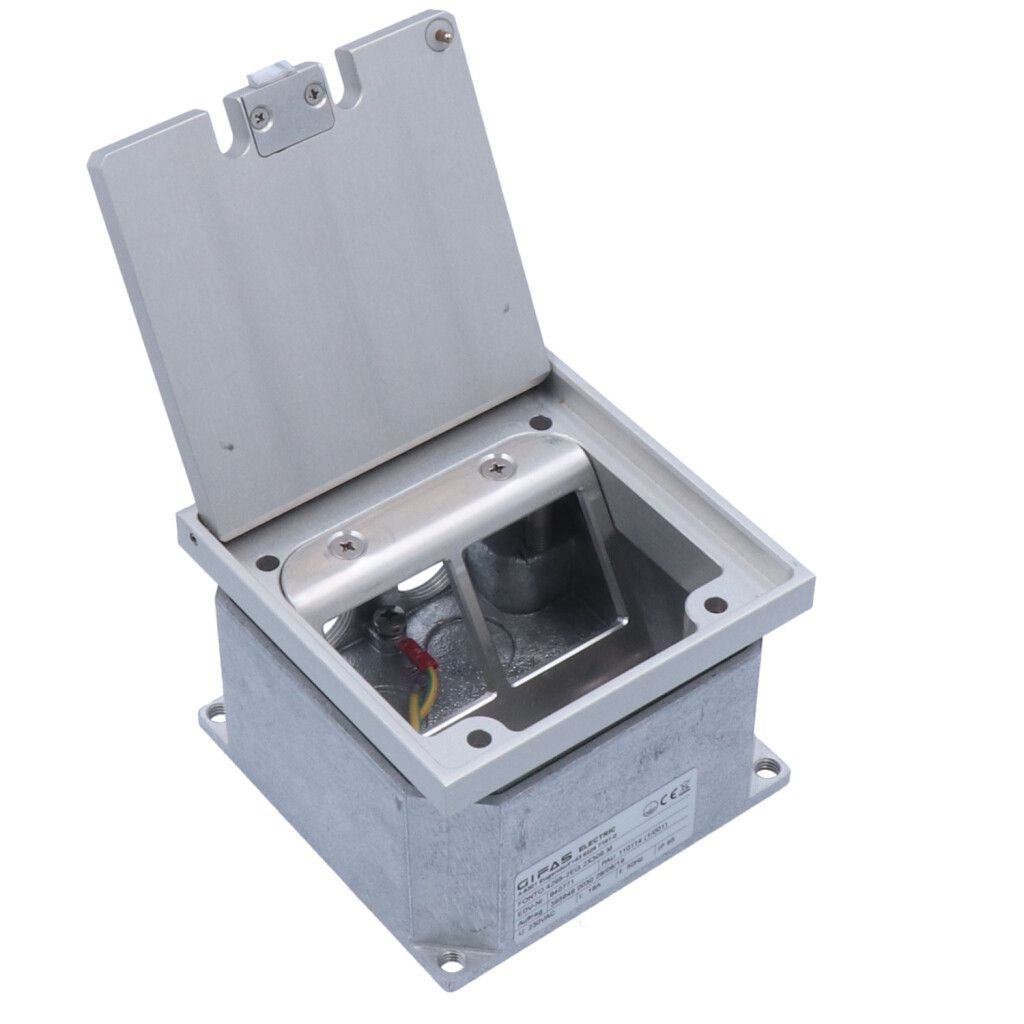

FONTO 4295 floor socket outlet

with hinged cover, without equipment

Technical data

Output: ohne Bestückung
Installation depth (delivery condition): ~83mm
Levelling capability: 77-240mm
Width: 119 mm
Height: 119 mm
Material: anodised aluminium
Load capability: 2t (20kN)
Cover: Hinged cover
Cable outlet: yes
Retractable: no
Fillable cover: no
IP closed: IP20
IP plugged in: IP20
Can be used in: indoor area
Characteristics: level-adjustable frame (+/–6mm) in the offset position for simple
adjustment to the finished floor level
for 2x mounting socket insert 45x45x4mm
(e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.)
protective cardboard cover to prevent damage during the construction
phase (integrated in the packaging)
2x centre punch marks for additional holes in the bottom of the

Item No: 154104

for floor socket outlet FONTO/MASSO

Item No: 840768

floor socket outlet FONTO/MASSO

Item No: 247529

for British Standard flush-mounted socket outlet
