Item No: 840983

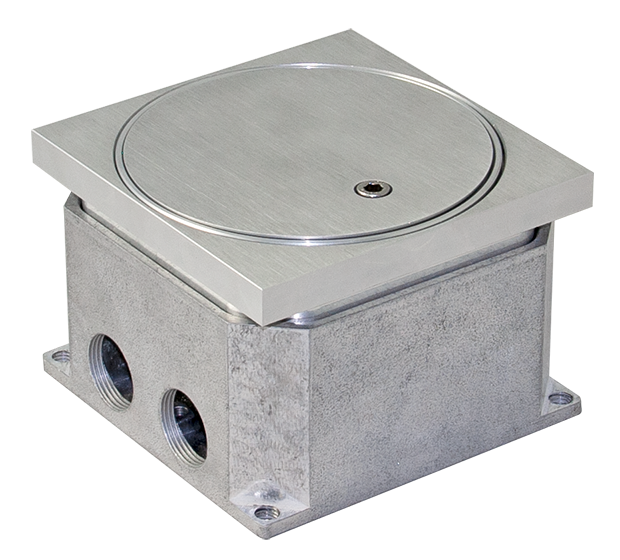

FONTO 4970W floor socket outlet

with screwable lid and cable outlet, without equipment

Technical data

Output: ohne Bestückung
Installation depth (delivery condition): ~83mm
Levelling capability: 77-240mm
Width: 119 mm
Height: 119 mm
Material: anodised aluminium
Load capability: 2t (20kN)

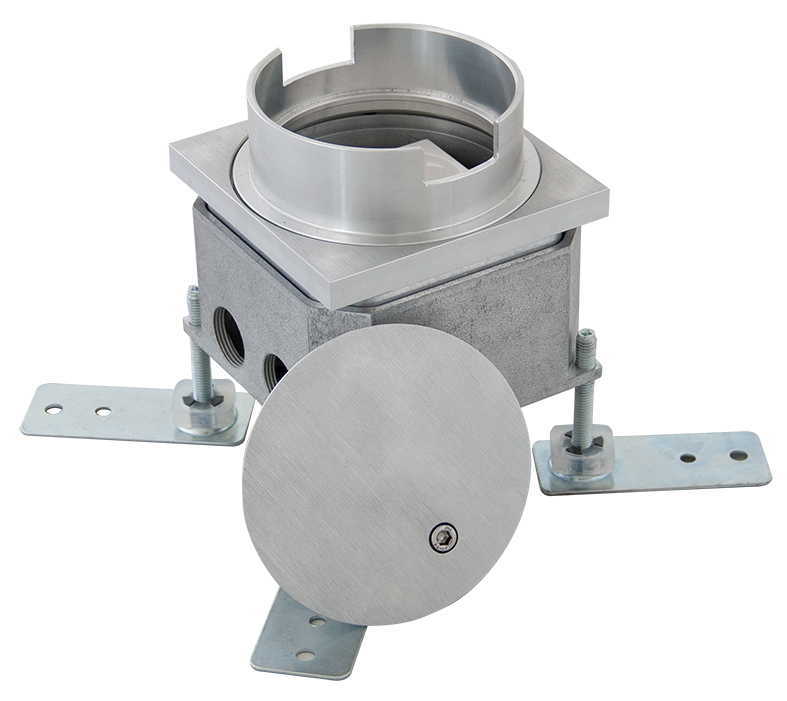

Cover: Screw cap with water protection pipe
Cable outlet: yes
Retractable: yes
Fillable cover: no
IP closed: IP67
IP plugged in: IP67 -18mm
Can be used in: indoor area
Characteristics: level-adjustable frame (+/–6mm) in the offset position for simple
adjustment to the finished floor level
for 1x insert 45x45x4mm and 1x insert 22.5x45x4mm
(e.g. Schuko, RJ45, etc.)
protective cardboard cover to prevent damage during the construction
phase (integrated in the packaging)
suitable for stand-on in plugged mode
2x centre punch marks for additional holes in the bottom of the housing
