Item No: 840963

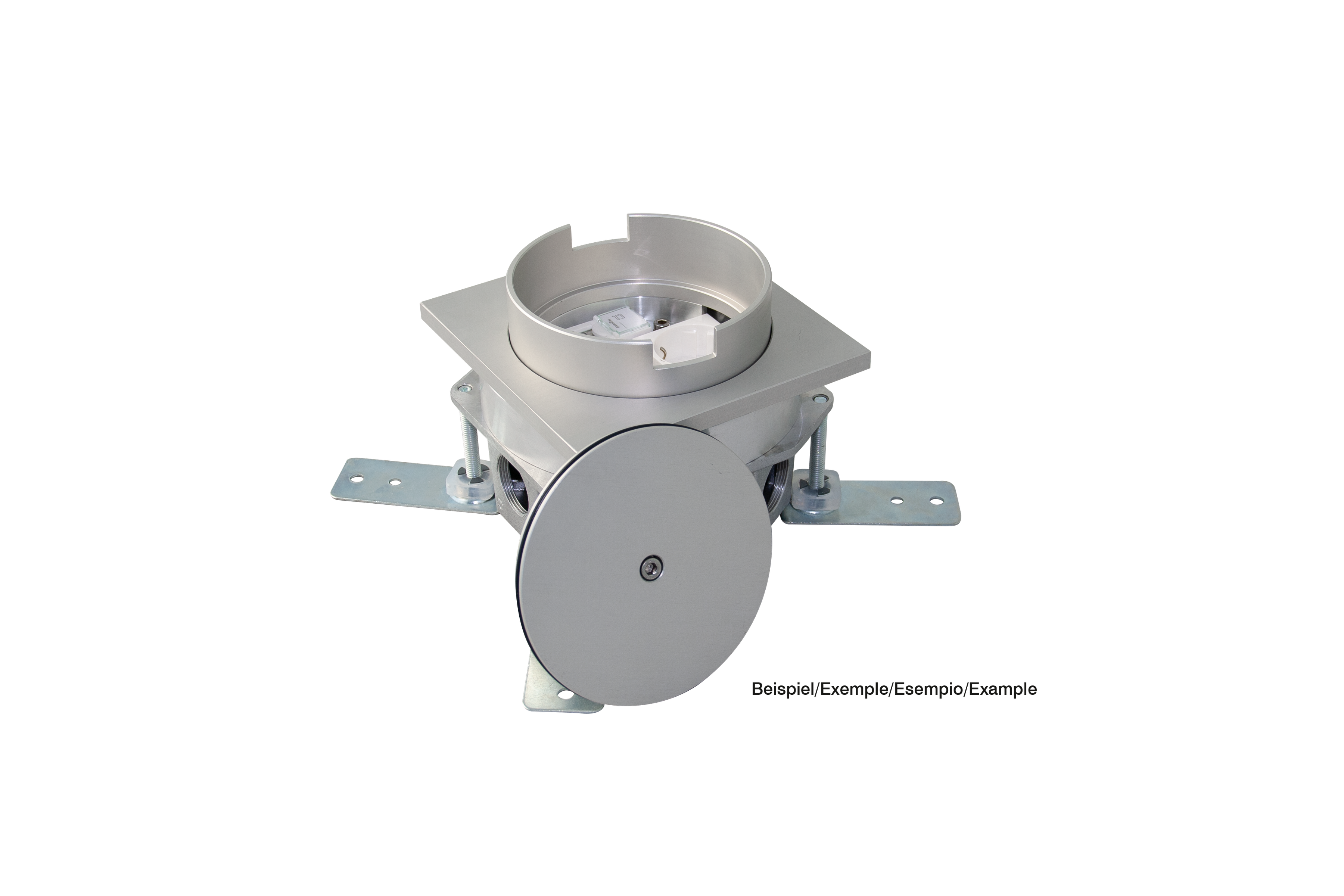

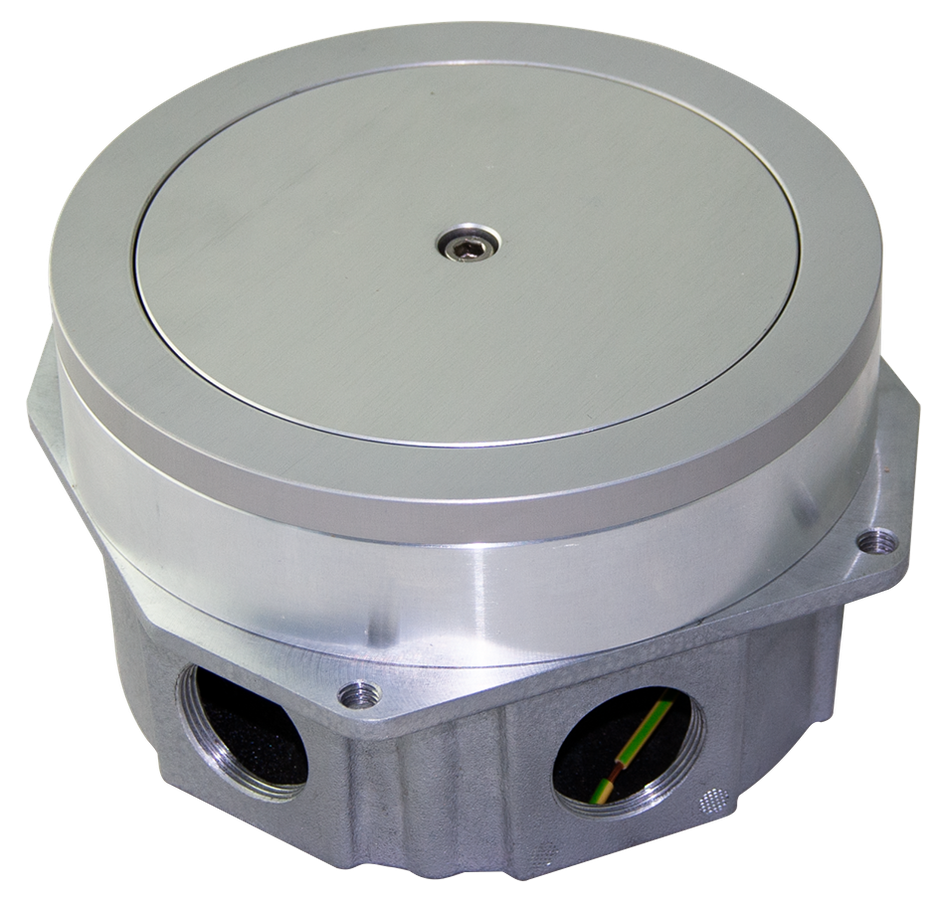

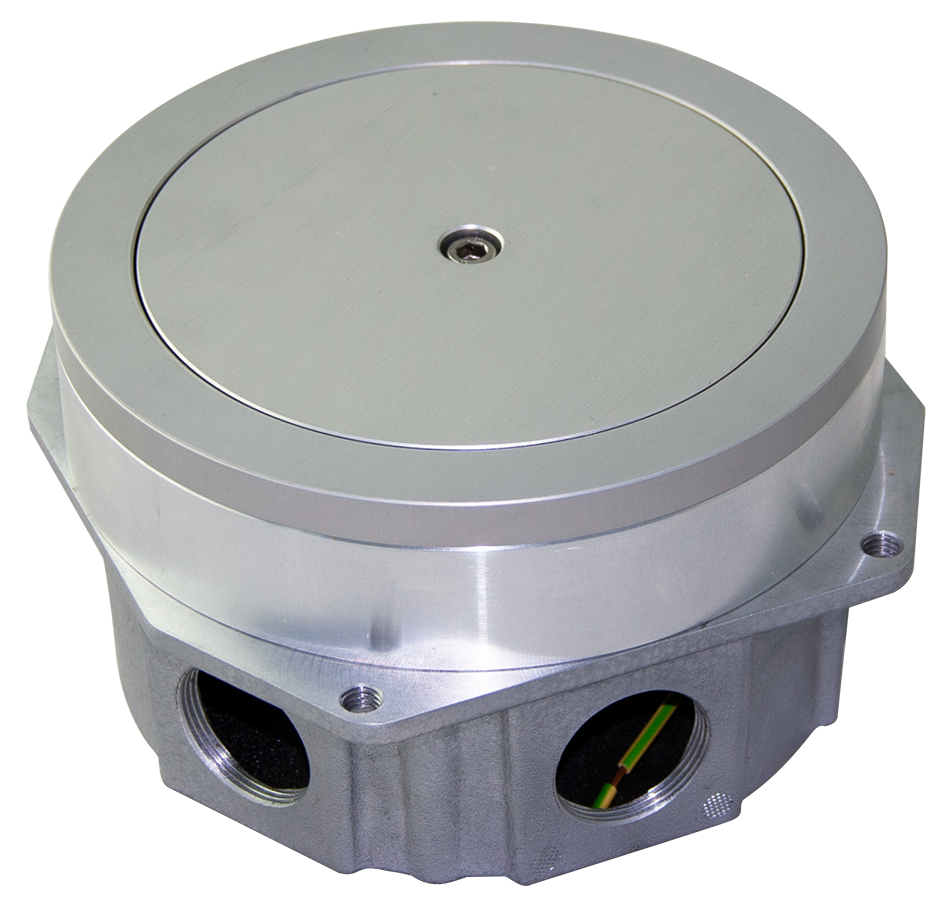

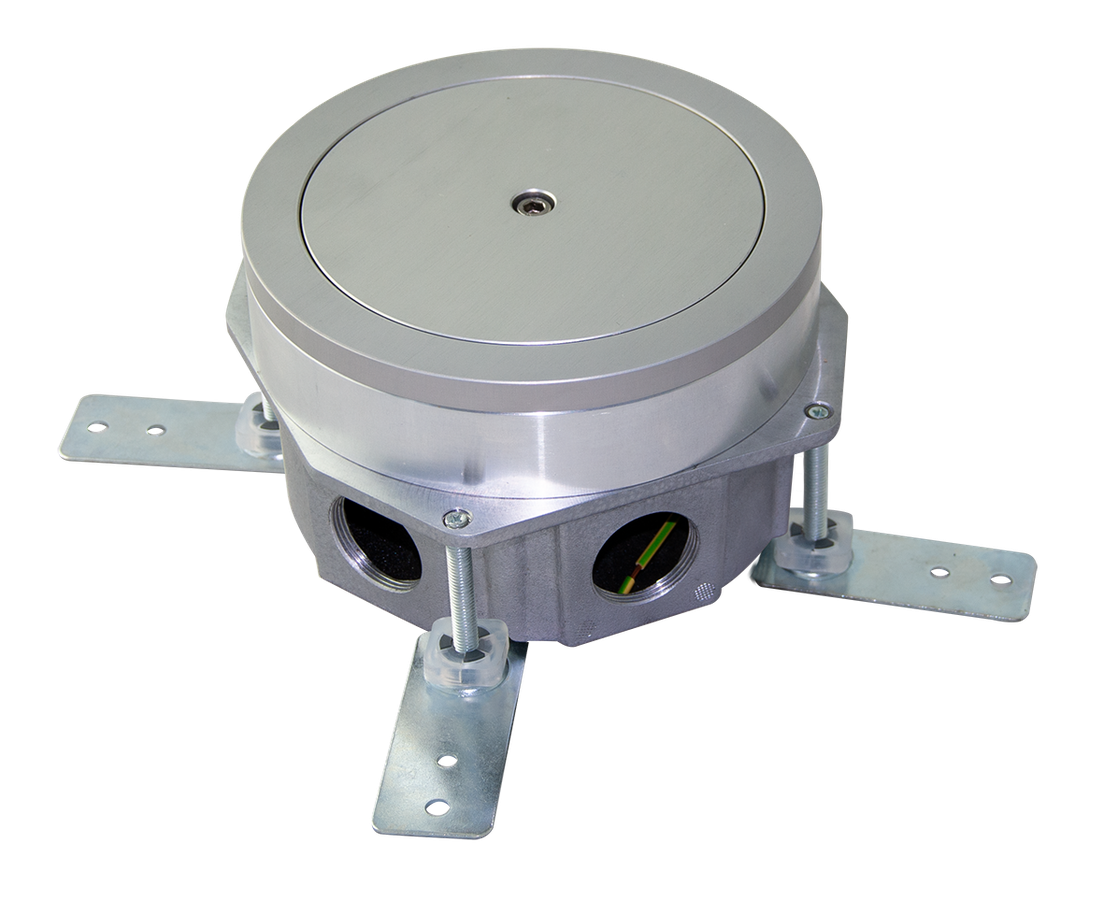

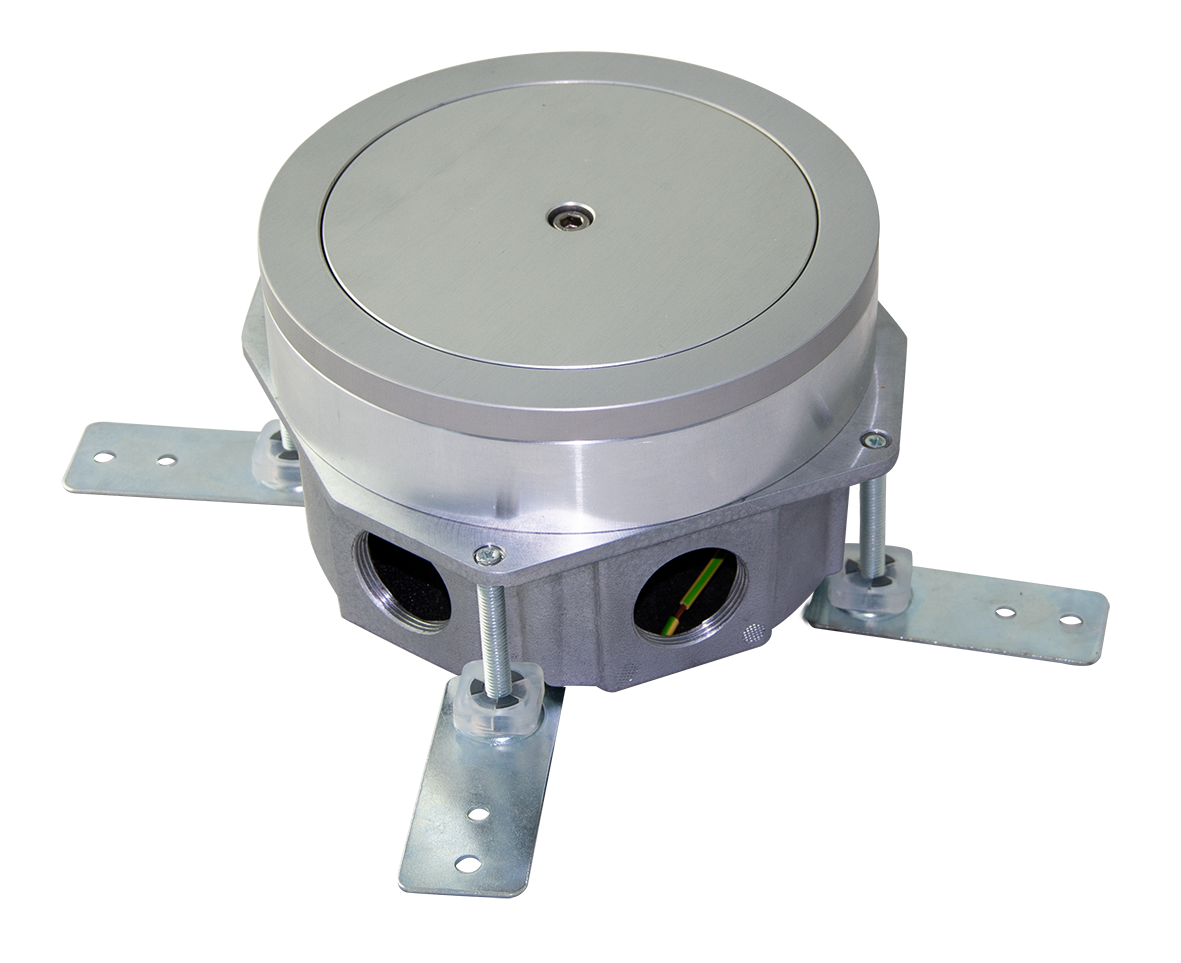

FONTO 5000 floor socket outlet

with screwable lid and cable outlet, without equipment

Technical data

Installation depth (delivery condition): ~95mm
Levelling capability: 95-205mm
Width: 156 mm
Height: 156 mm
Material: anodised aluminium
Load capability: 4t (40kN)
Cover: Screw cap with water protection pipe
Cable outlet: yes
Retractable: yes
Fillable cover: no
IP closed: IP67
IP plugged in: IP67 -14mm
Can be used in: indoor area
Characteristics: flush mounted floor socket with water protection shroud (if unused,
embedded in the floor socket)
for 2x insert 45x45x4mm and 2x insert 22.5x45x4mm
(e.g. Schuko, RJ45, etc.)
water protection pipe sunk into the floor box when not being used
suitable for stand-on in plugged mode

Item No: 154104

for floor socket outlet FONTO/MASSO

Item No: 840768

floor socket outlet FONTO/MASSO
