Item No: 840845

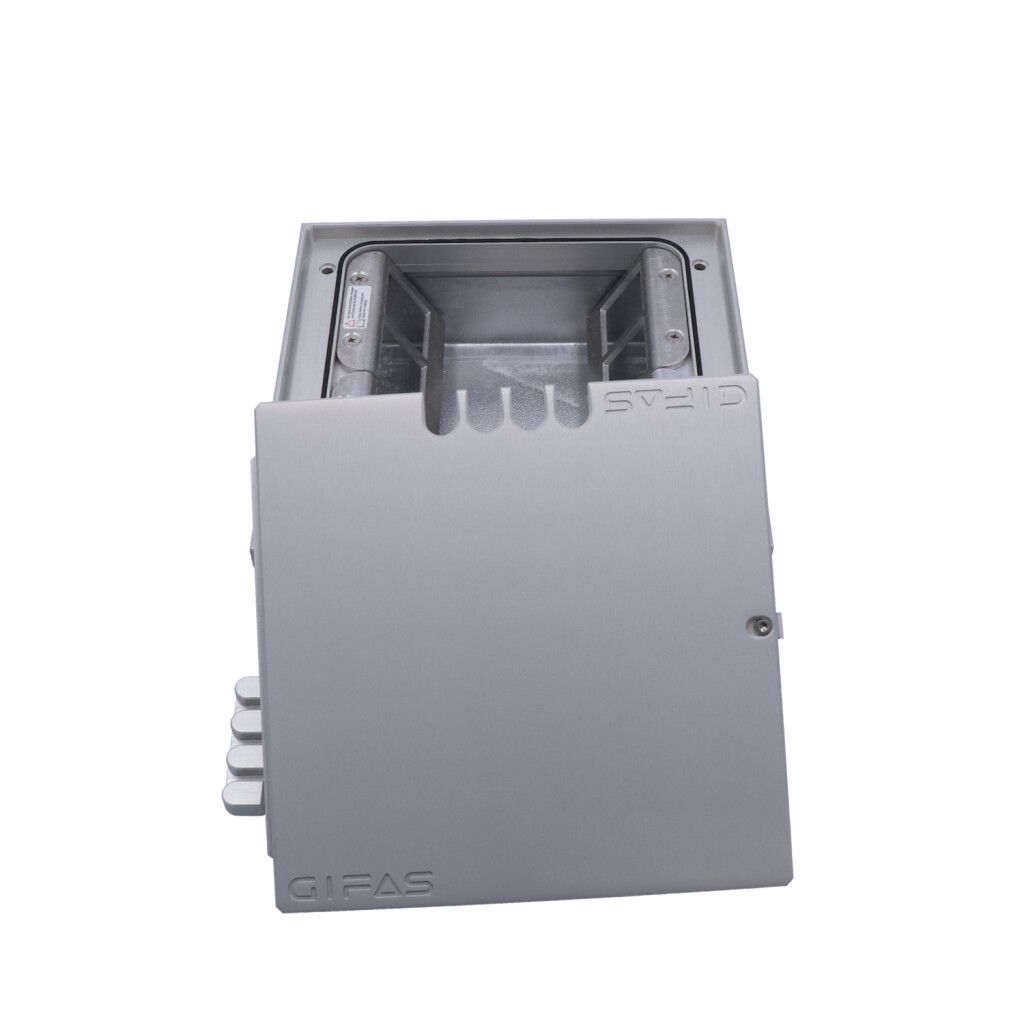

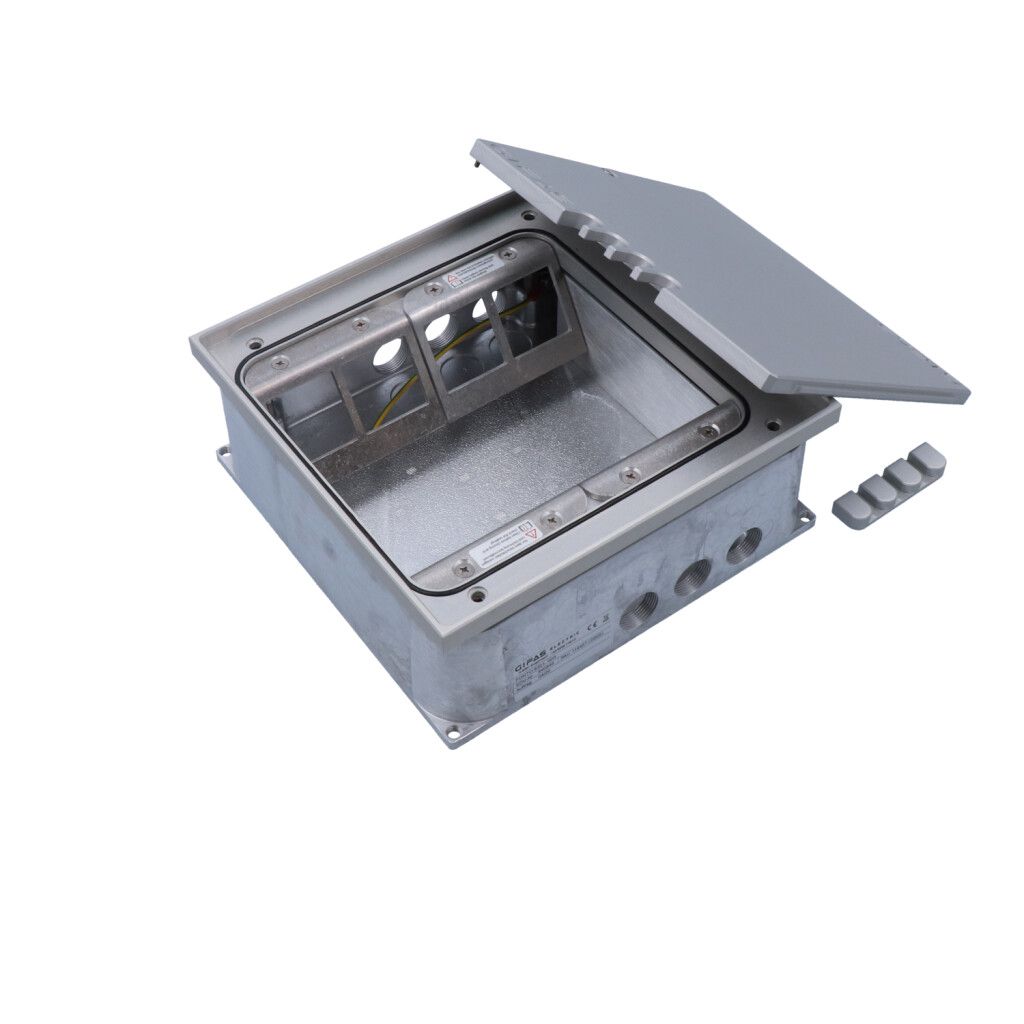

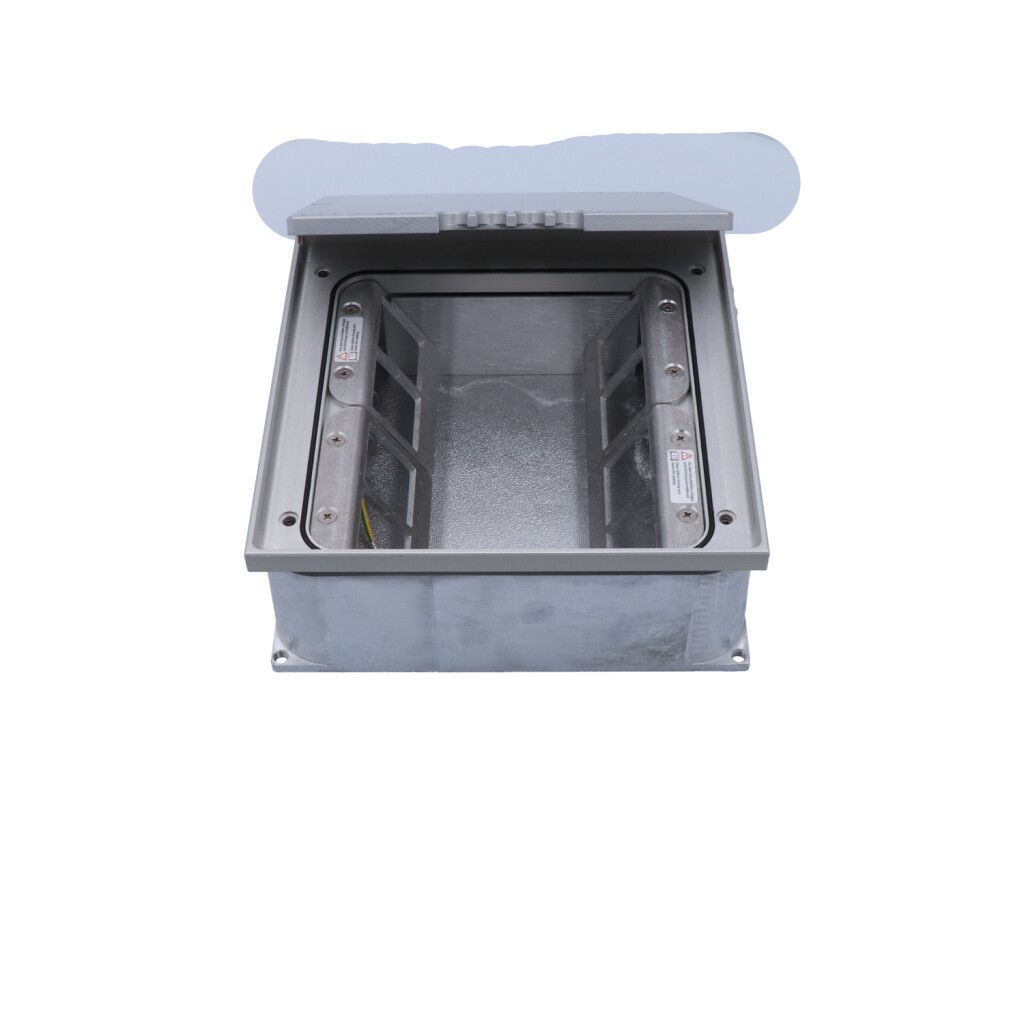

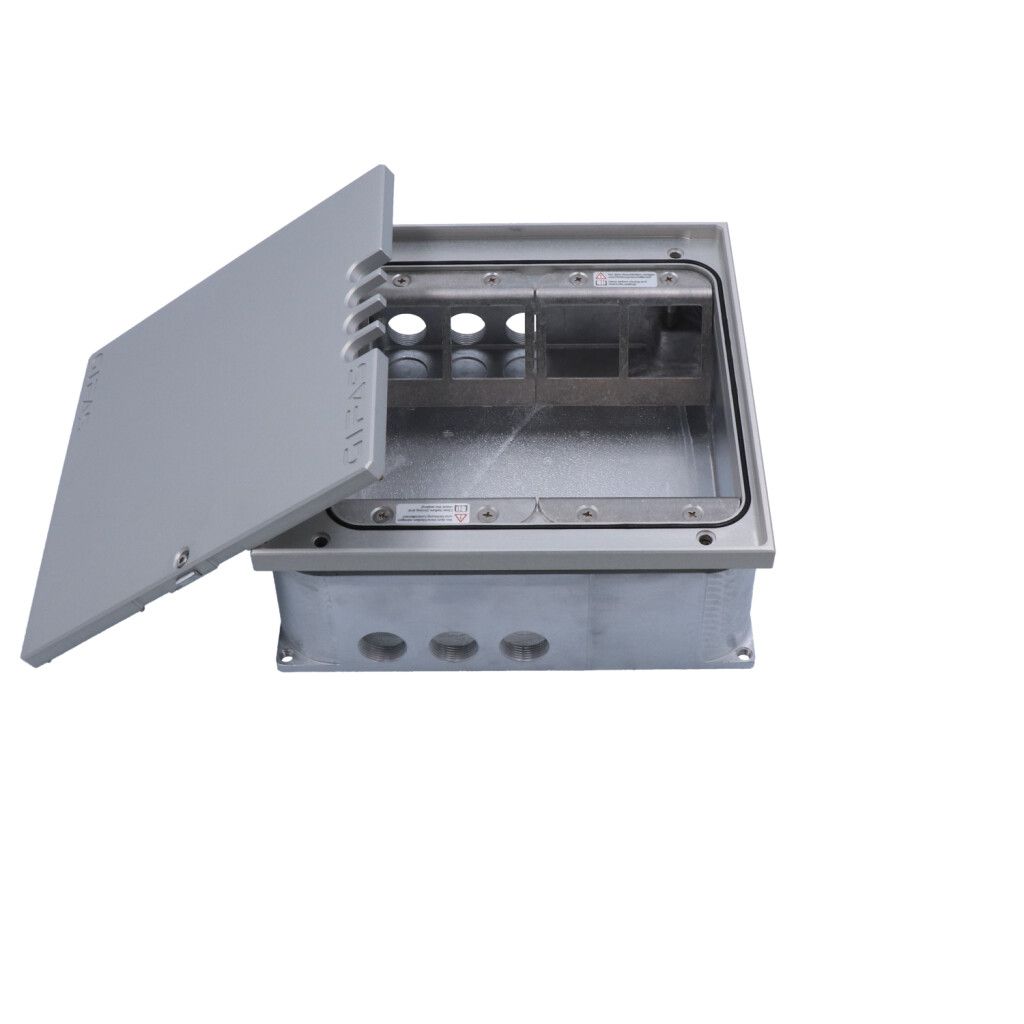

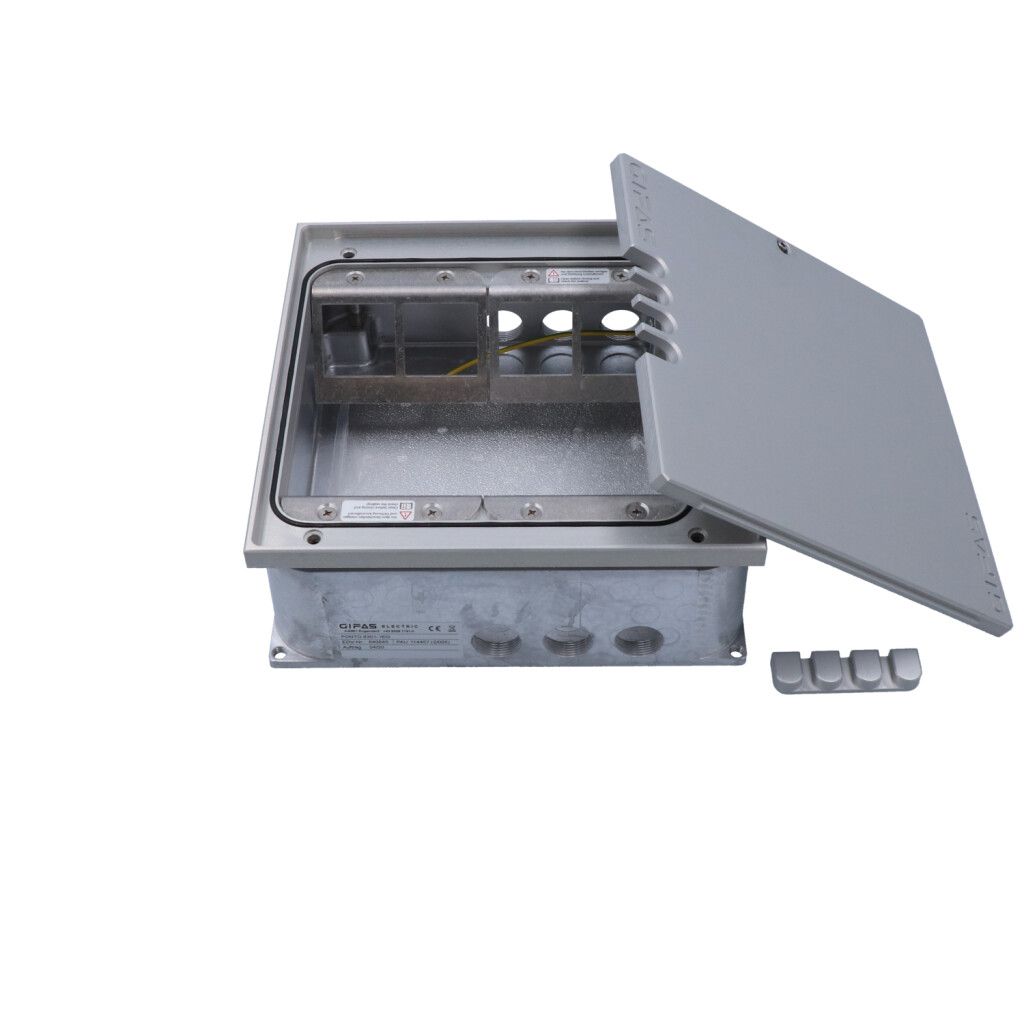

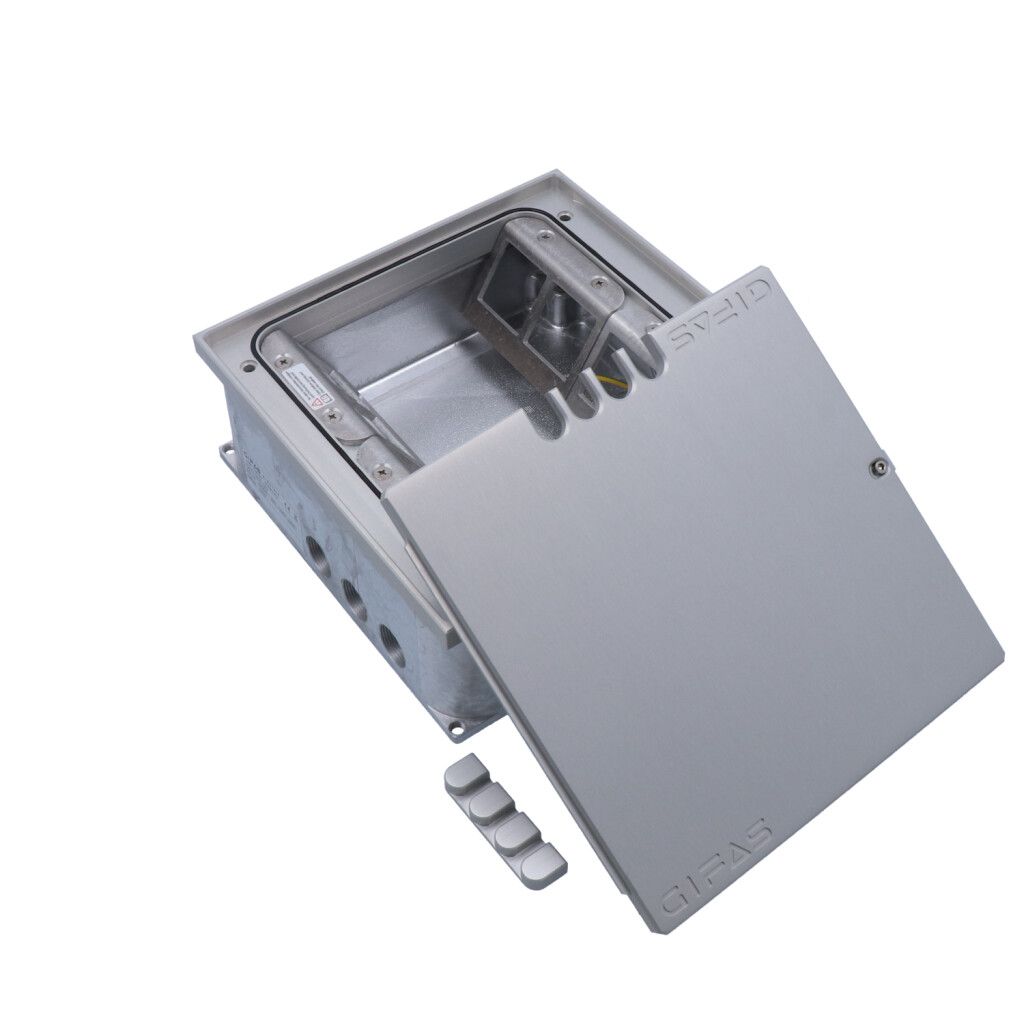

FONTO 8301 floor socket outlet

with cover and cable outlet, without equipment

Technical data

Output
ohne Bestückung
Installation depth (delivery condition)
~95mm
Levelling capability
90-250mm
Width
240 mm
Height
240 mm
Material
anodised aluminium
Load capability
2t (20kN)
Cover
removable

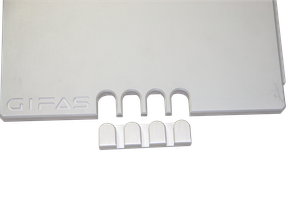

Cable outlet
yes
Retractable
no
Fillable cover
no
IP closed
IP65
IP plugged in
IP20
Can be used in
indoor area
Characteristics
  • Level-adjustable frame (+/- 5mm) in the offset position for simple adjustment to the finished floor level
  • for 8x mounting socket insert 45x45x4 mm (e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.)
  • 6x centre punch marks for additional holes in the bottom of the housing
  • suitable for drive-over in close mode
