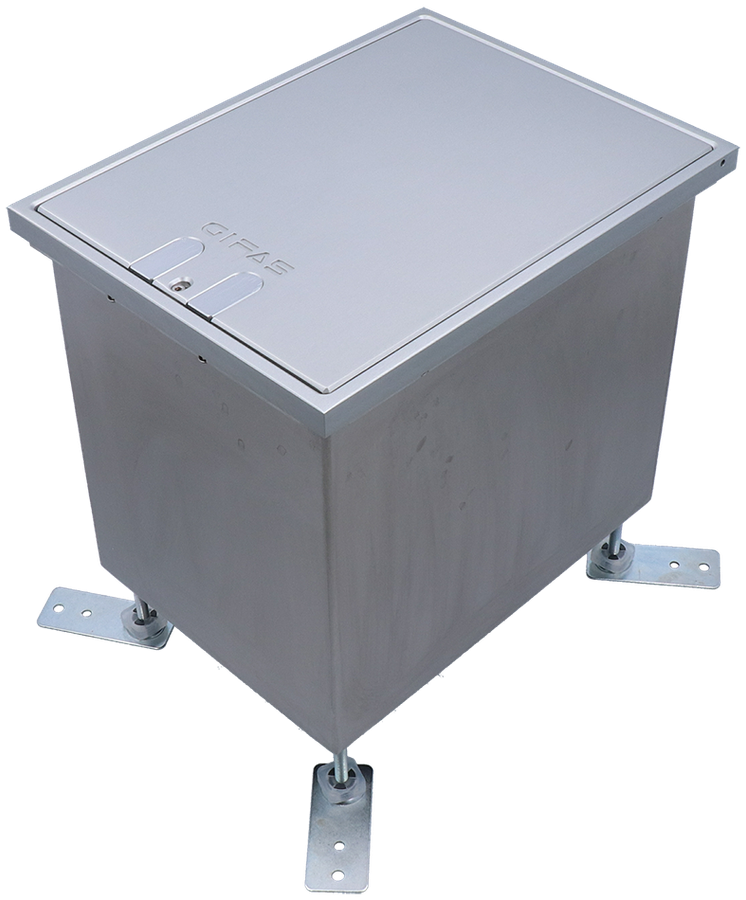

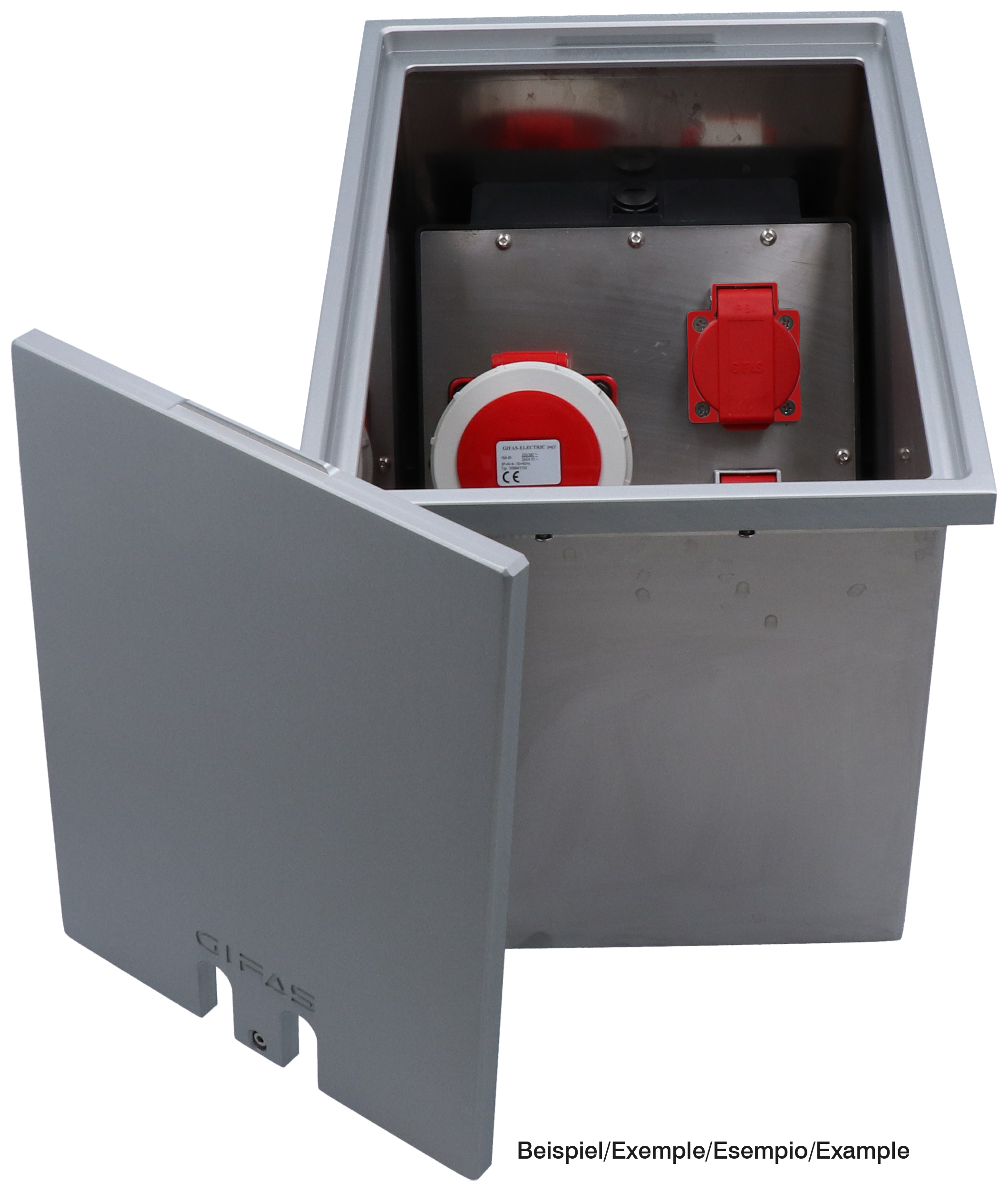

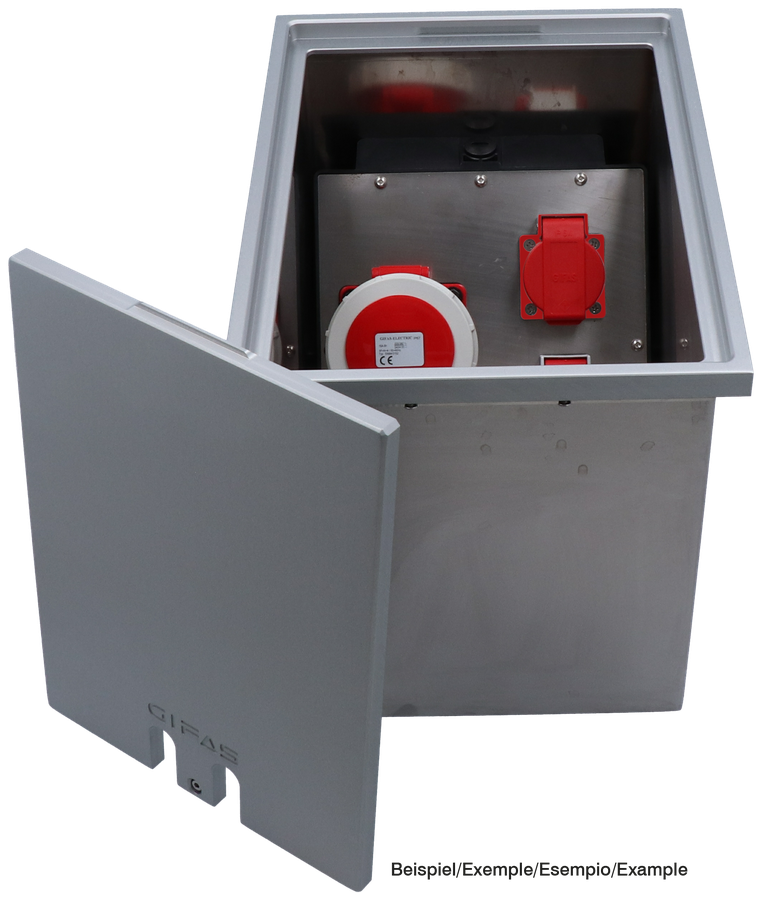

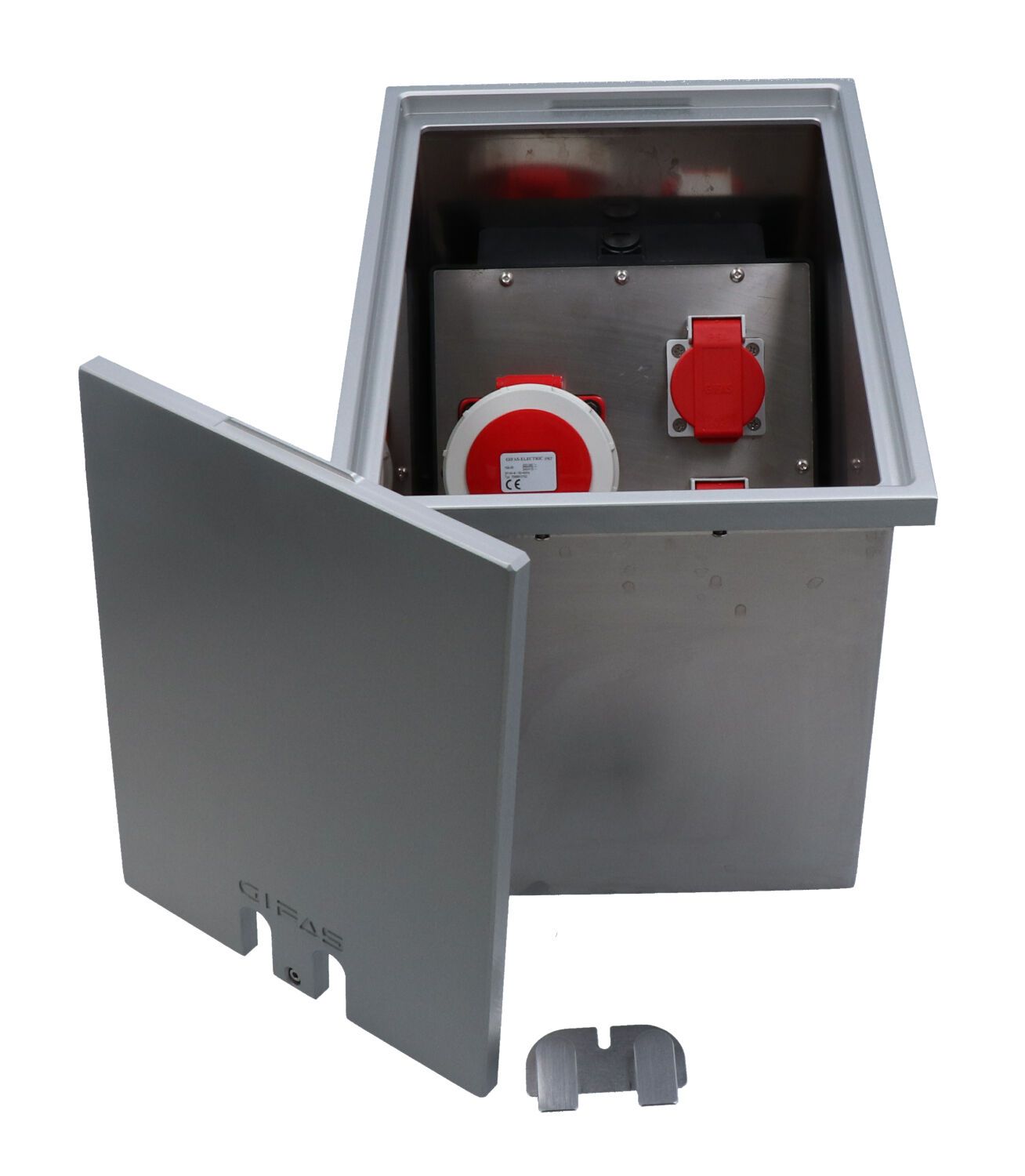

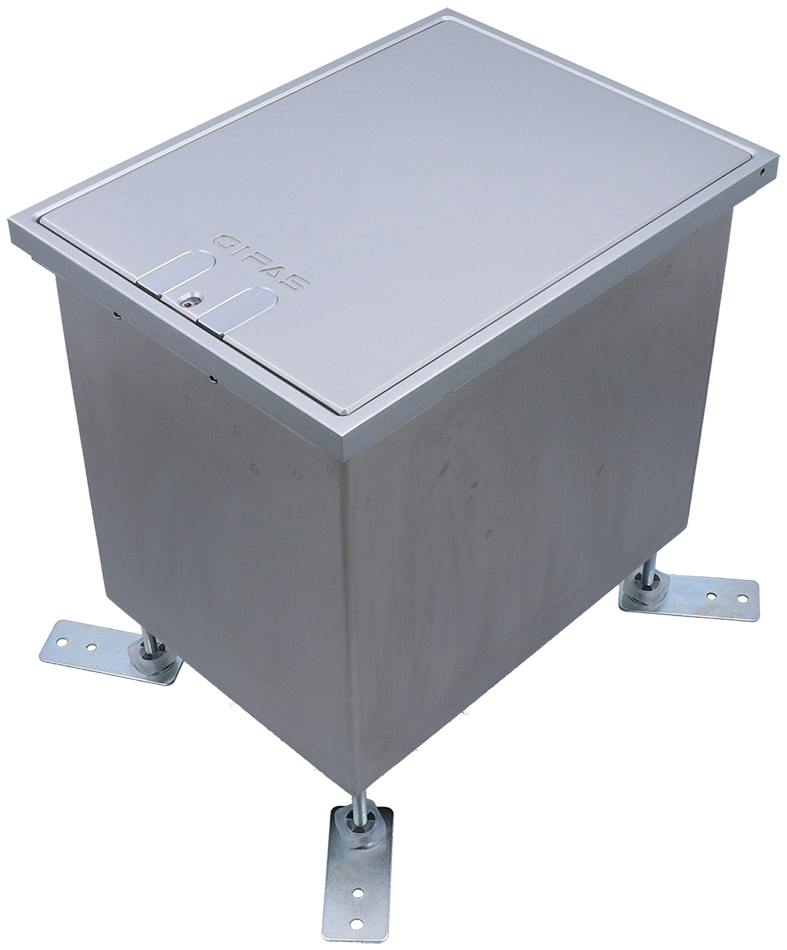

FONTO 9301 floor socket outlet

Technical data

Output plug

CEE 32/5

Output

1xCEE 32/5

Installation depth (delivery condition)

276.5mm

Levelling capability

276.5-336mm

Width

240 mm

Height

320 mm

Material

anodised aluminium

Load capability

5t (50kN)

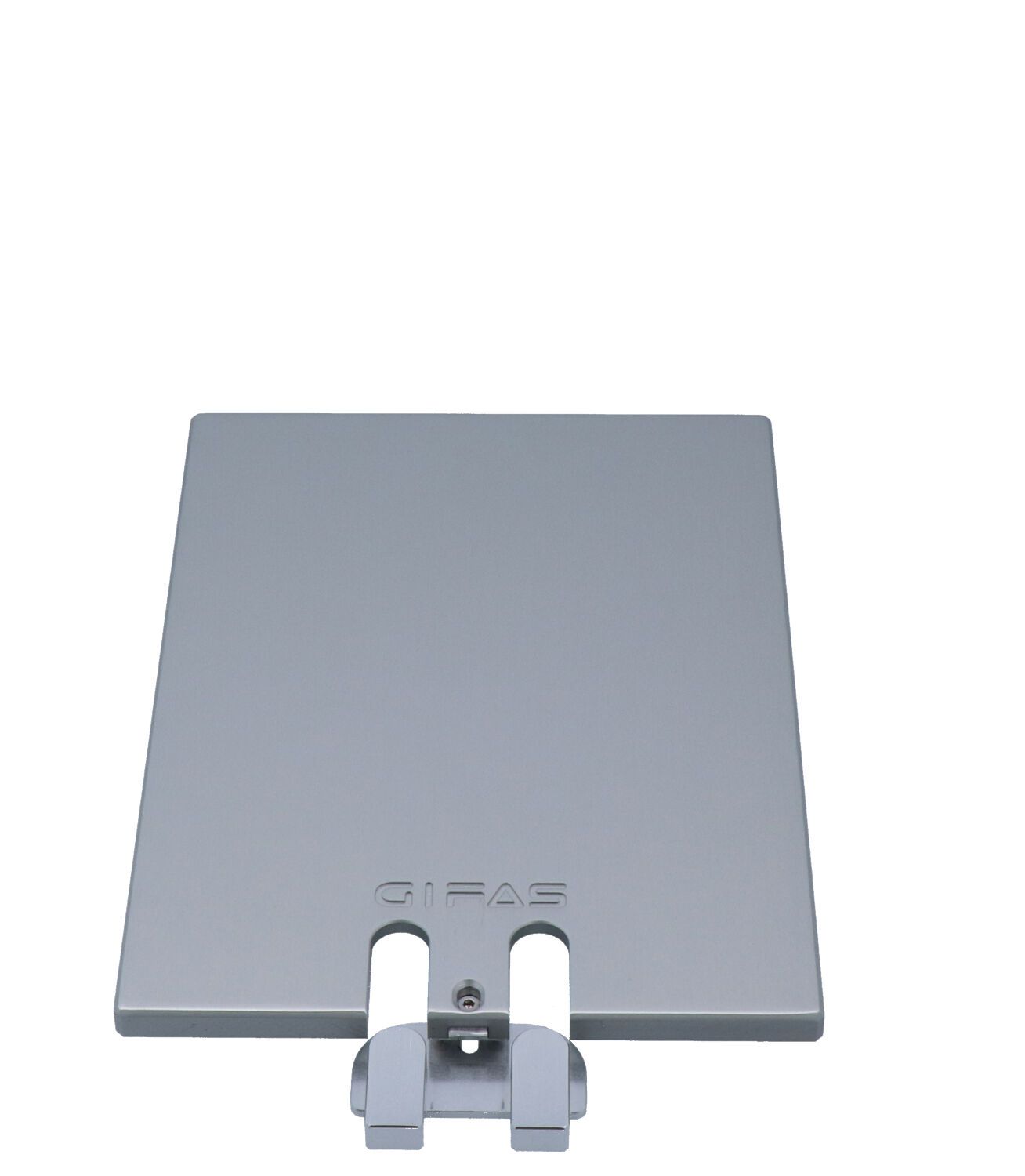

Cover

removable

Cable outlet

yes

Retractable

no

Fillable cover

no

IP closed

max. IP67

IP plugged in

IP55

Characteristics

• for use in indoor and outdoor areas
• suitable for drive-over when closed
• lid with square lock available on request
• connection box can be filled up with bluegel

Downloads

Dimensional drawing/Scheme

Accessories

Item No: 154104

Levelling feet with threaded pin M8x60mm

for floor socket outlet FONTO/MASSO

Item No: 840768

Threaded pin M8x160mm, for levelling feet

floor socket outlet FONTO/MASSO

Item No: 211636

FONTO 9301/9308 cover for cable outlet

Item No: 220847

FONTO Aussparungsbox in Polystyrol

Show all
