Item No: 010635

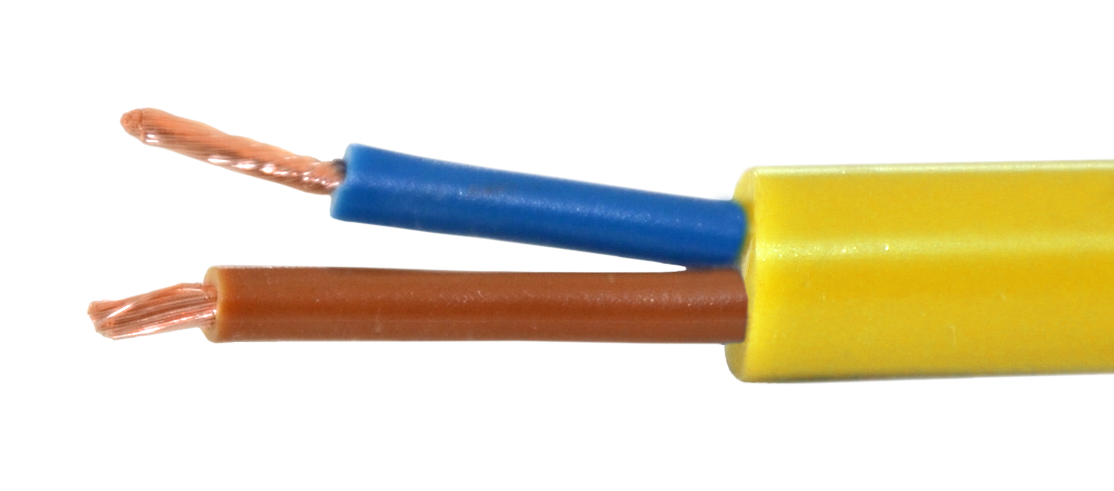

GIFAFLEX CH-N07V3V3-F reinforced

2x1.0mm², yellow RAL 1021, external-Ø 7.3mm

Technical data

Cross-section x mm²
2 x 1.0
Cable
Gifaflex
Colour
yellow
External diameter
7.3 mm
Voltage
450V / 750V
Code HD 308 S2
bl, br
Strand structure (quantity x mm)
32 x 0.20
Bending radius
10xD (D=Ø)
Testing voltage
2'000V - 3'000V / 50Hz
Weight kg/100m
6 kg
Temperature range
-25°C bis +70°C, ruhend bis -40°C
Cores/coat
Cu-flex (VDE 0295 Kl. 5), Gifaplast/Gifaplast (Spezialmischung)
