Item No: 010636

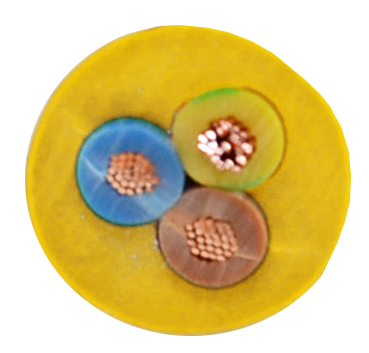

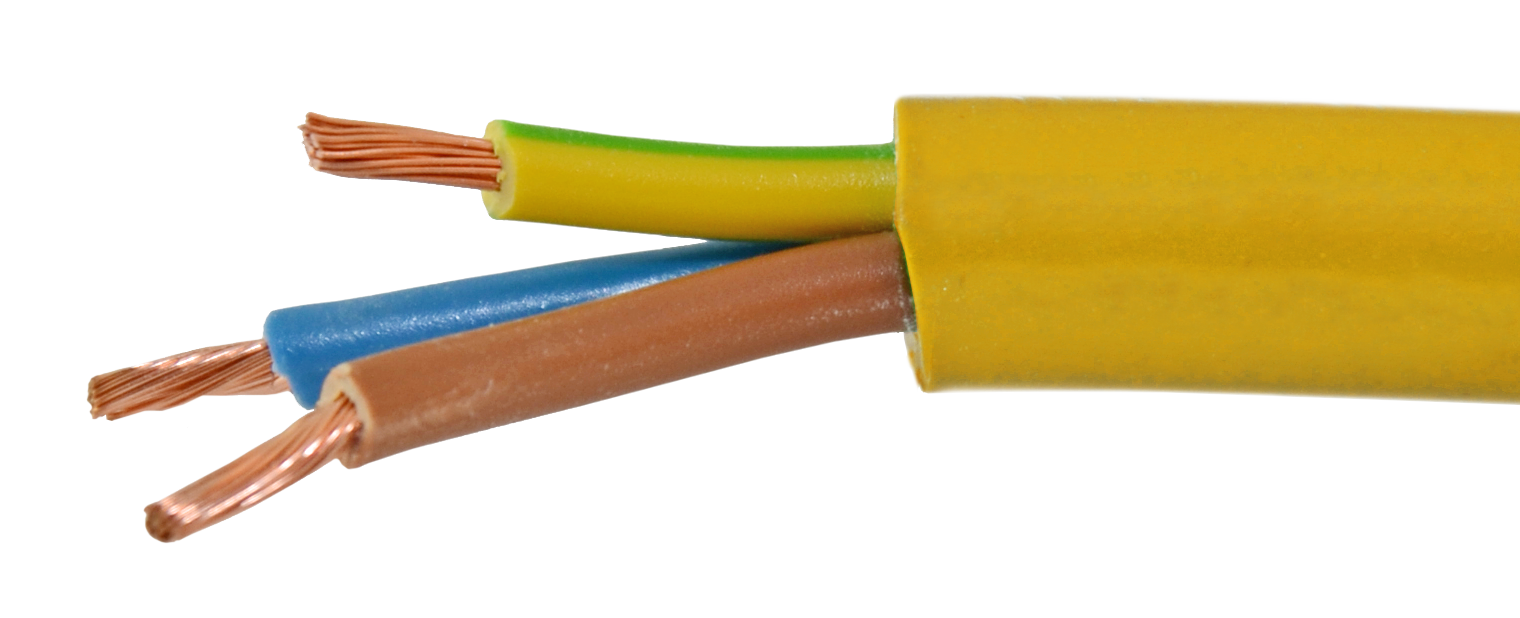

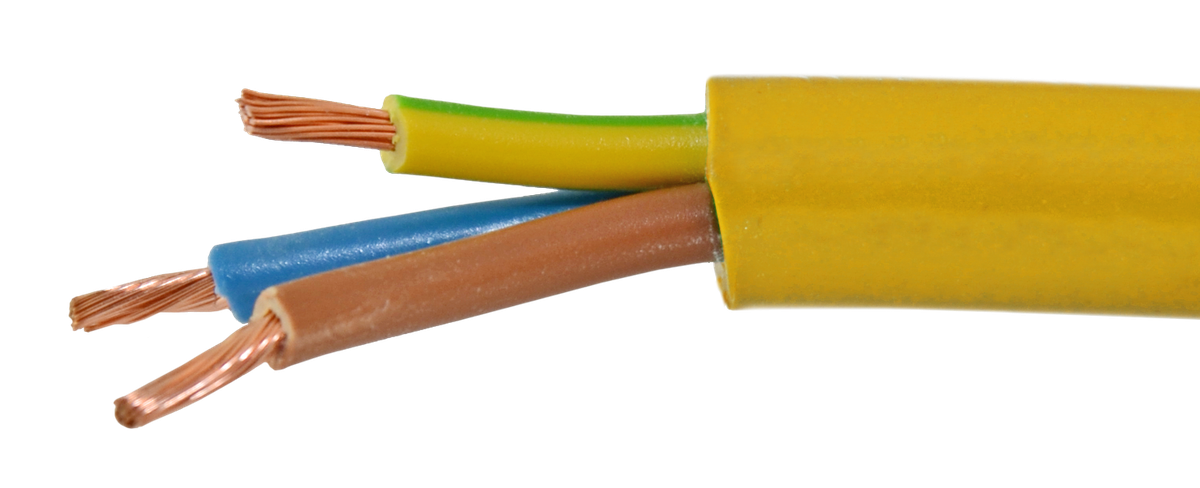

GIFAFLEX CH-N07V3V3-F reinforced

3x1.0mm², yellow RAL 1021, external-Ø 7.8mm

Technical data

Cross-section x mm²
3 x 1.0
Cable
Gifaflex
Colour
yellow
External diameter
7.8 mm
Voltage
450V / 750V
Code HD 308 S2
gn/ge, bl, br
Strand structure (quantity x mm)
32 x 0.20
Bending radius
10xD (D=Ø)
Testing voltage
2'000V - 3'000V / 50Hz
Weight kg/100m
7.9 kg
Temperature range
-15°C to +70°C, inactive up to -30°C
Cores/coat
Cu-flex (VDE 0295 Kl. 5), Gifaplast/Gifaplast (Spezialmischung)
