Item No: 010653

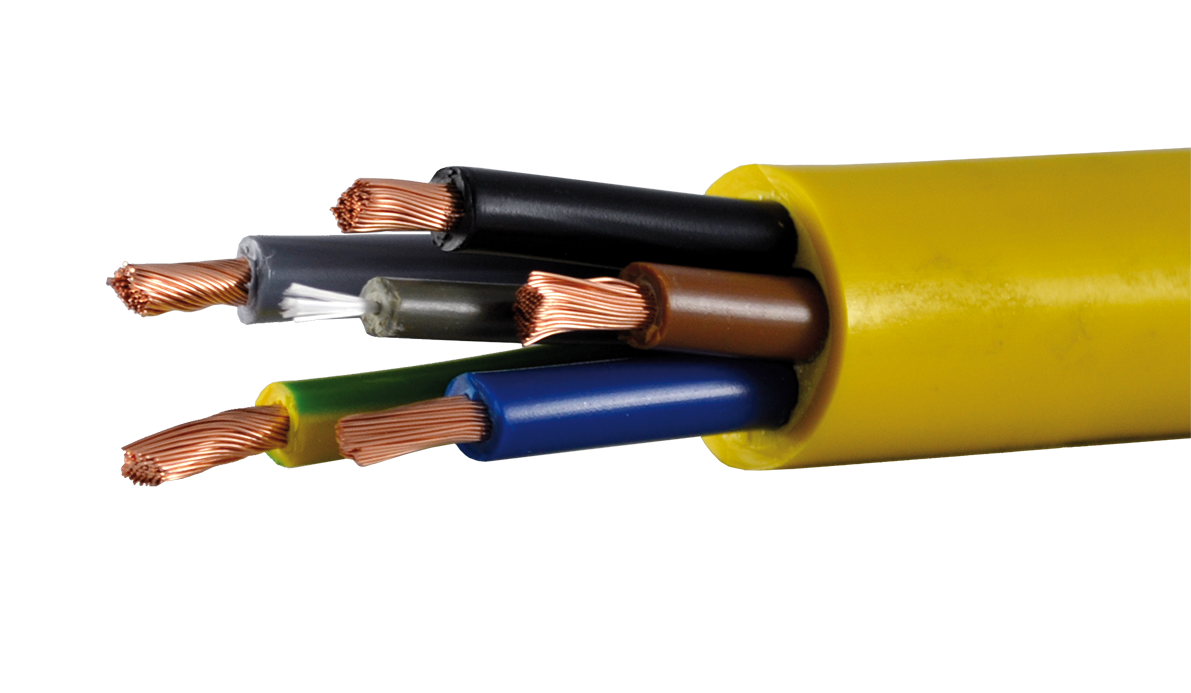

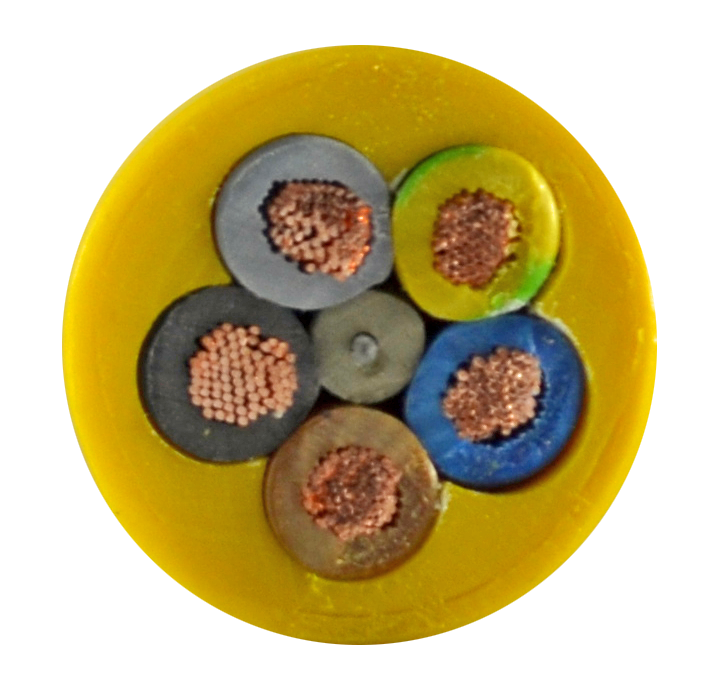

GIFAFLEX CH-N07V3V3-F reinforced

5x4.0mm², yellow RAL 1021, external-Ø 14.9mm

Technical data

Cross-section x mm²
5 x 4.0
Cable
Gifaflex
Colour
yellow
External diameter
14.9 mm
Voltage
450V / 750V
Code HD 308 S2
gn/ge, bl, br, sw, gr
Strand structure (quantity x mm)
56 x 0.30
Bending radius
10xD (D=Ø)
Testing voltage
2'000V - 3'000V / 50Hz
Weight kg/100m
38 kg
Temperature range
-25°C bis +70°C, ruhend bis -40°C
Cores/coat
Cu-flex (VDE 0295 Kl. 5), Gifaplast/Gifaplast (Spezialmischung)
