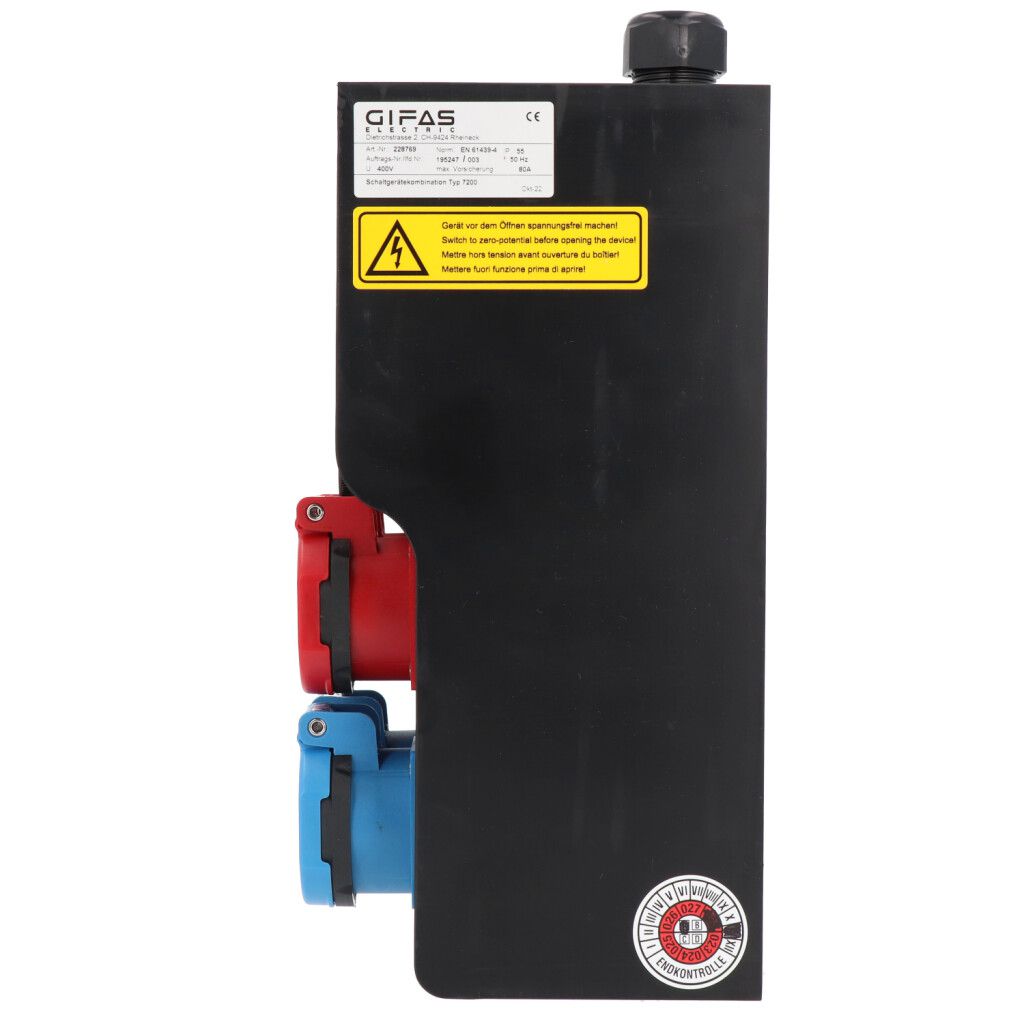

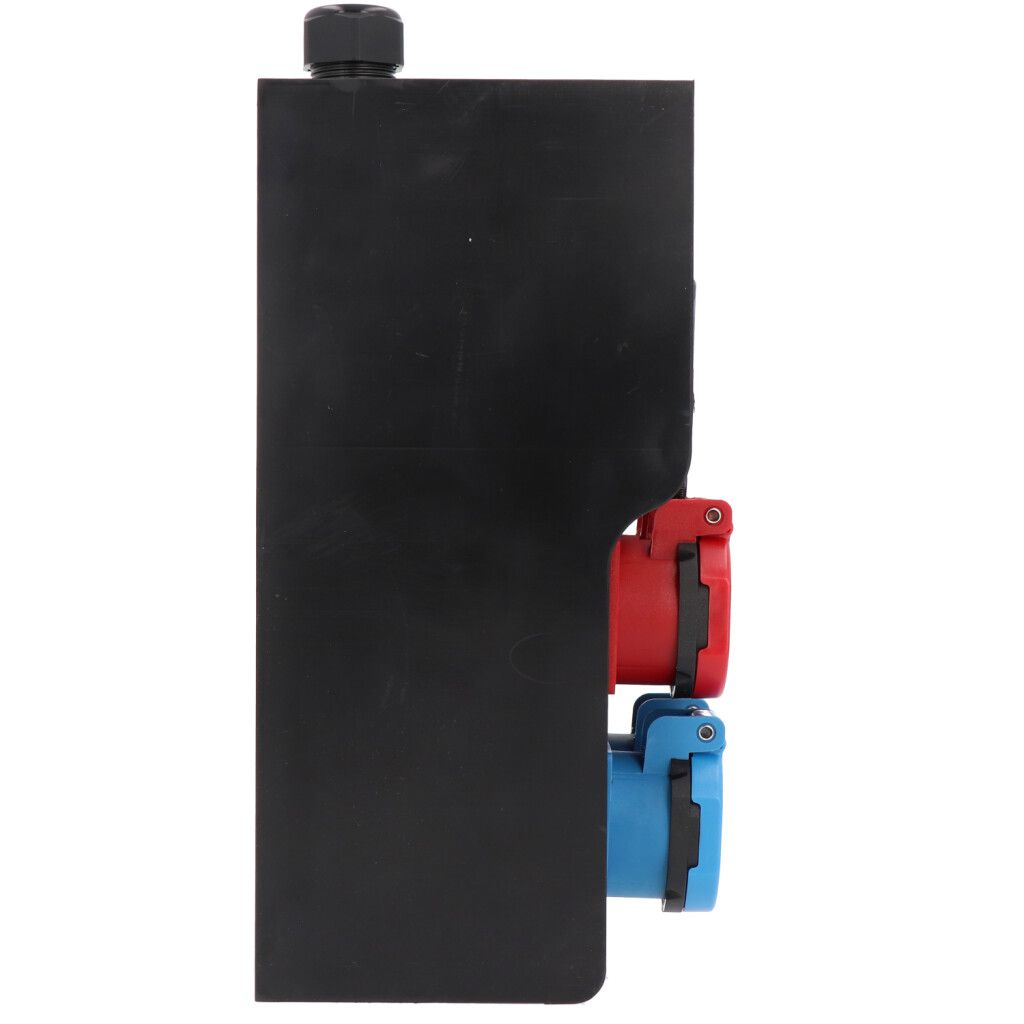

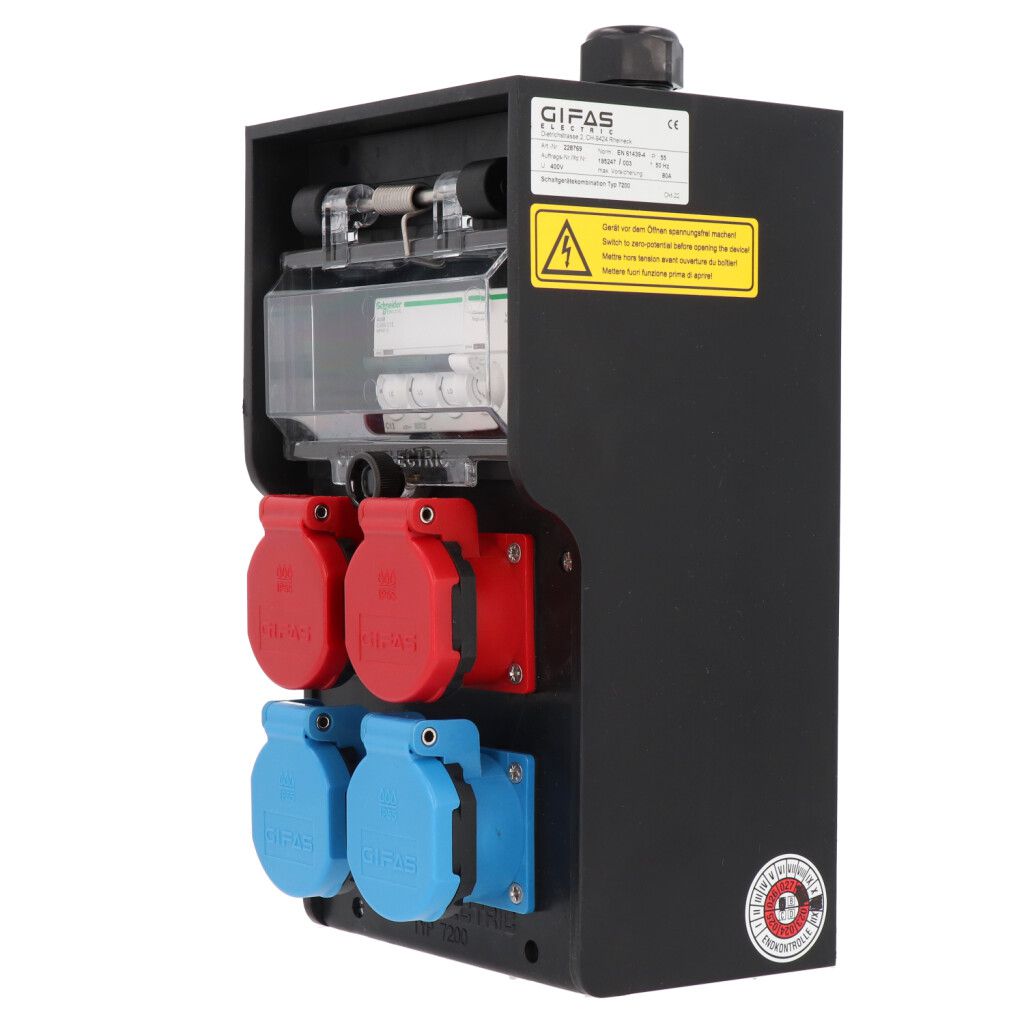

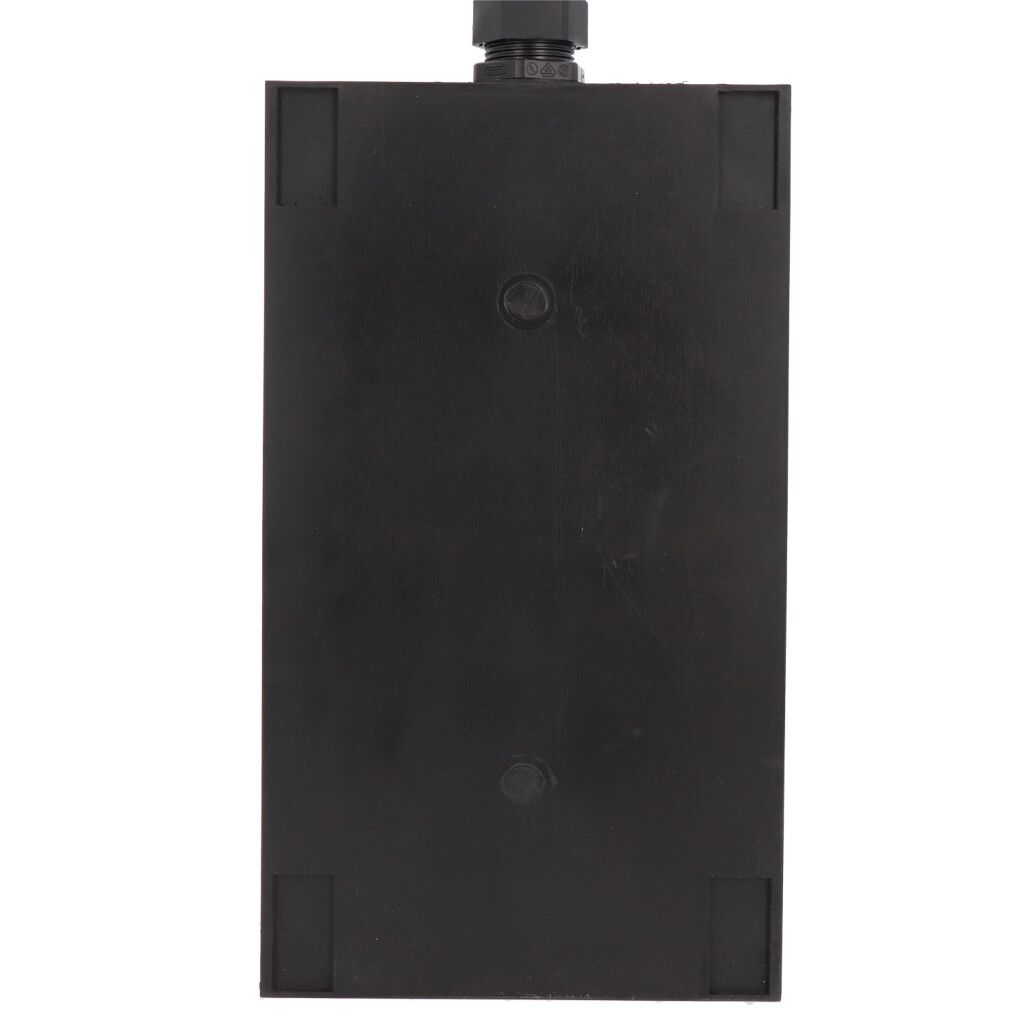

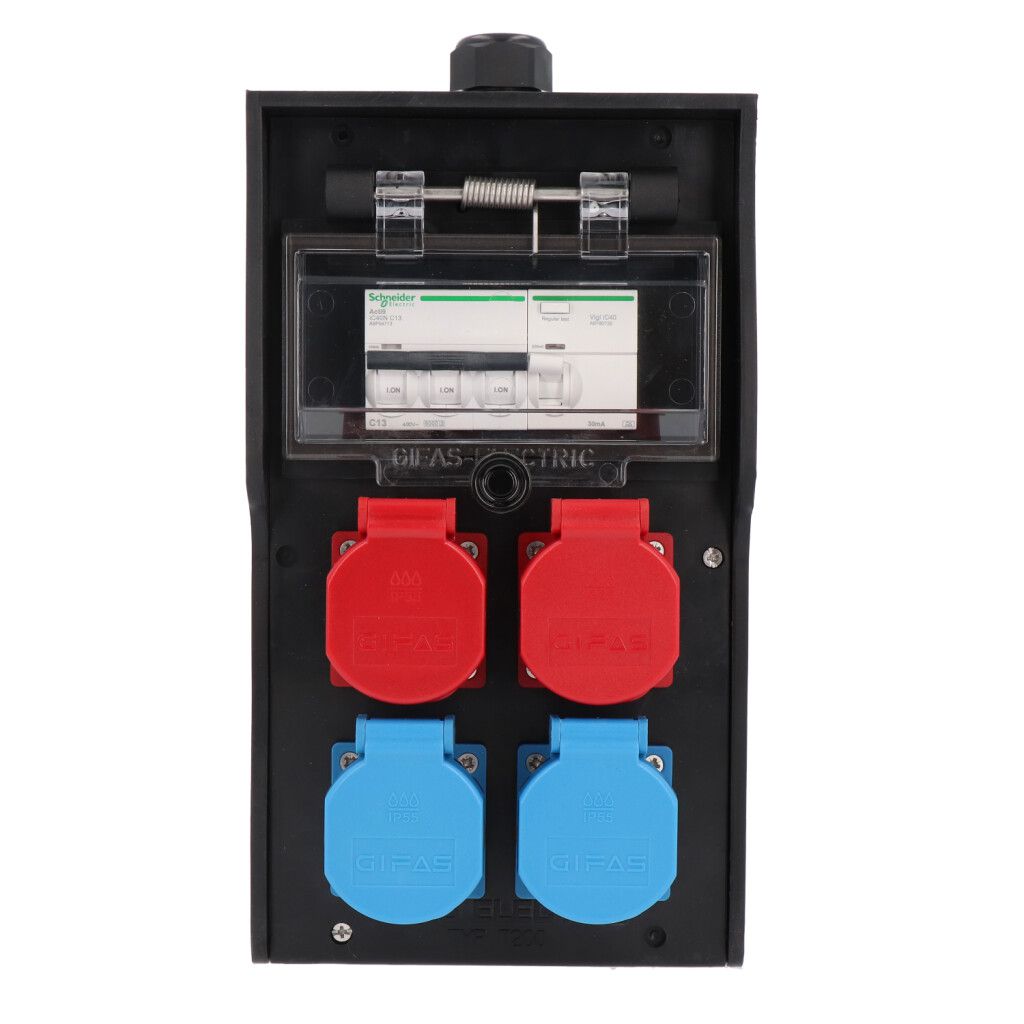

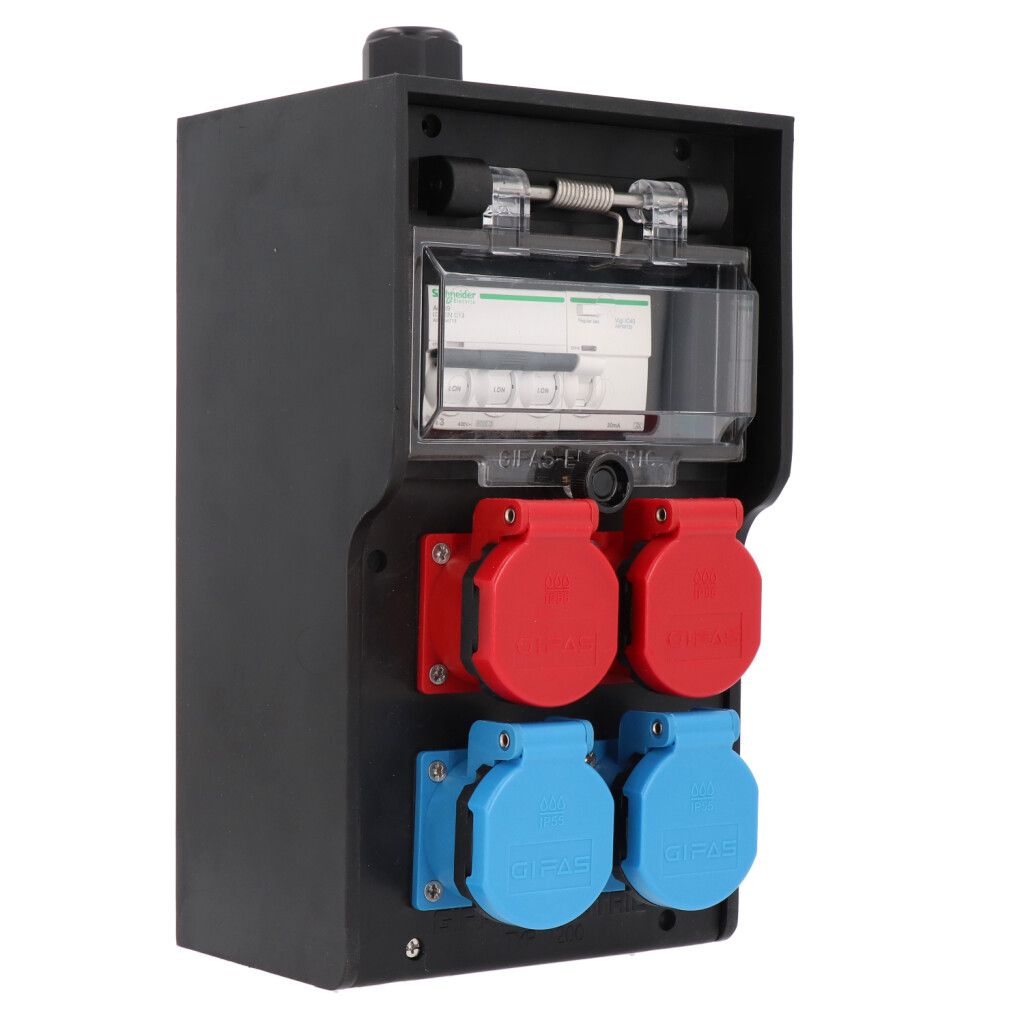

Hard rubber distributor box type 7200, black

Technical data

Output plug

• T13
• T15

max. pre-fuse

80 A

Input of cable gland(s)

M25

Position of cable gland(s)

above

Width

160 mm

Height

280 mm

Depth

132 mm

Type

7200

Protection rating

IP55

Case material

solid rubber

Characteristics hard rubber

Hard Rubber:

• fully insulated
• impact resistant
• UV resistant
• halogen-free
• aging and temperature resistance
• oil-and acid-resistant
• fire resistant
• self extinguishing
• good chemical resistance

Case colour

black

Fixation

4 internal, separated assembly channels for wall mounting

Additional equipment

with protective cover and protective cap

Output

2xT13, 2xT15

Downloads

Dimensional drawing/Scheme

Accessories

Item No: 029461

Mounting bracket, long/diagonal, aluminium,

for type 7200

Item No: 048746

Mounting bracket, long/diagonal, rust-free A2,

for type 7200

Item No: 178419

Mounting bracket, stainless steel, V4A (1 pc)

Item No: 113103

Stand V2A foldable for type 7200/7300/7400/7700, h=645mm

Spare parts

Item No: 019522

Knurled screw M4x20mm
