Hard rubber junction box type 1212

Technical data

Input cable glands

M16

Input

4xM16

For cable diameter till max.

5 x 6mm²

Terminal

3 x 6mm²

Case colour

black

Case material

solid rubber

Characteristics hard rubber

Hard Rubber:

• fully insulated
• impact resistant
• UV resistant
• halogen-free
• aging and temperature resistance
• oil-and acid-resistant
• fire resistant
• self extinguishing
• good chemical resistance

Protection rating

IP65

Fixation

4 internal assembly channels

Type

1212

Width

125 mm

Height

125 mm

Depth

76 mm

Downloads

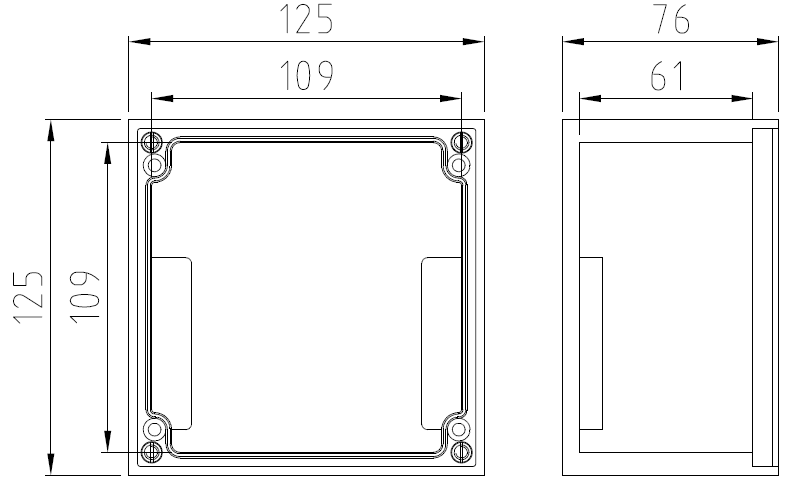

Dimensional drawing/Scheme

Accessories

Item No: 056089

Mounting bracket, long/diagonal, rust-free A2,

for type 1212/1812

Item No: 052787

Mounting plate, square, rust-free A2, for type 1212

Item No: 026610

Glue Loctite 406
