Hard rubber junction box type 3020,

Technical data

Input cable glands

M32

Input

3xM32

For cable diameter till max.

5 x 35mm²

Terminal

5 x 35mm²

Case colour

light grey

Case material

solid rubber

Characteristics hard rubber

Hard Rubber:

• fully insulated
• impact resistant
• UV resistant
• halogen-free
• aging and temperature resistance
• oil-and acid-resistant
• fire resistant
• self extinguishing
• good chemical resistance

Protection rating

IP65

Fixation

4 internal assembly channels

Type

3020

Width

302 mm

Height

202 mm

Depth

110 mm

Downloads

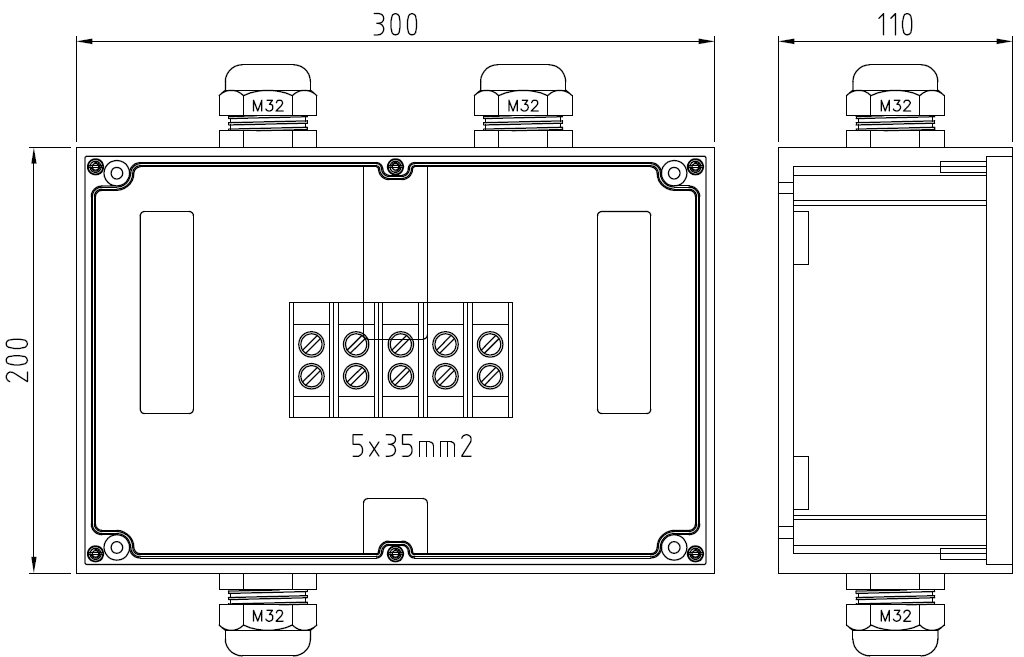

Dimensional drawing/Scheme

Accessories

Item No: 049943

Mounting plate, diagonal, rust-free A2, for type 3020

Item No: 026610

Glue Loctite 406

Item No: 049691

Mounting bracket, long/diagonal, rust-free A2,

for type 3020

Item No: 049689

Mounting bracket, long/vertical, rust-free A2,

for type 3020
