Item No: 254432

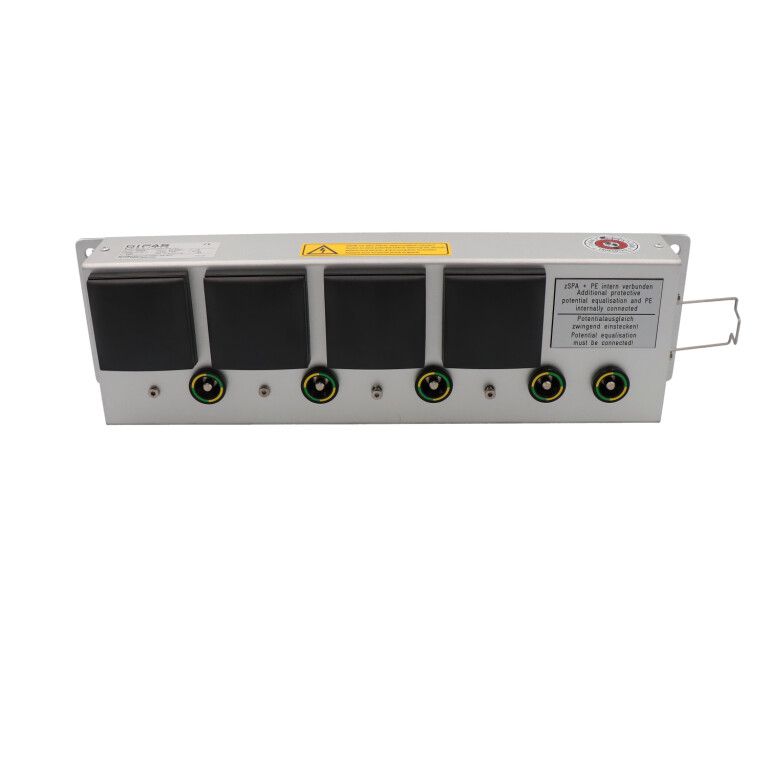

Hospital box aluminium, 4xT13

(IP20 with hinged cover), 5xPot. equal., PE+zSPA not connected

Technical data

Characteristics
  • PE + zSPA not connected
  • available on request: socket IP20 without hinged cover, socket IP55 with hinged cover
Product properties
- tested according to EN 60601-1 (Medical electrical equipment), SN HD 60364-7-710 (Requirements for premises, rooms and installations of a special nature – areas used for medical purposes),
EN 61439-1 (Low-voltage switchgear and controlgear assemblies)
- protection class IP20
- IP20 socket with hinged cover
- additional potential equalisation
- plug-in and plug-out protection available
- modular accessories available
- aluminium housing with mounting brackets
- corrosion-resistant
- UV-resistant and halogen-free
- resistant to ageing and temperature
- flame retardant
Applications

In medical areas of groups 0, 1 and 2 according to the standard SN HD 60364-7-710

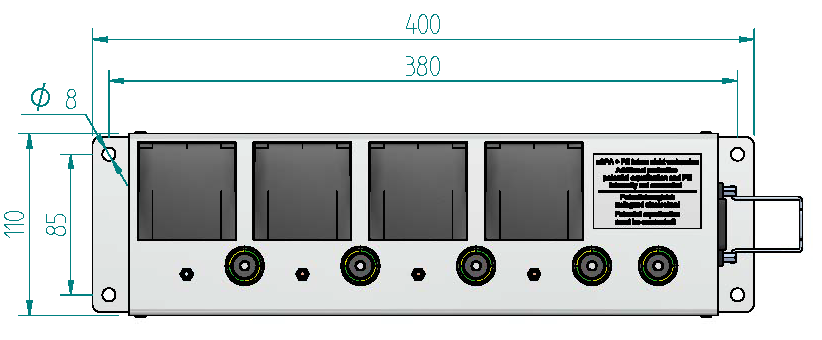

Width
400 mm

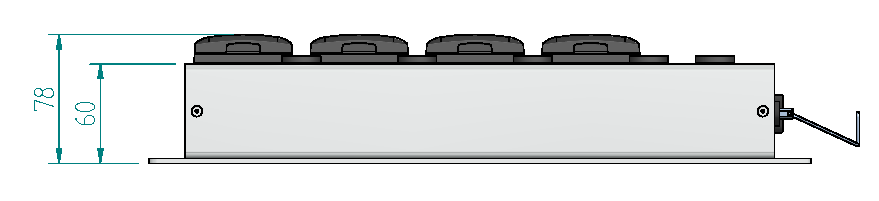

Depth
78 mm
Colour
anodised silver-grey
Protection rating
IP20
Height
110 mm
Case material
anodised aluminium
max. pre-fuse
13 A
Output

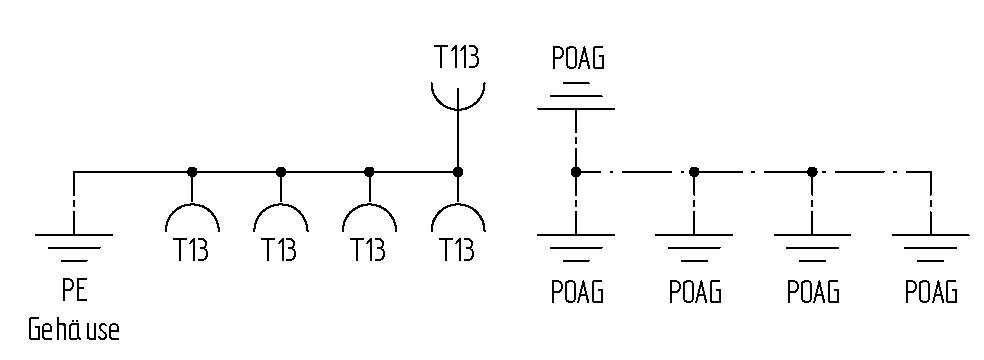

4xT13, 5xPOAG
