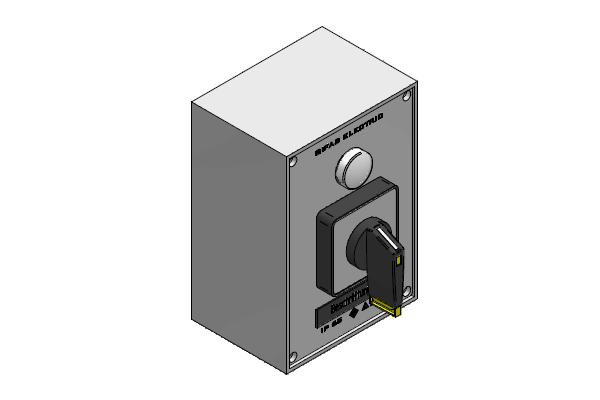

Item No: 058606

Indirect safety switch type 1812

light grey, handle lock 0-I 1NO+2NC/230V

Technical data

Switch
1x 0-I lockable
Input
1xM20
max. pre-fuse
13 A
Type
1812
Fixation
4 internal assembly channels
Case colour
light grey
Protection rating
IP65
Width
125 mm
Height
180 mm
Depth
90 mm
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
LED
230V
Terminal
2.5mm²
Release Function
twist release
