Item No:
231165

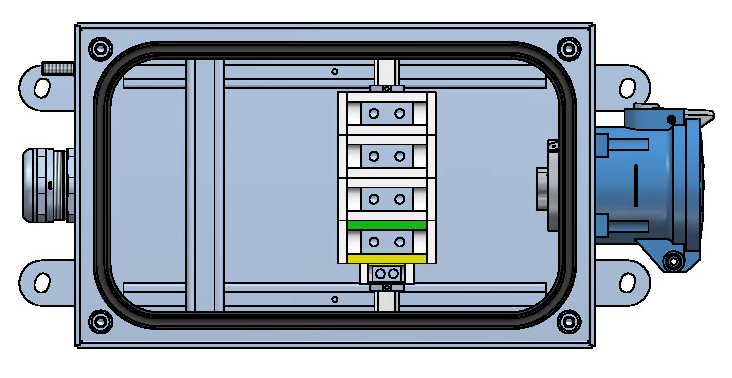

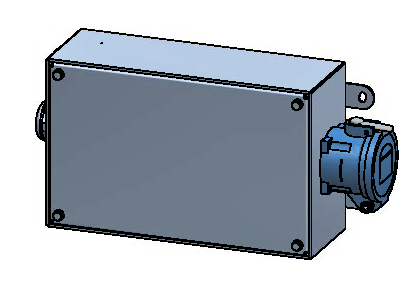

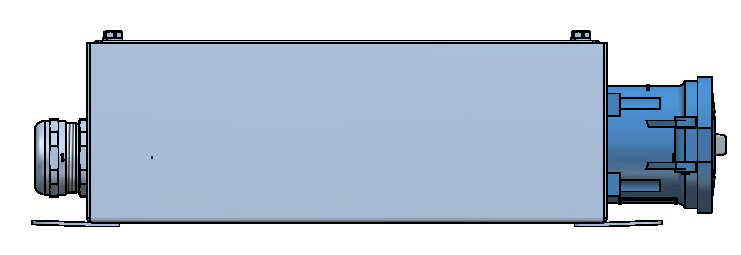

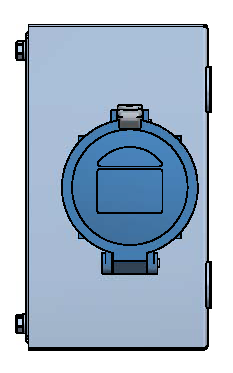

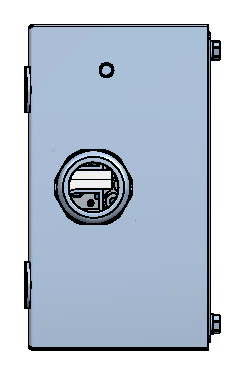

Junction and connection box, fireproof
Type HT3625 - 400 x 250 x 150mm / V4A
Technical data
- Input cable glands
- M50
- Input
- 1xM50
- Terminal
- 4 x 70mm²
- Case colour
- metallic grey
- Case material
- stainless steel
- Protection rating
- IP66/IP69
- Impact resistance
- IK10
- Fixation
- mounting brackets V4A
- Type
- HT 3625
- Width
- 400 mm
- Height
- 250 mm
- Depth
- 150 mm
- Testing
- DIN EN 12101-3
- Characteristics
-
- Material: stainless steel 1.4571 (316 Ti)
- Internal wiring: in accordance with customer requirements
- Cable entries: with a range of sizes depending on the project cable screw fittings available, with or without plug connector
