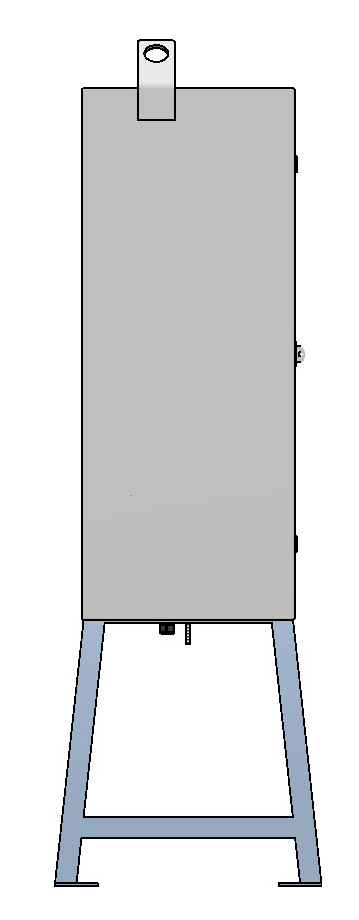

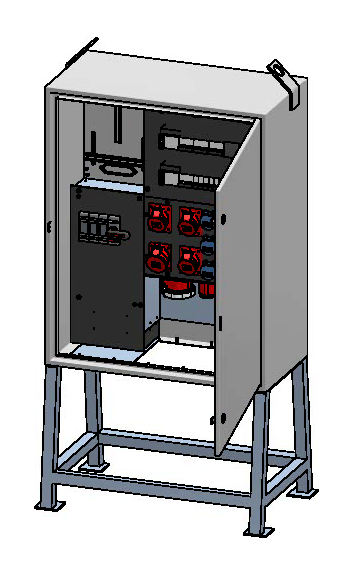

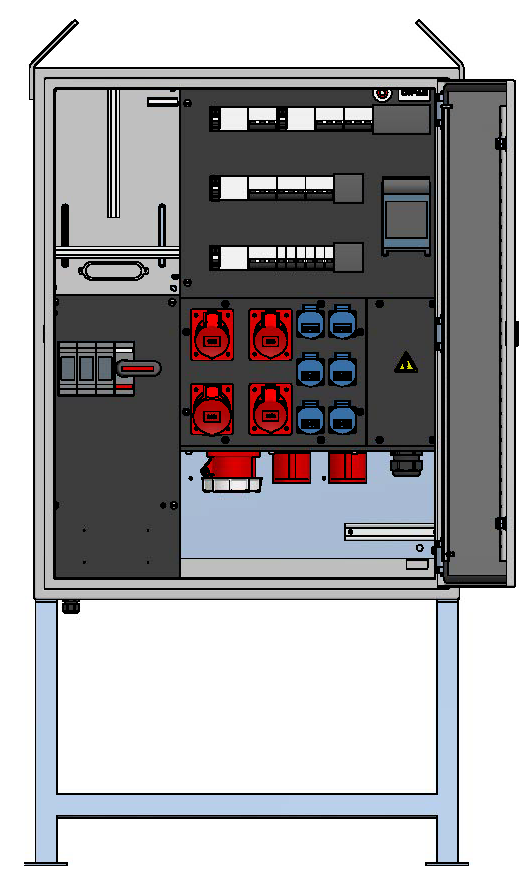

Main distributor box 100A, sheet steel

extern measurement, normes CEE

Technical data

Measurement: External measurement
Amperage: 100 A
Output plug: T23

CEE 16/5

CEE 32/5

CEE 63/5
Output: 6xT23, 3xCEE 16/5, 3xCEE 32/5, 1xCEE 63/5, 1xDir. (ø 5x35mm²)
FI Type: A
Case material: sheet steel
Case colour: light grey
Width: 800 mm
Height: 1000 mm
Depth: 400 mm
Protection rating: IP44
Input cable glands: M40
Additional equipment: square stand, hot-dip galvanised
opening at the bottom
2 transport straps
diagram pocket
Locking: 2x double-bit
1x locking device for grilled door lock

Item No: 256080

(for RONDO + main distribution boxes)
