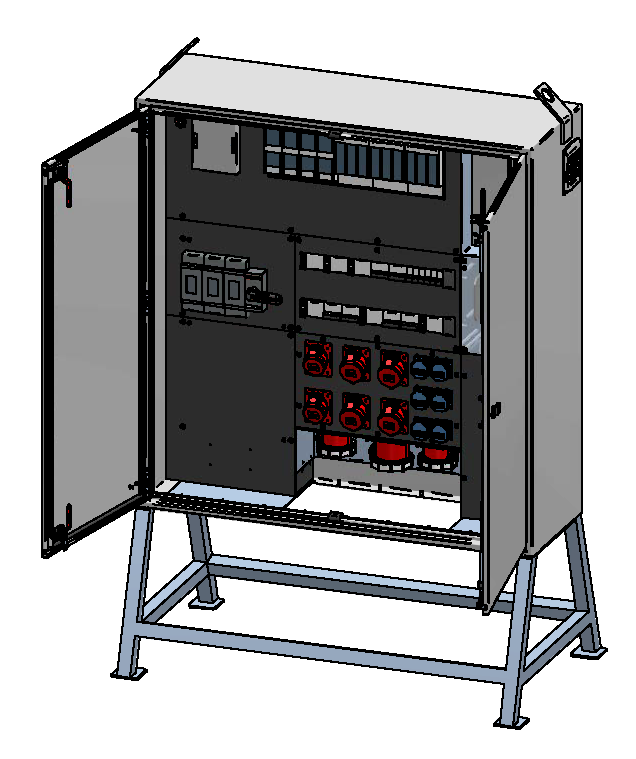

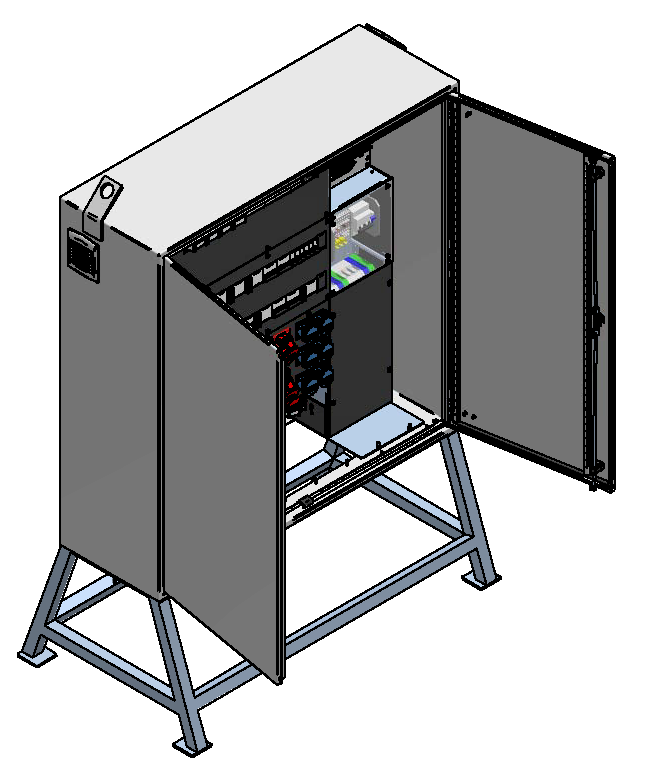

Main distributor box 400A, sheet steel

conferter measurement, normes CEE

Technical data

Measurement: Converter measurement
Amperage: 400 A
Output plug: T23

CEE 16/5

CEE 32/5

CEE 63/5

CEE 125/5
Output: 6xT23, 2xCEE 16/5, 4xCEE 32/5, 2xCEE 63/5, 1xCEE 125/5, 2xDir. (ø 5x70mm²)
FI Type: A
Case material: sheet steel
Case colour: light grey
Width: 1200 mm
Height: 1200 mm
Depth: 400 mm
Protection rating: IP44
Additional equipment: square stand, hot-dip galvanised
openings at the bottom
2 transport straps
vents
diagram pocket
Locking: bar lock with double-bit

Item No: 256080

(for RONDO + main distribution boxes)
