Item No: 053615

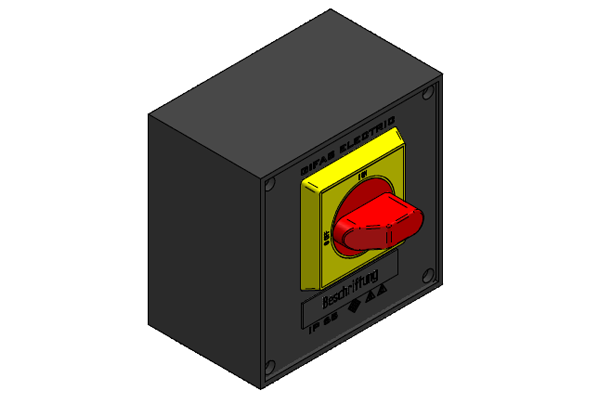

Main switch box type with emergency shut-off function

type 1212/black/3-16A/7.5kW, 3x C.-glands

Technical data

Power
7.5 kW
Stromstärke AC21 400V
3-16 A
Stromstärke AC23 415V
3-16 A
Input
1xM16, 2xM20
max. pre-fuse
16 A
Type
1212
Fixation
4 internal assembly channels
Case colour
black
Protection rating
IP65
Width
125 mm
Height
125 mm
Depth
76 mm
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
Release Function
twist release
Additional equipment
1NC+1NO
