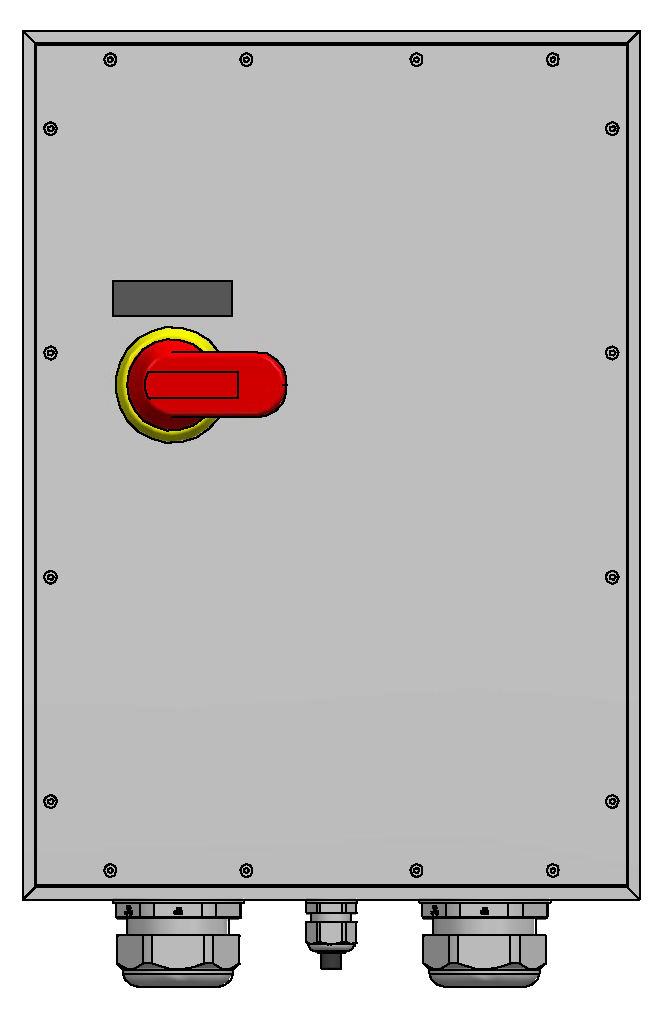

Main switch box with emergency shut-off function

type 7900 grey/4-135A/75kW, 3x C.-glands

Technical data

Power: 75 kW
Stromstärke AC21 400V: 4-160 A
Stromstärke AC23 415V: 4-160 A
Input: 1xM16, 2xM63
max. pre-fuse: 160 A
Type: 7900
Fixation: 4 internal assembly channels
Case colour: light grey
Protection rating: IP65
Width: 362 mm
Height: 503 mm
Depth: 173 mm
Case material: solid rubber
Characteristics hard rubber: Hard Rubber:
fully insulated
impact resistant
UV resistant
halogen-free
aging and temperature resistance
oil-and acid-resistant
fire resistant
self extinguishing
good chemical resistance
Release Function: twist release
Additional equipment: 1NC+1NO
