Item No: 251491

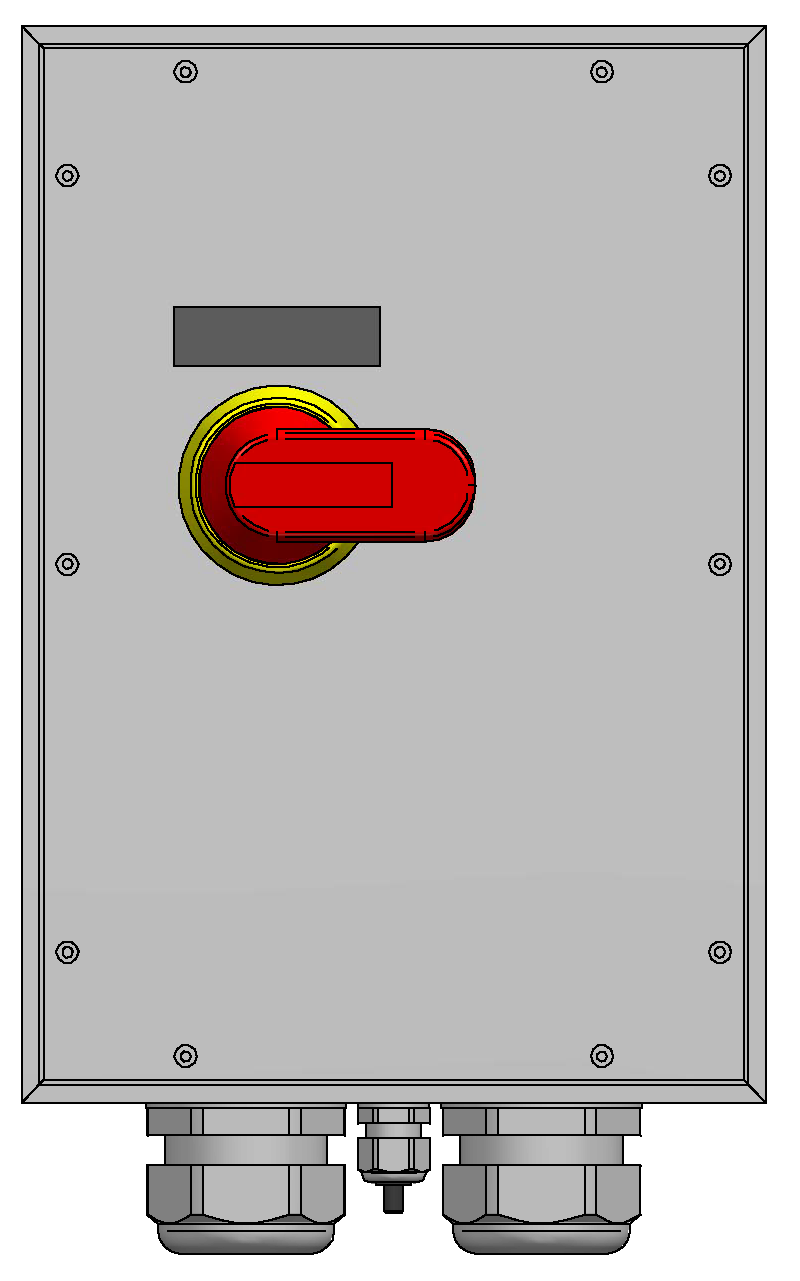

Main switch box with emergency shut-off function

type 3800 light grey/4-90A/45kW/3x C.-glands

Technical data

Power
45 kW
Stromstärke AC21 400V
4-125 A
Stromstärke AC23 415V
4-90 A
Input
1xM16, 2xM50
max. pre-fuse
125 A
Type
3800
Fixation
4 internal assembly channels
Case colour
light grey
Protection rating
IP65
Width
252 mm
Height
362 mm
Depth
133 mm
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
Release Function
twist release
Additional equipment
1NC+1NO
