Item No: 841031

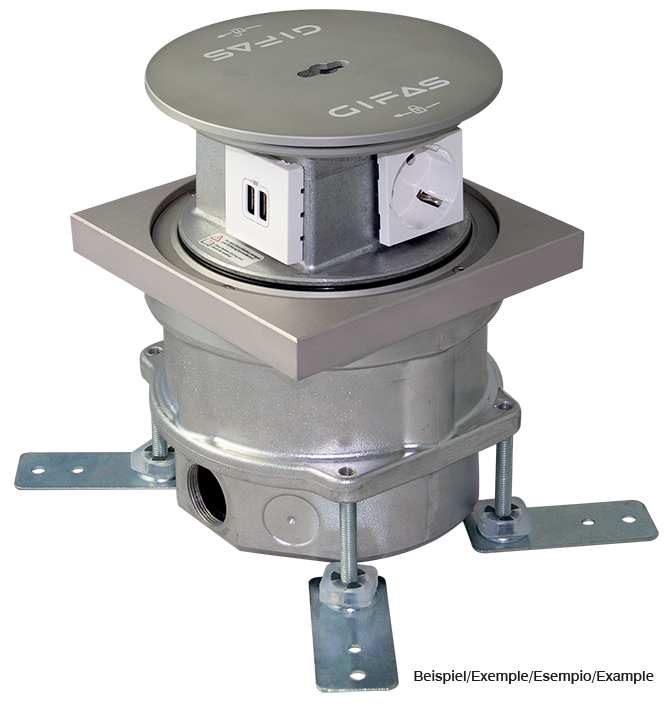

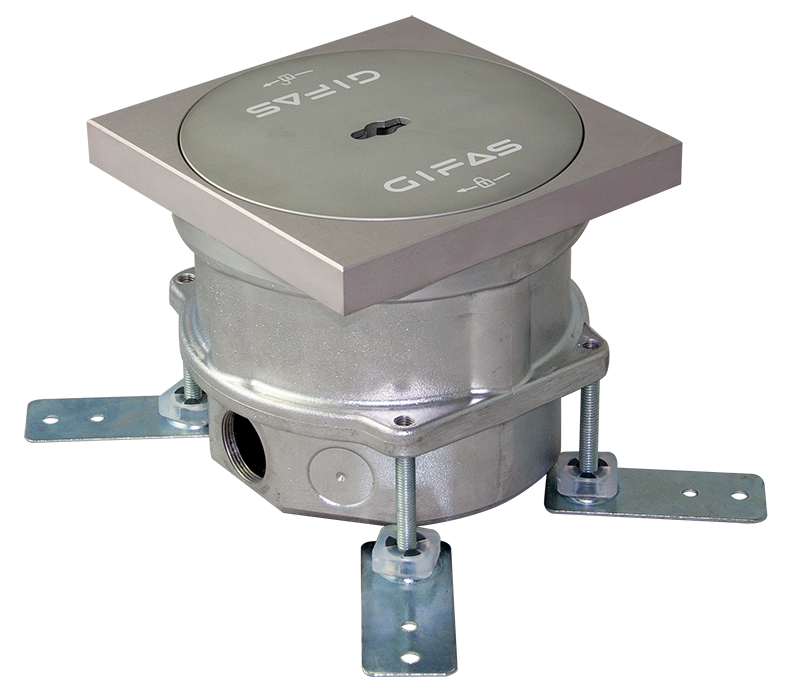

MASSO 3000.2 floor socket outlet, retracable

with scewable lid, 3x T23, 1x blind

Technical data

Output plug: T23

blind
Output: 3xT23, 1xblind
Installation depth (delivery condition): 142mm
Levelling capability: 145-245mm
Width: 170 mm
Height: 170 mm
Material: anodised aluminium
Load capability: 4t (40kN)
Cover: Screwcable lid
Cable outlet: no
Retractable: yes
Fillable cover: no
IP closed: IP67
IP plugged in: IP20
Can be used in: indoor area
Characteristics: micro retraction distributor for flush ground mounting
for 4x mounting socket insert 45x45x4mm
(e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.)
3x centre punch marks for additional holes Ø 25mm and
2x centre punch marks for additional holes Ø 32mm in bottom part of housing

Item No: 840768

floor socket outlet FONTO/MASSO

Item No: 154104

for floor socket outlet FONTO/MASSO
