Item No: 146493

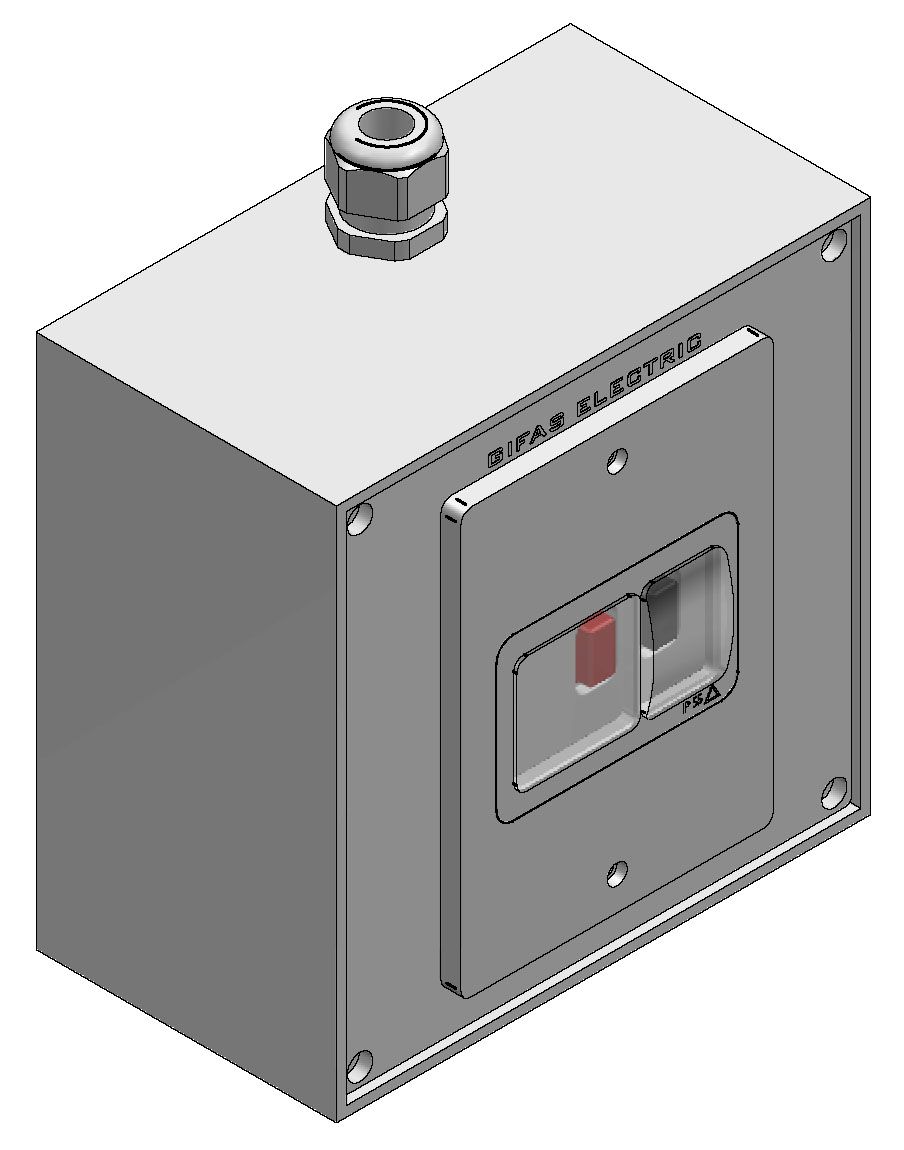

Motor protection switch AC-3, 1,10-1,50kW

50/60Hz, type 1616 light grey 400V / 2,50-4,00A

Technical data

Input
2xM20
max. pre-fuse
16 A
Type
1616
Fixation
4 internal assembly channels
Case colour
gris
Protection rating
IP55
Width
160 mm
Height
160 mm
Depth
90 mm
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
Release Function
twist release
Activation current
51 A
400V / kW
1.10.-1.50
Setting range of therm. activation
2.50-4.00A
