Item No: 146495

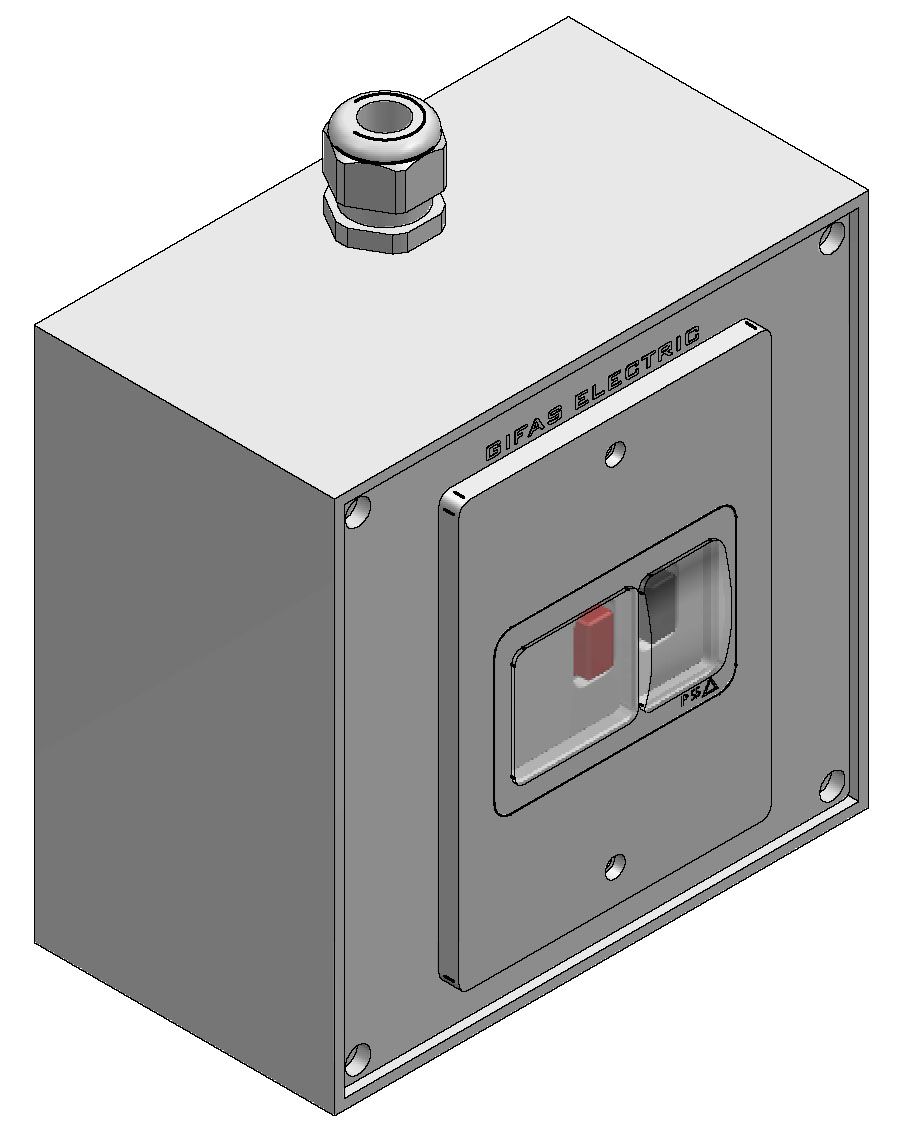

Motor protection switch AC-3, 3,00-4,00kW

50/60Hz, type 1616 light grey 400V 6,00-10,00A

Technical data

Input
2xM20
max. pre-fuse
16 A
Type
1616
Fixation
4 internal assembly channels
Case colour
gris
Protection rating
IP55
Width
160 mm
Height
160 mm
Depth
90 mm
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
Release Function
twist release
Activation current
138 A
400V / kW
3.00-4.00
Setting range of therm. activation
6.00-10.0A
