Item No: 227303

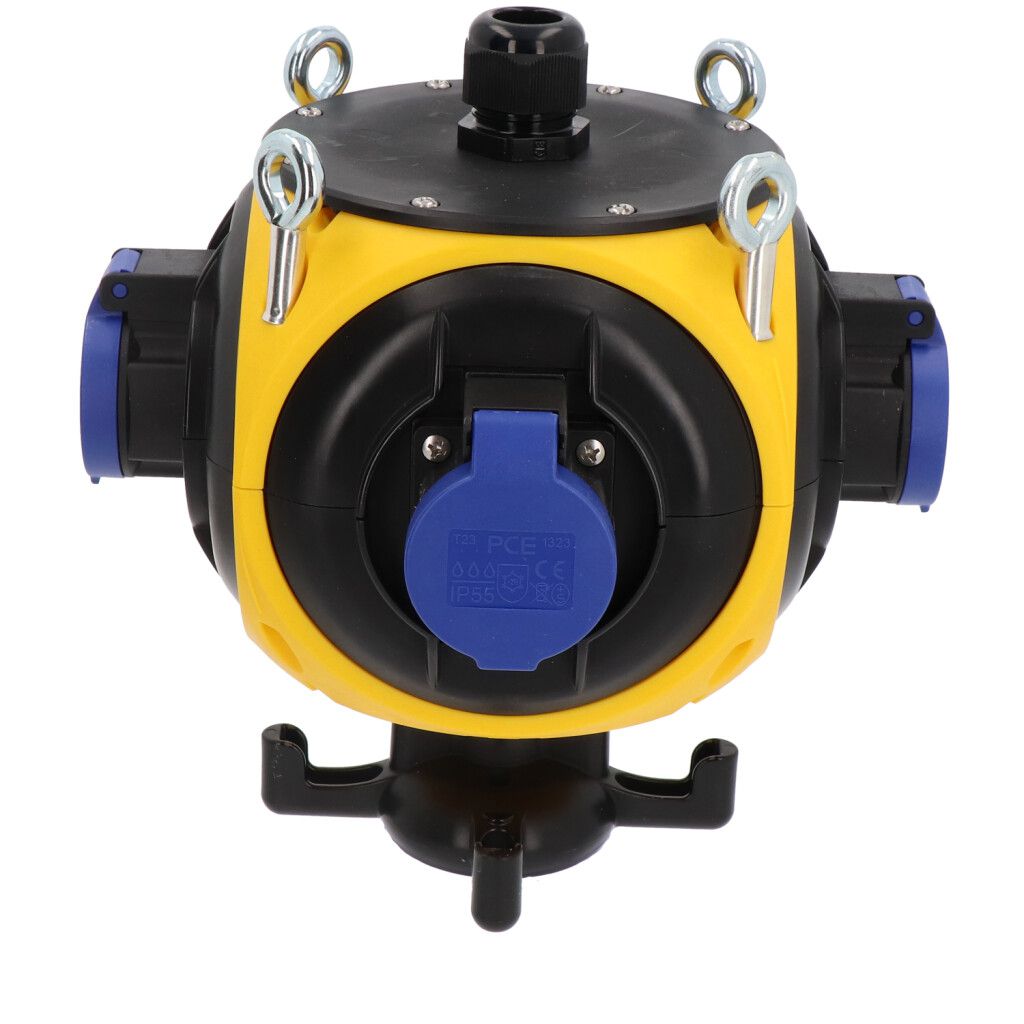

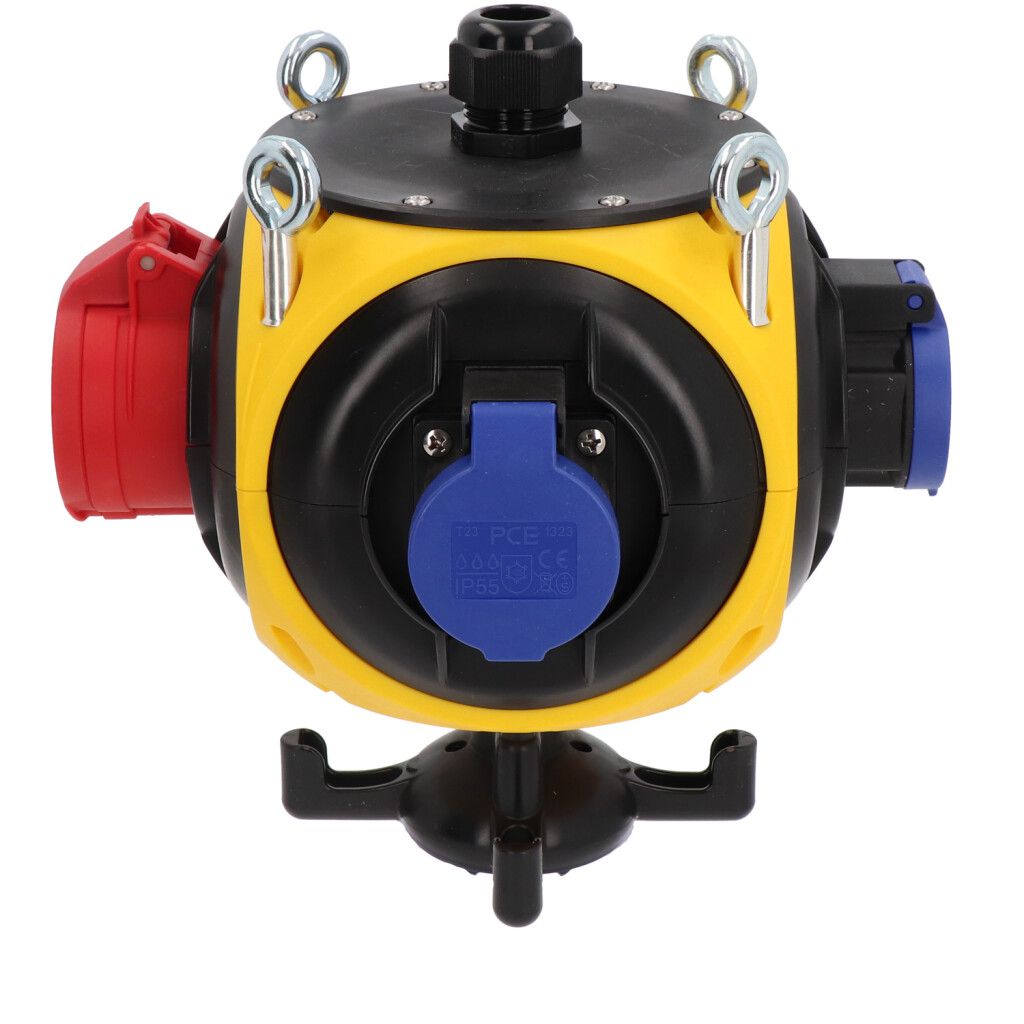

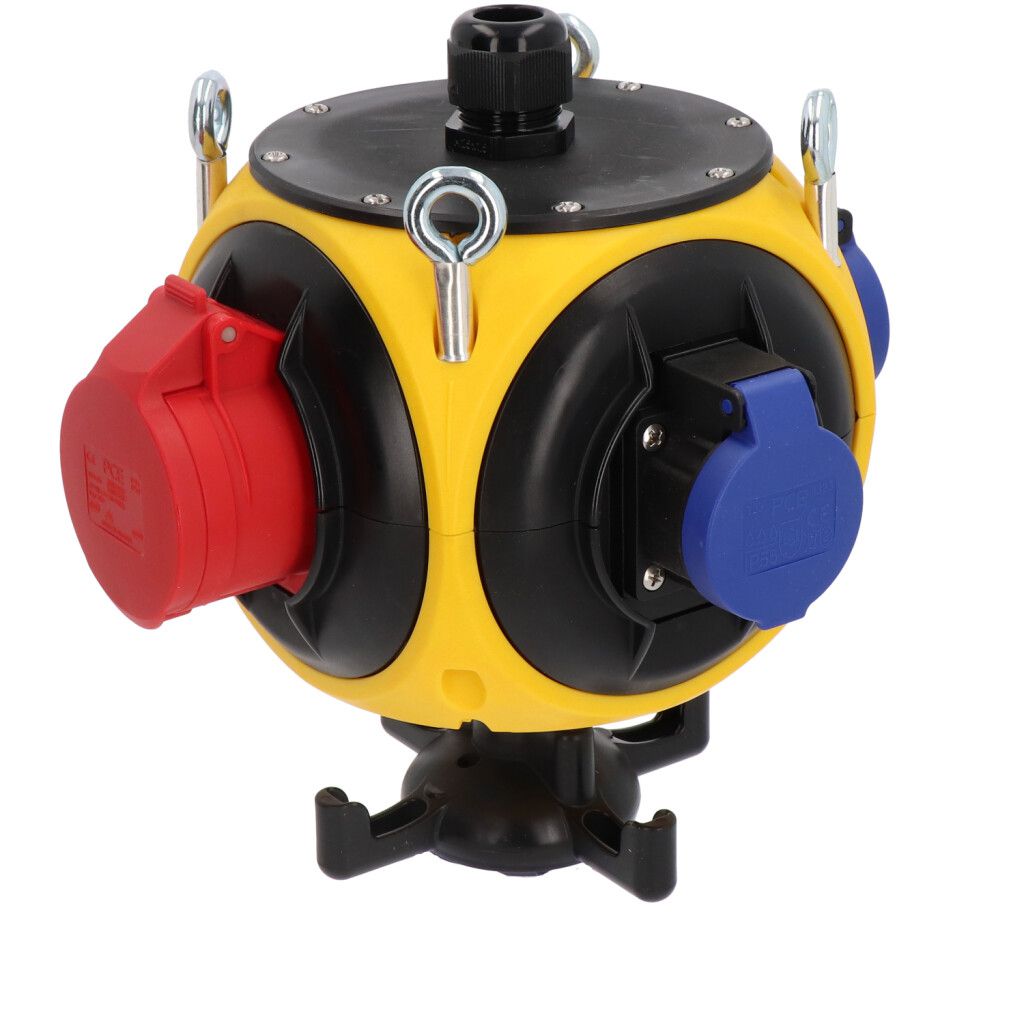

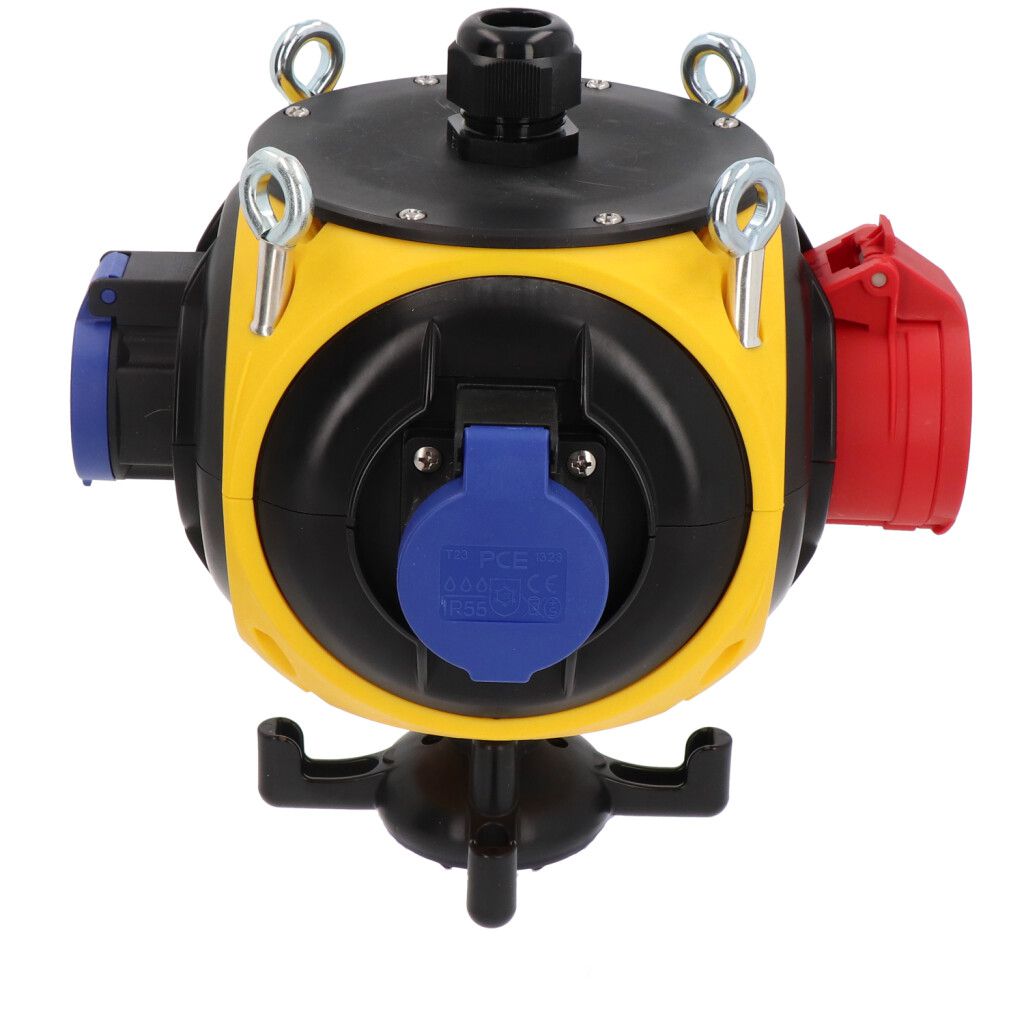

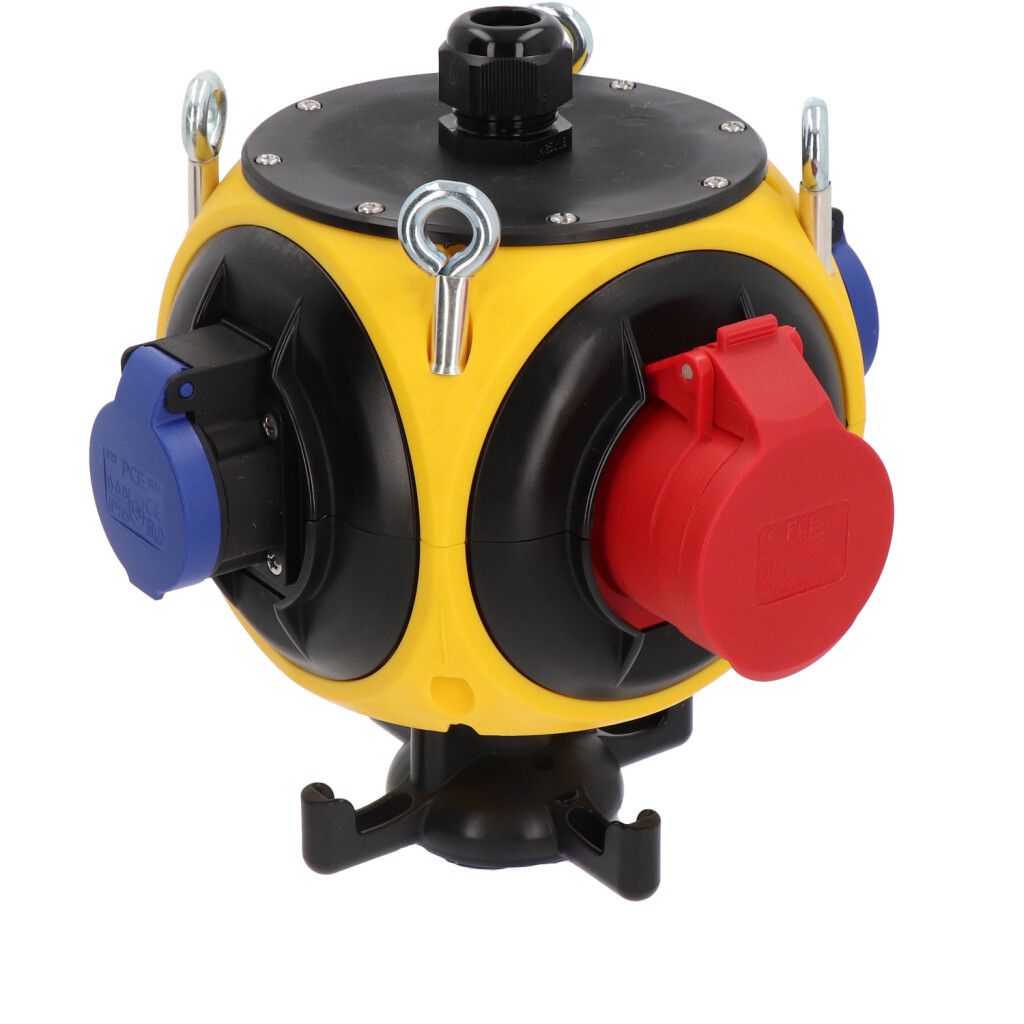

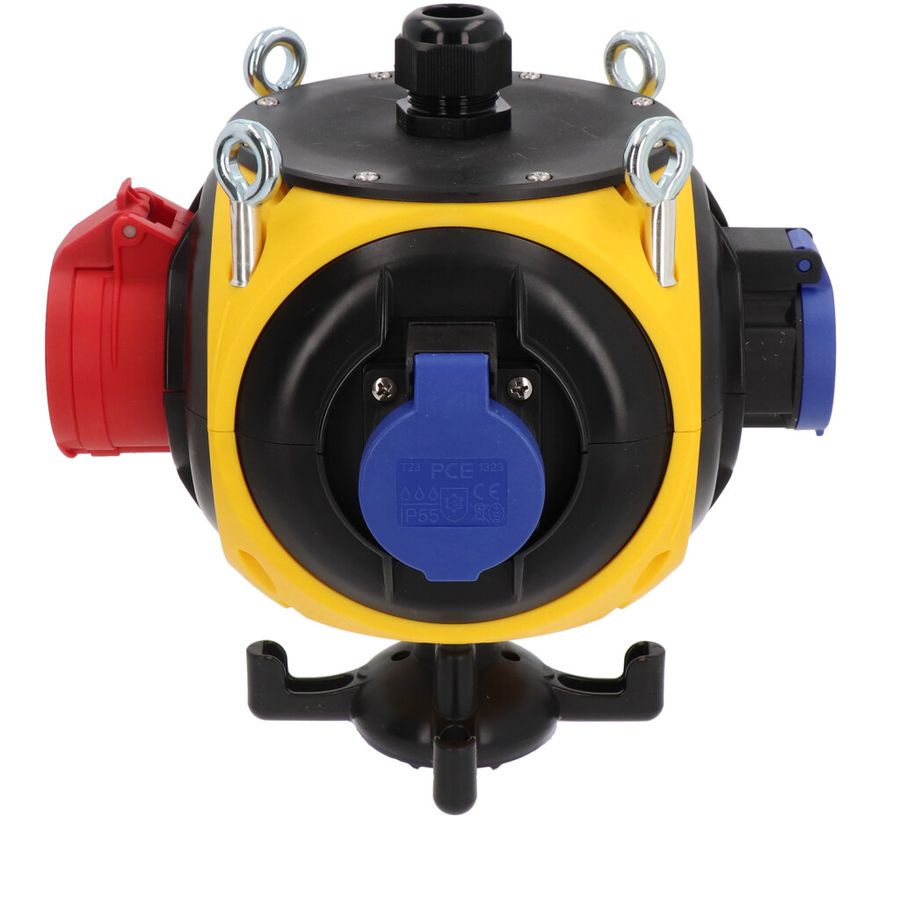

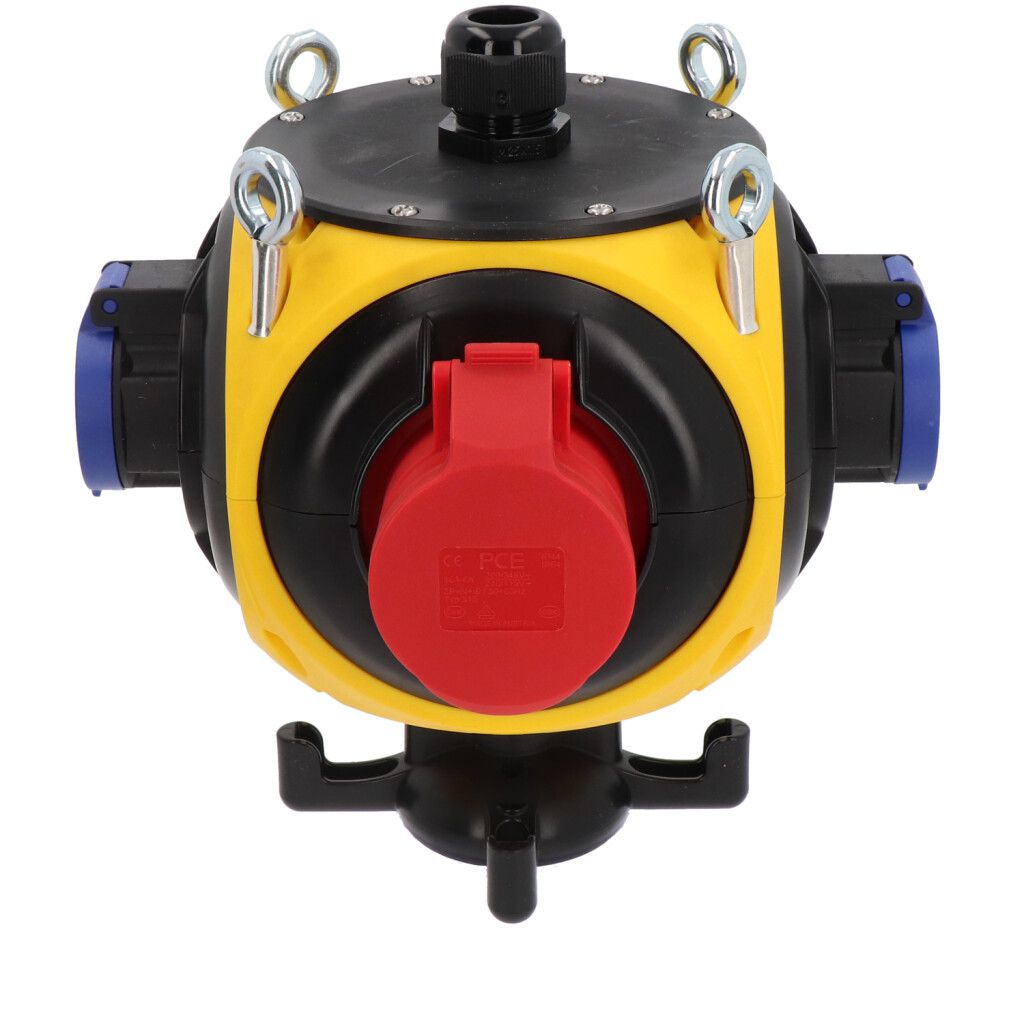

Plastic suspendet distributor yellow/black IP44

3xT23 (IP55), 1xCEE16/5, KV M20, max. pre-fuse 155

Technical data

Input
1xM20
Output
3xT23, 1xCEE 16/5
max. pre-fuse
16 A
Output plug
  • T23
  • CEE 16/5
Protection rating
IP44
Material
plastic
Width
149 mm
Length
143 mm
Height
220 mm
Colour
yellow
Characteristics
  • Compact design:
modular concept, allows for a multitude of variants and forms
  • Can be used as a suspended or portable distributor
  • Max. 6 mounting surfaces
  • Combination possibilities:
16A 3P to 32A 5P CEE sockets, with a variety of other sockets, fused or non-fused, with integrated air supply etc.
  • Inputs: Cable glands and wiring at the connecting terminals on the cover
plate (also for several power circuits), CEE device plug, device lines
