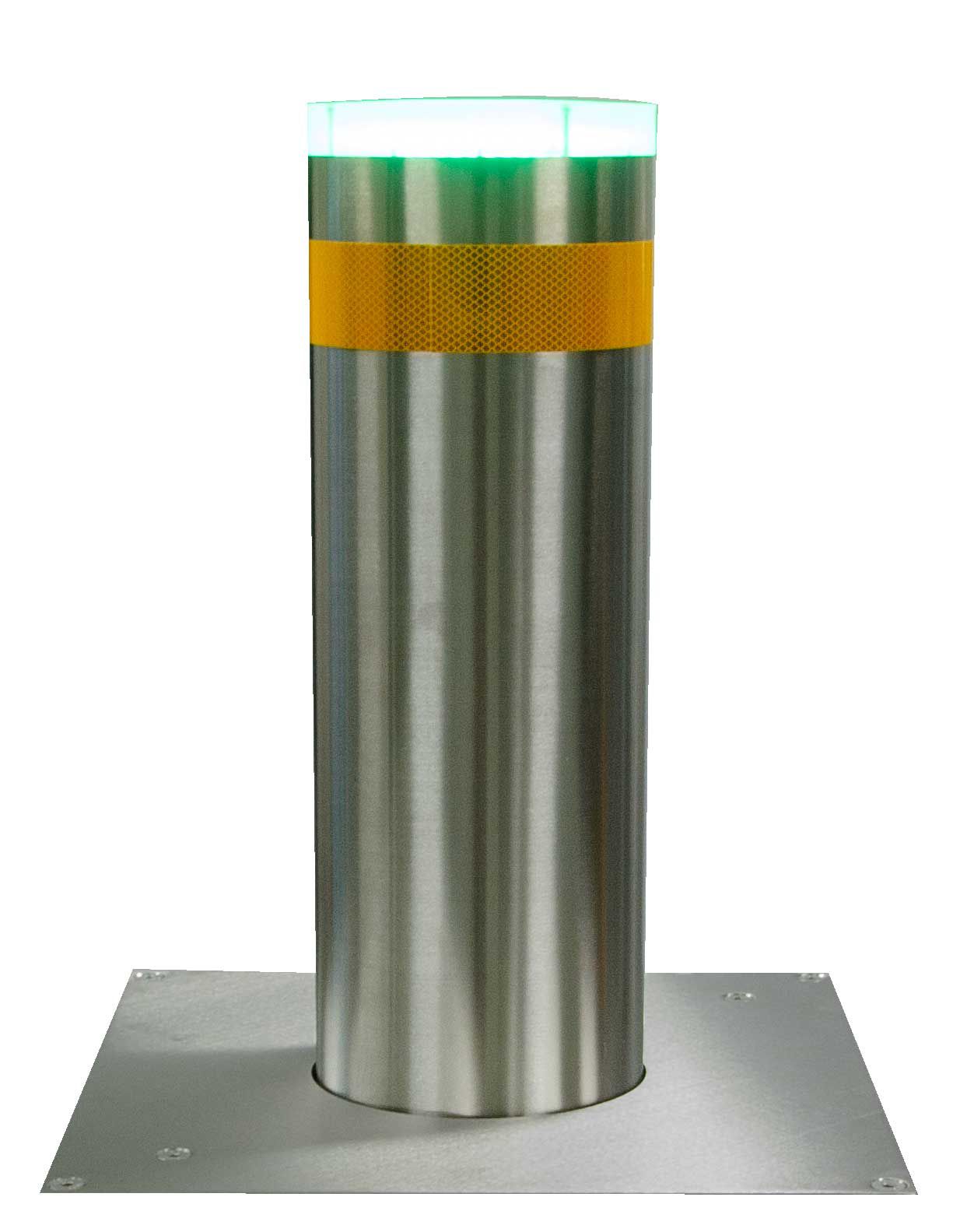

Retractable bollard 2, incl. guide cage, junction box,

Technical data

Protection rating

IP67

Material

stainless steel V2A

Operating voltage

Antrieb 24 VDC

Radar

Close range to 2m (24 GHz)

LED luminous row

48×SideLED RGB 0.08 W / 24×TopLED RGB 0.2 W

Integrated heating

yes

Velocity

ca. 12 cm/sec.

Loading class / Europ. stand.

C250

Stroke

600 mm

Drive

Electromechanical (geared motor on spindle)

Downloads

Dimensional drawing/Scheme

Accessories

Item No: 011728

Earthing flex PVC 1x6,0mm² yellow-green

Item No: 103552

Concrete tube 1'000mm

(D= 500mm / NW= 400mm)

Item No: 860720

Connection cable with connector 12x1.5 mm² PUR,

casing grey with cable length 10m

Item No: 860721

Connection cable with connector 12x1.5 mm² PUR,

casing grey with cable length 20m

Show all
