Item No: 103248

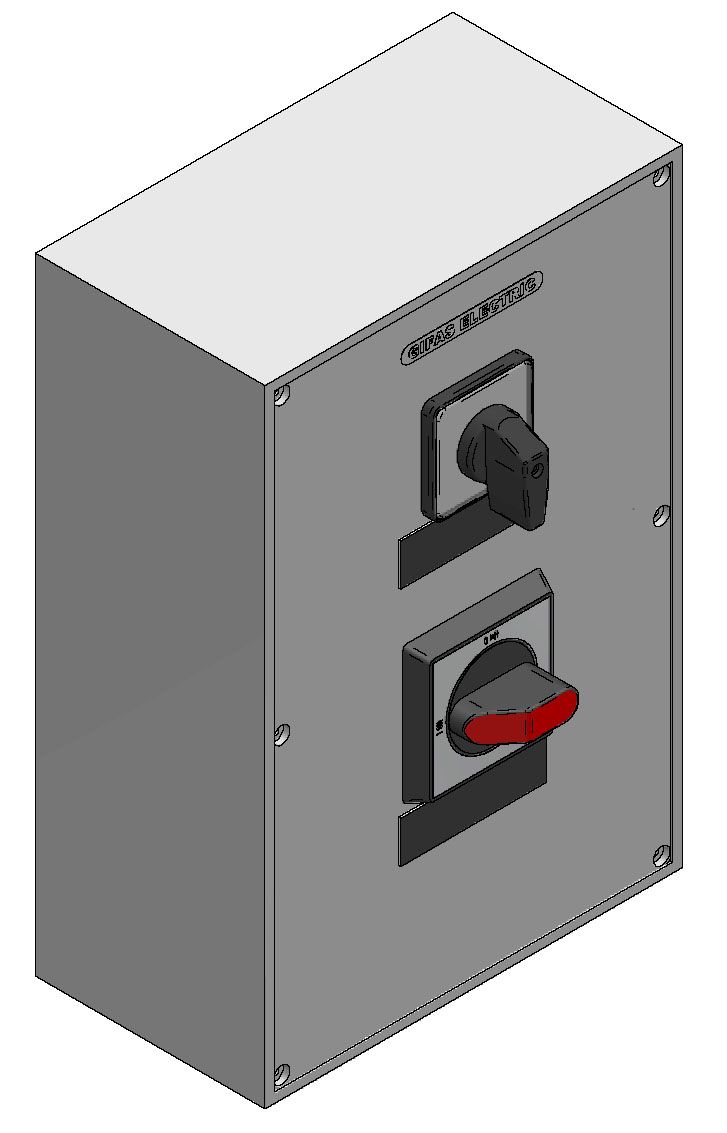

Safety and control switch combination

type 3020 light grey, according drawing

Technical data

Switch
  • 1x 3P-25A lockable
  • 1x I-0-II
Input
2xM16, 2xM25
max. pre-fuse
25 A
Type
3020
Fixation
4 internal assembly channels
Case colour
light grey
Protection rating
IP65
Width
202 mm
Height
302 mm
Depth
110 mm
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
Terminal
2.5mm²
Release Function
twist release
