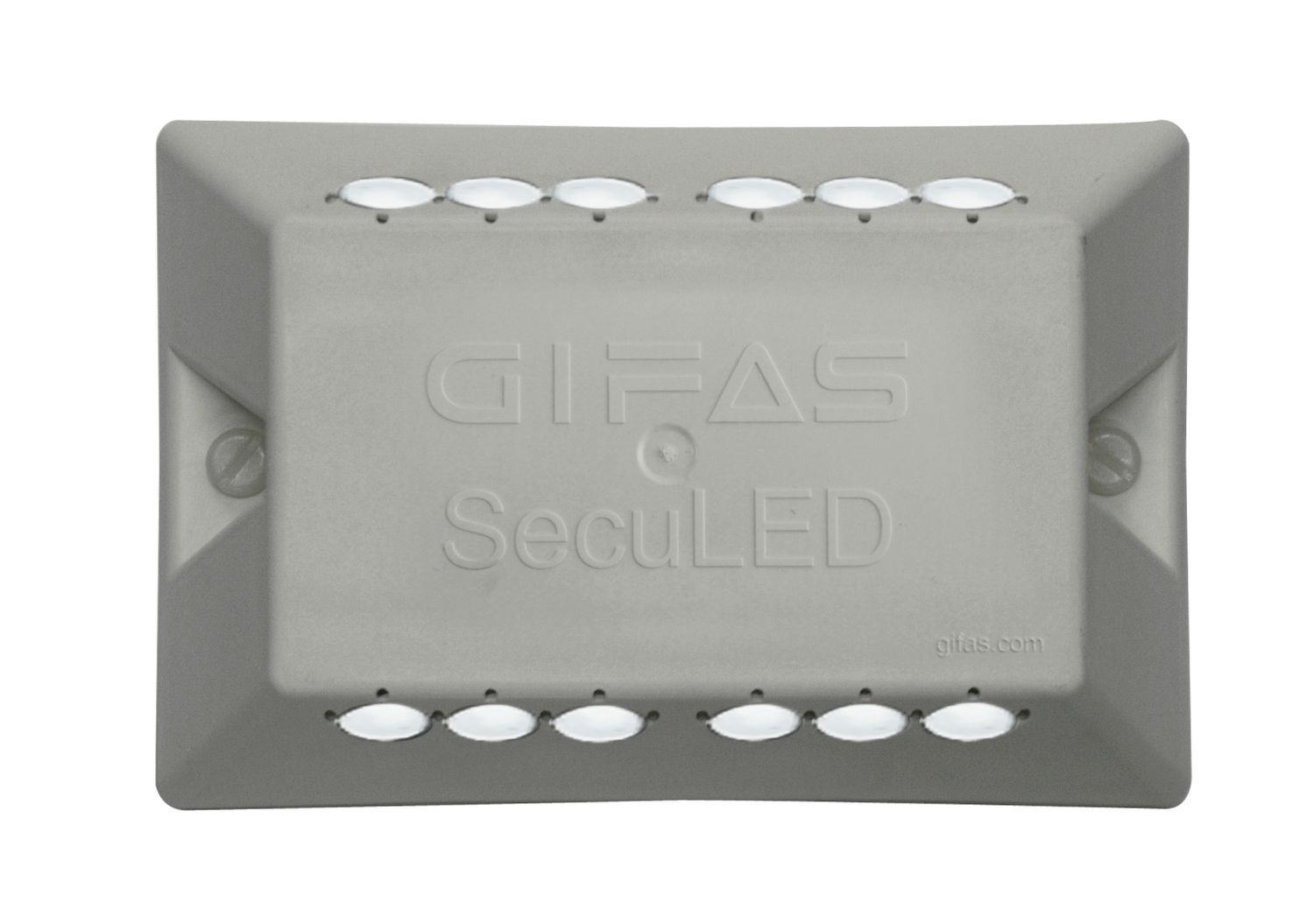

SecuLED light module / 40mA

Technical data

Protection rating

IP67

Width

118 mm

Length

178.4 mm

Height

53.5 mm

Colour temperature

5100 K

Protection class

III

Light colour

white

Power consumption

40mA

Material upper part

polyamide

Guidance system type

SecuLED

Luminosity

30 cd

Colour upper part

white

Downloads

Dimensional drawing/Scheme
