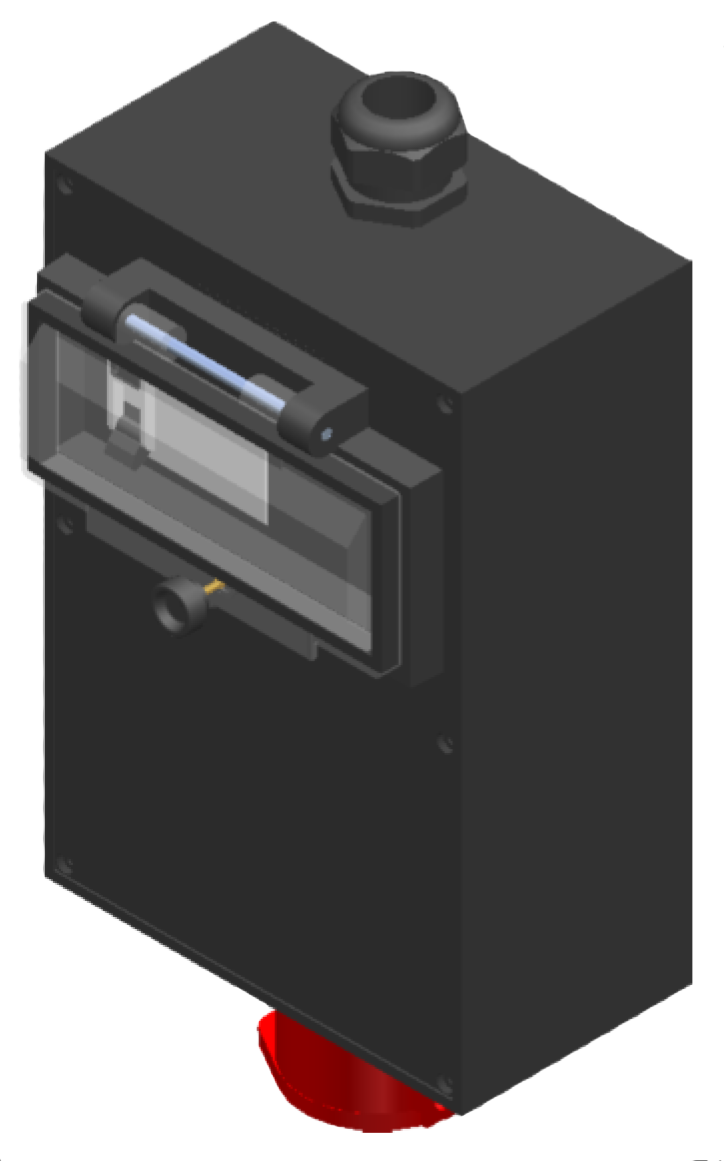

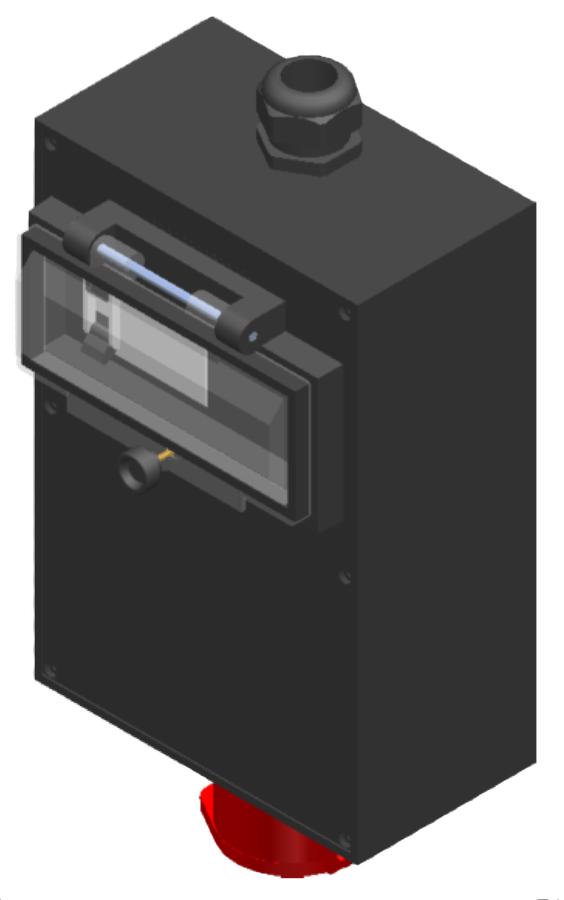

Small hard rubber distributor box type 3020,

Technical data

Output plug

CEE 32/5

max. pre-fuse

32 A

Input cable glands

M32

Width

202 mm

Height

302 mm

Depth

110 mm

Type

3020

Protection rating

IP44

Case material

solid rubber

Characteristics hard rubber

Hard Rubber:

• fully insulated
• impact resistant
• UV resistant
• halogen-free
• aging and temperature resistance
• oil-and acid-resistant
• fire resistant
• self extinguishing
• good chemical resistance

Case colour

black

Output

1xCEE 32/5

Downloads

Dimensional drawing/Scheme

Accessories

Item No: 050917

Mounting plate, vertical, rust-free A2, for type 3020

Item No: 178419

Mounting bracket, stainless steel, V4A (1 pc)

Spare parts

Item No: 019522

Knurled screw M4x20mm

Item No: 011387

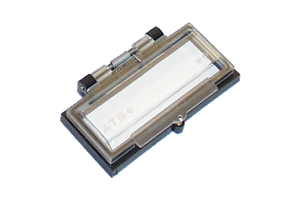

Automated unit protective caps 9 modules,

(162mm)
