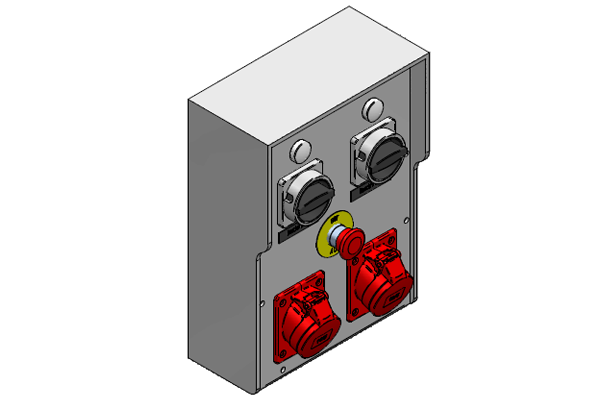

Special combination (double) type 7450

light grey, according drawing

Technical data

Switch: 2x I-0-II lockable
Input: 1xM16, 4xM20
max. pre-fuse: 16 A
Type: 7450
Fixation: 4 internal assembly channels
Case colour: light grey
Protection rating: IP44
Width: 267 mm
Height: 371 mm
Depth: 133 mm
Case material: solid rubber
Characteristics hard rubber: Hard Rubber:
fully insulated
impact resistant
UV resistant
halogen-free
aging and temperature resistance
oil-and acid-resistant
fire resistant
self extinguishing
good chemical resistance
LED: 2x230V
Terminal: 2.5mm²
Release Function: twist release
Additional equipment: 1x Emergency Off with twist release
Output: 2xCEE 16/5
Output plug: CEE 16/5

British Standard (13 A)
