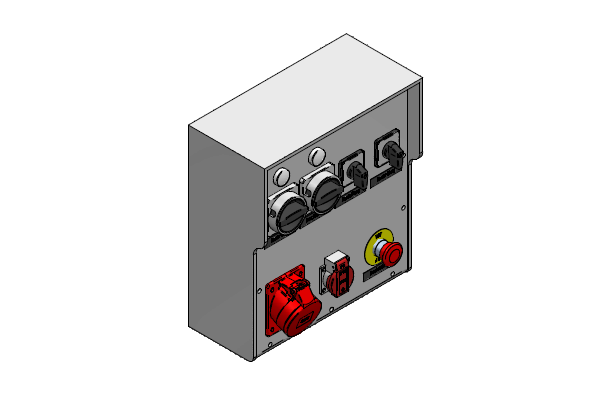

Item No: 050711

Special combination (double) type 7750

light grey, according drawing

Technical data

Switch
  • 2x 0-I lockable
  • 1x 0-I
  • 1x 0-I-II-III
Input
3xM20, 1xM25
max. pre-fuse
16 A
Type
7750
Fixation
4 internal assembly channels
Case colour
light grey
Protection rating
IP44
Width
336 mm
Height
370 mm
Depth
163 mm
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
LED
2x230V
Terminal
2.5mm²
Release Function
twist release
Additional equipment
1x Emergency Off with twist release
Output
1xT25, 2xCEE 32/5
Output plug
  • T25
  • CEE 32/5
