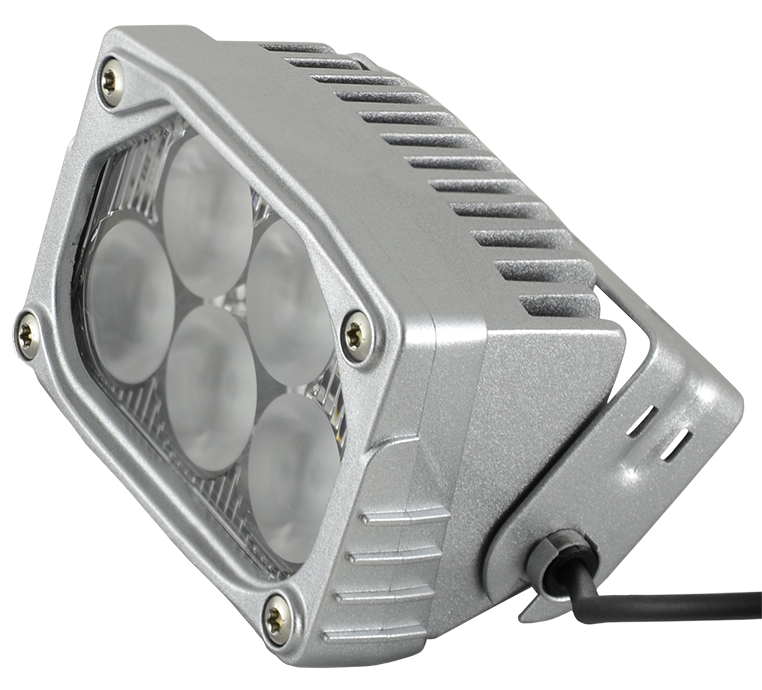

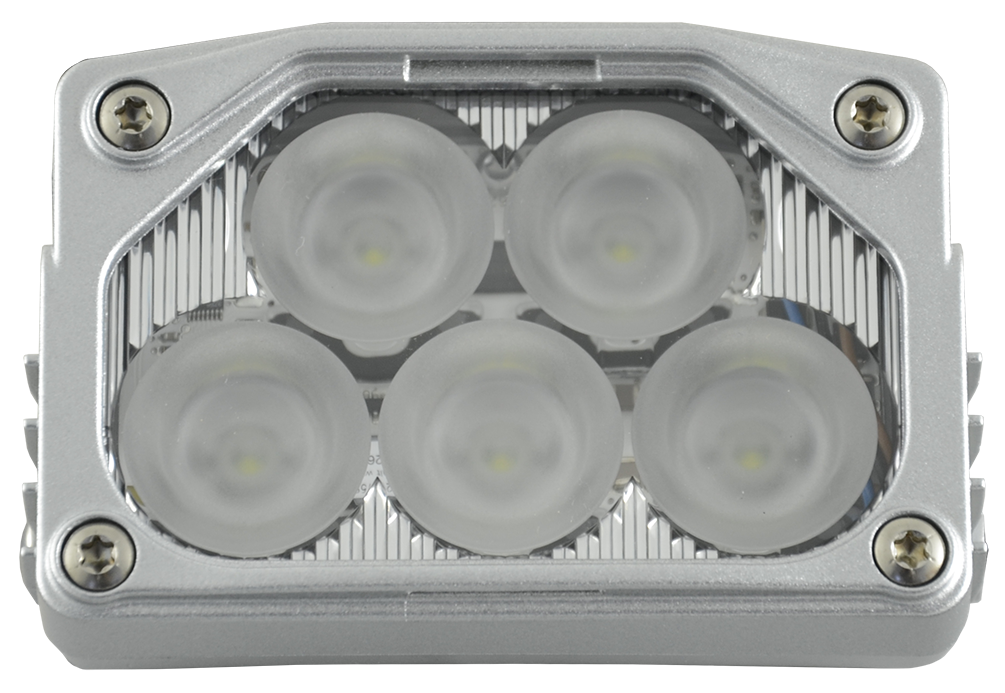

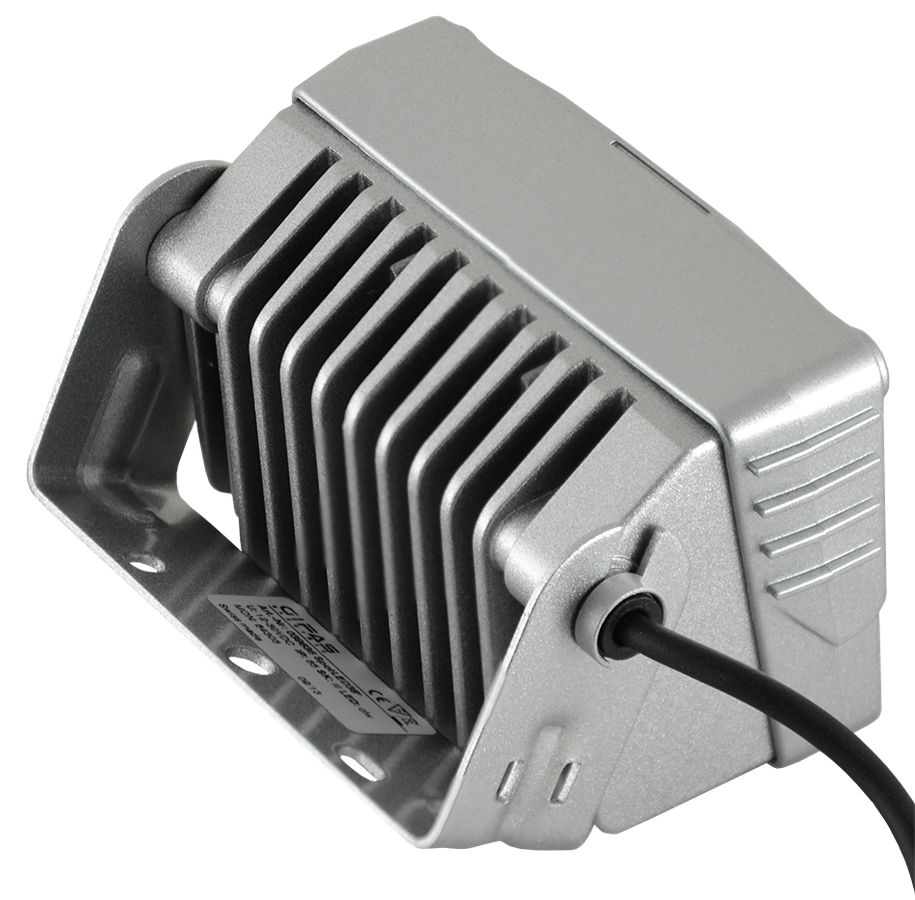

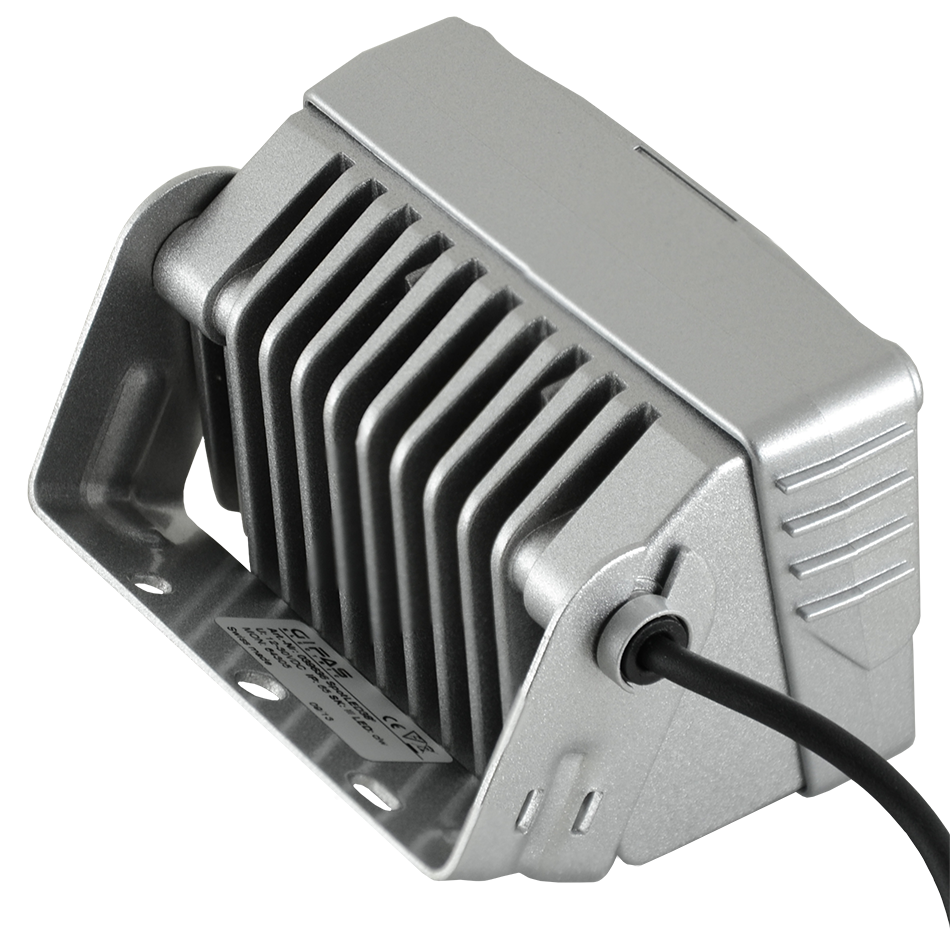

SpotLED 24 silver-grey, 3000K,

Technical data

Input voltage

12-30VDC

Power consumption

500mA@24VDC, 950mA@12VDC

Light output

750 lm

Performance

10 W

Colour temperature

3000 K

Abstrahlwinkel

Wide

Protection rating

IP67

Protection class

III

surface temperature

max. +55°C

Temperature range

-30°C to +45°C

Case material

aluminum housing

Case colour

silver-grey

Optics

5x67°

Width

108 mm

Height

62 mm

Depth

81.5 mm

Weight

0.35 kg

Connector cable

5 m

Connector cable cross-section

3 x 0.25mm²

Connector cable plug

without

Downloads

131068 SpotLED 24 3000K 5x67° PC k Wide

Accessories

Item No: 106563

Rod round V2A Ø30x600mm, for SpotLED

incl. installation material

Item No: 101067

Magnetic clamp, galvanized, round, without rubber protection

Ø50 x 10 mm, force of 180 N, bore Ø8,5mm

Item No: 100347

Plug-in power pack with 1.8m cable 2x0.75mm²,

black, angled connector, 230VAC/18VDC, 50Hz 1200mA

Item No: 109212

Wing screw

Show all

Spare parts

Item No: 152996

Spare glass (assembly),

polycarbonate transparent
