Item No:
860666

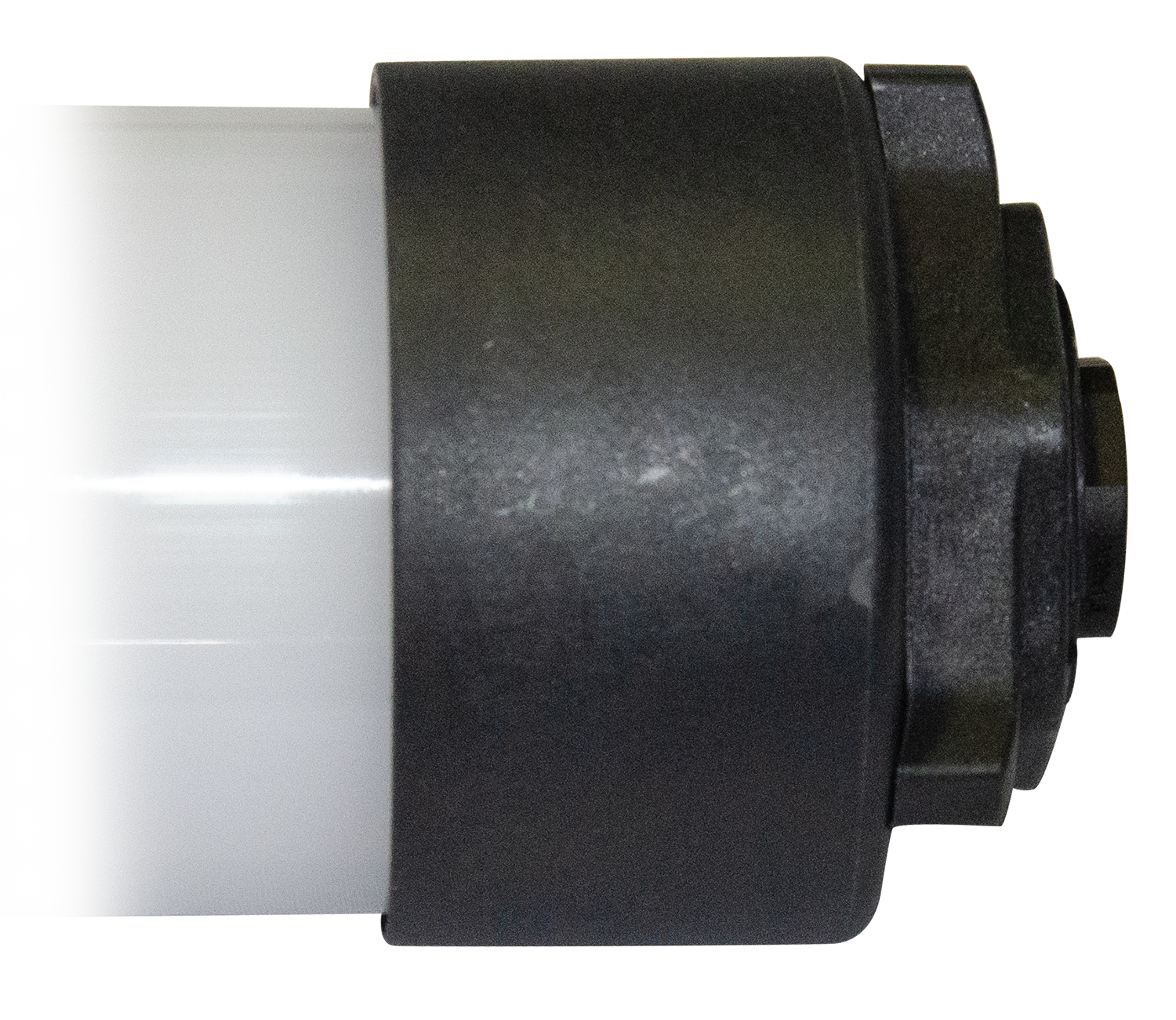

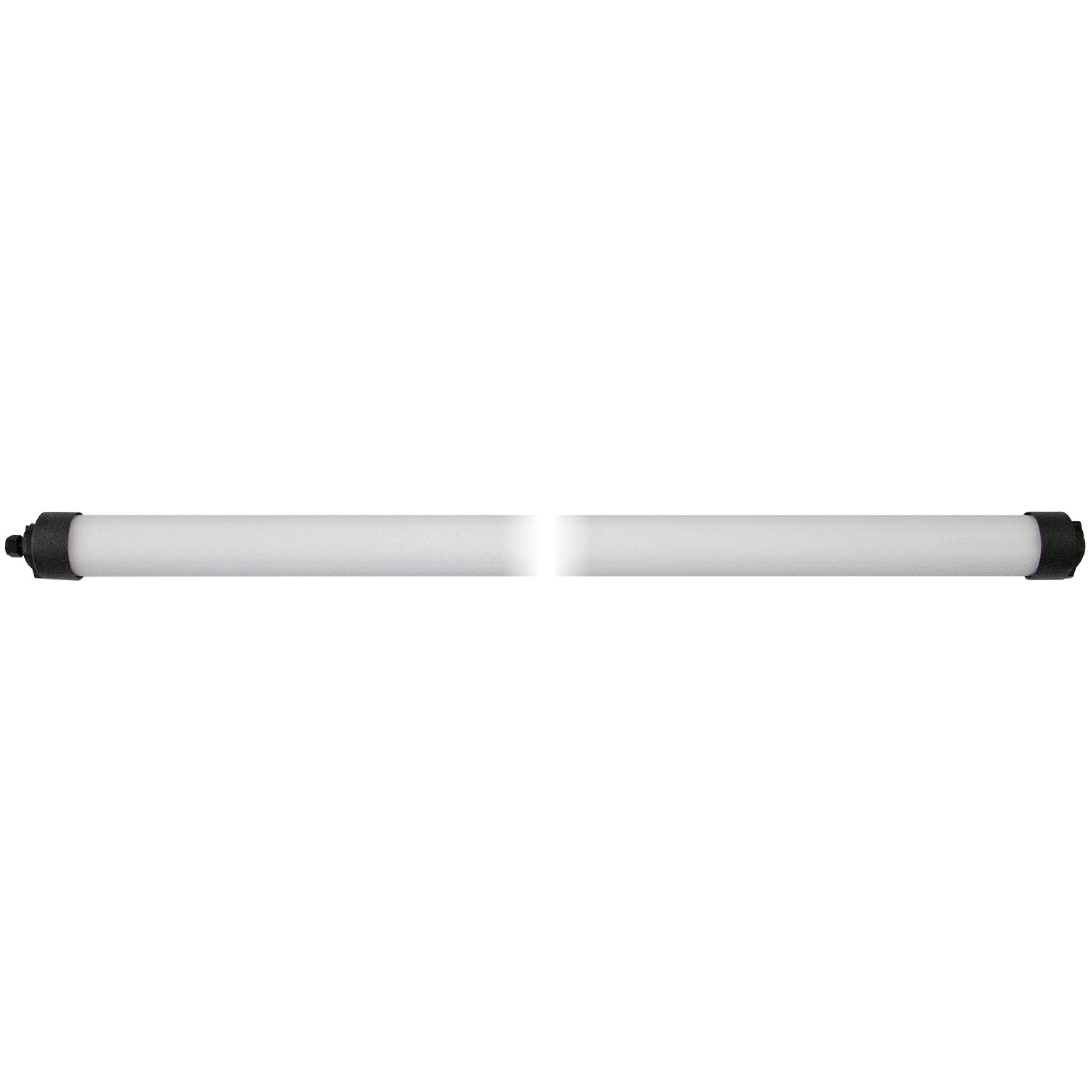

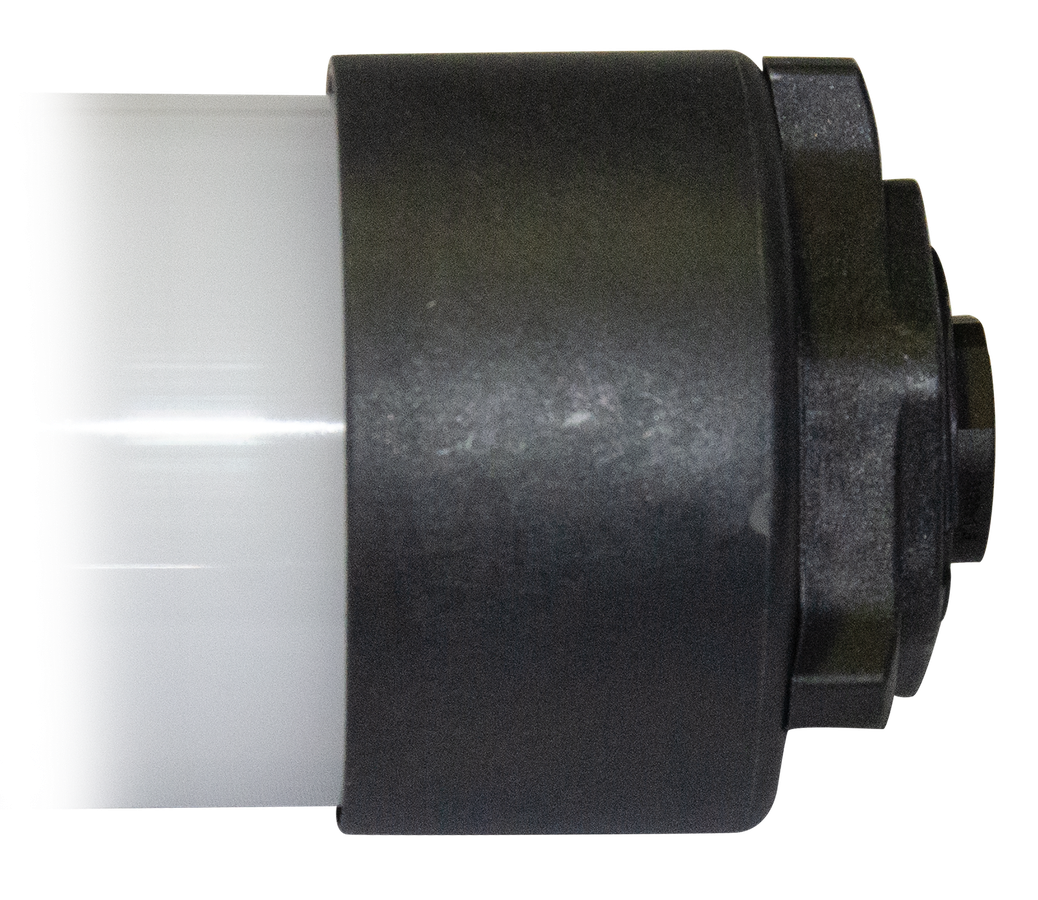

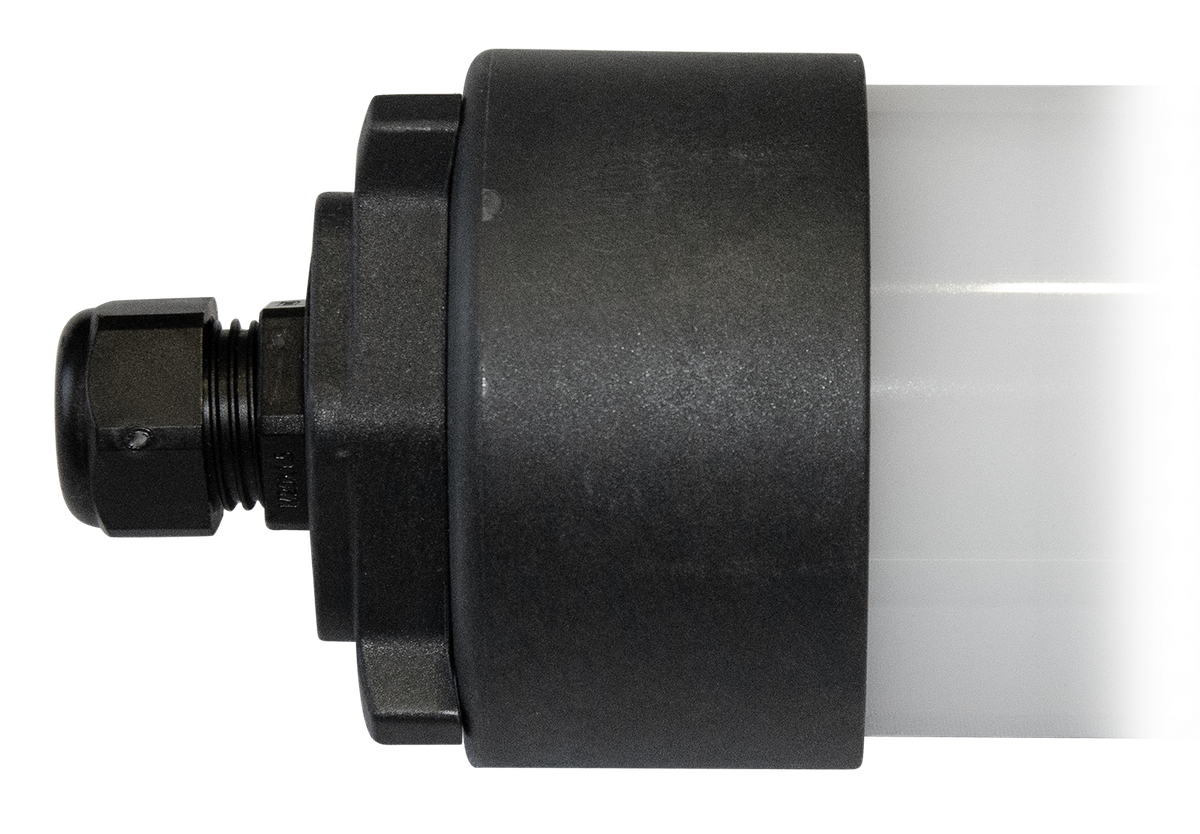

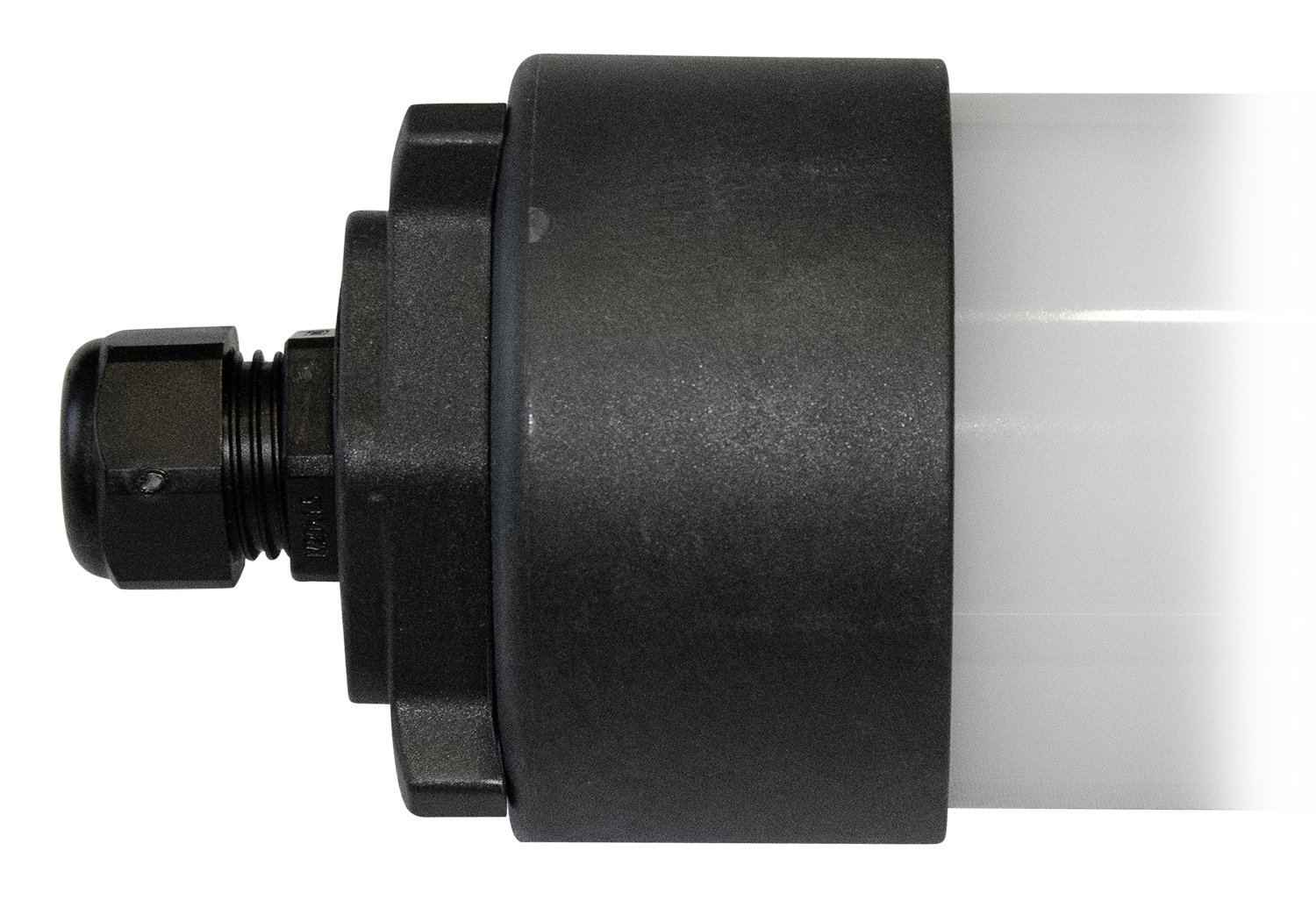

StreamLED 2 20, 20W/230VAC, IP66/IP69, 4'000K,
LED-Print, PMMA acrylic glass satinised, length
751mm, incl. cable glands, excl. accessories
Technical data
- Protection rating
- IP66/IP69, IP67*
- Length
- 751 mm
- Characteristics
- *IP67: for temporary immersion, protected with moulded end caps and moulded connection cable
- Weight
- 2 kg
- Input voltage
- 198-264VAC (176-264VDC)
- Temperature range
- -25°C to +40°C
- Voltage
- 230VAC
- Colour temperature
- 4000 K
- Protection class
- II
- Light output
- 2121 lm
- Performance
- 20 W
- Lifetime
- L70 B10 >50'000h
- CRI Index
- Ra>80
- Beam angles
- 120°
- Impact resistance
- IK10
- Pipe diameter
- 70 mm
- Dimmable
- no
- Material housing / tube
- plexiglass PMMA
Accessories
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/185329/185329_BetaLUXX_Verl.Kabel_2.5m_Webseite_01.jpg)
Item No:
185329
BetaLUXX/StreamLED2 extension cable 2.5m 2x1.5mm²,
H07RN-Fincl. plug and connector
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/188951/188951_BetaLUXX_Verl.Kabel_3.0m_Webseite_01.jpg)
Item No:
188951
BetaLUXX/StreamLED2 extension cable 3.0m 2x1.5mm²
H07RN-F, incl. plug and connector
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/188952/188952_BetaLUXX_Verl.Kabel_5.0m_Webseite_01.jpg)
Item No:
188952
BetaLUXX/StreamLED2 extension cable 5.0m 2x1.5mm²
H07RN-F, incl. plug and connector
:strip_icc():strip_exif()/cee/Documents/Artikelbilder/187542/187542_BetaLUXX_Anschl.Kabel_5m_Webseite_01.jpg)
Item No:
187542
BetaLUXX/StreamLED2 connection cable 5,0m 2x1.5mm²,
incl. plug and connector 2P
