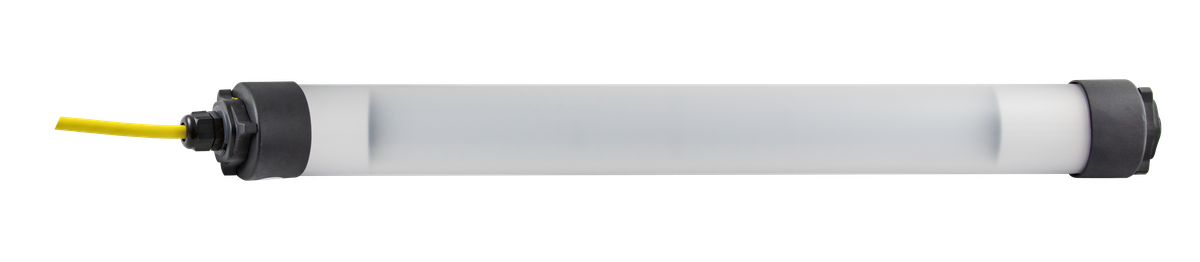

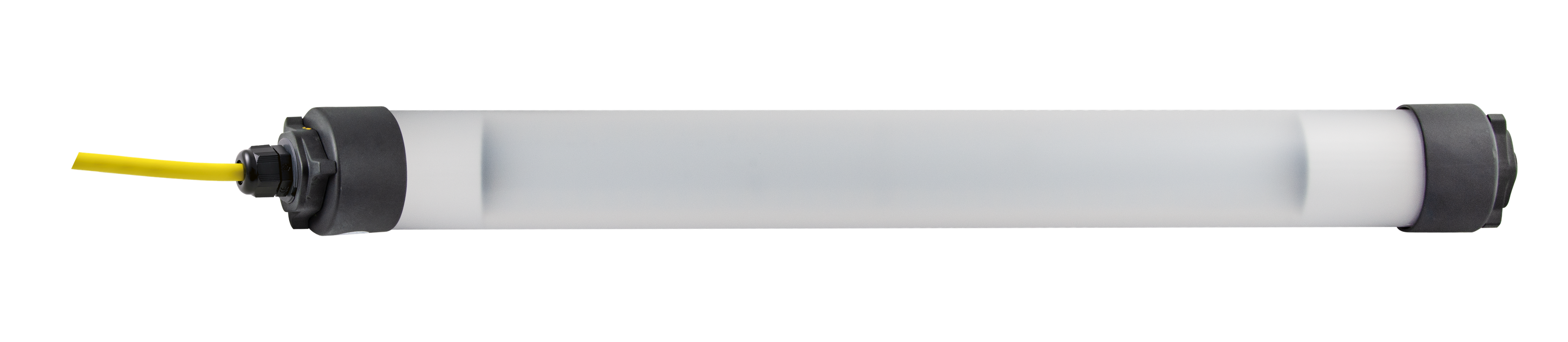

StreamLED 2 40 DALI, 35W/3'000K, LED tube, DGV, 230VAC,

Technical data

Protection rating

IP66/IP69, IP67*

Length

1230 mm

Characteristics

*IP67: for temporary immersion, protected with moulded end caps and moulded connection cable

Weight

3.5 kg

Input voltage

230VAC

Temperature range

-25°C to +40°C

Voltage

230VAC

Colour temperature

3000 K

Protection class

II

Light output

3997 lm

Performance

35 W

Lifetime

L70 B10 >50'000h

CRI Index

Ra>80

Beam angles

120°

Impact resistance

IK10

Pipe diameter

70 mm

Dimming

DALI

Dimmable

yes

Material housing / tube

plexiglass PMMA

Downloads

Dimensional drawing/Scheme 860902 StreamLED2 40 3000K 120° PC s DALI

Accessories

Item No: 840083

Holder A4, Ø70mm, wall mounting angled, 130mm

Item No: 840084

Holder A4, Ø70mm, wall mounting angled, 147mm

Item No: 840085

Holder A4, Ø70mm, straight surface mounting, 160mm

Item No: 103355

Clamp plastic for Ø63-71mm
