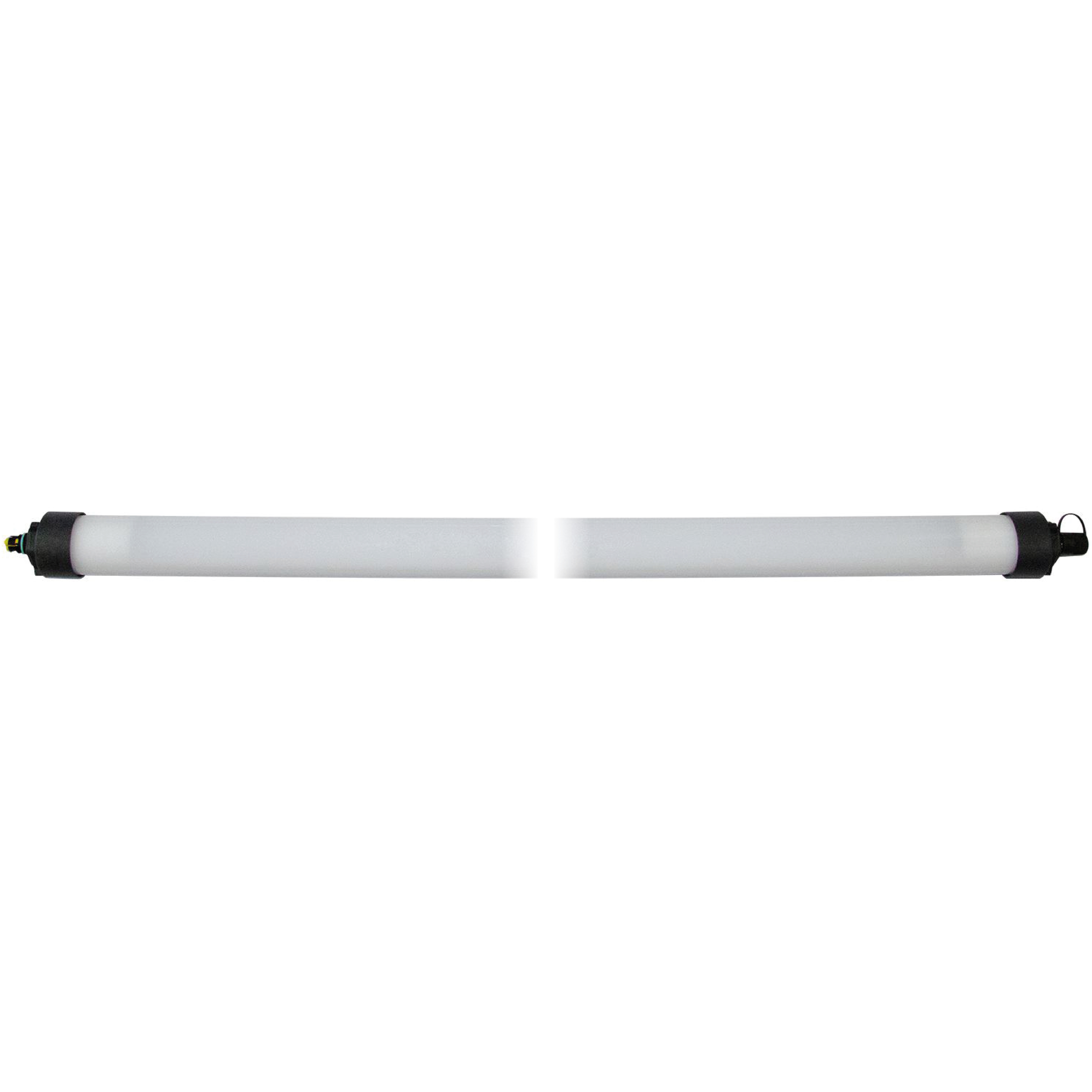

StreamLED 2 60, 55W/230VAC, IP66, 5'000K, LED-Print,

Technical data

Protection rating

IP66

Length

1744 mm

Weight

4.3 kg

Input voltage

198-264VAC (176-264VDC)

Temperature range

-25°C to +40°C

Voltage

230VAC

Colour temperature

5000 K

Protection class

II

Light output

7102 lm

Performance

55 W

Lifetime

L70 B10 >50'000h

CRI Index

Ra>80

Beam angles

120°

Impact resistance

IK08

Pipe diameter

70 mm

Dimmable

no

Material housing / tube

plexiglass PMMA

Downloads

Dimensional drawing/Scheme 860665 StreamLED2 60 5000K 120° PC s

Accessories

Item No: 185329

BetaLUXX/StreamLED2 extension cable 2.5m 2x1.5mm²,

H07RN-Fincl. plug and connector

Item No: 188951

BetaLUXX/StreamLED2 extension cable 3.0m 2x1.5mm²

H07RN-F, incl. plug and connector

Item No: 188952

BetaLUXX/StreamLED2 extension cable 5.0m 2x1.5mm²

H07RN-F, incl. plug and connector

Item No: 187542

BetaLUXX/StreamLED2 connection cable 5,0m 2x1.5mm²,

incl. plug and connector 2P
