Item No: 860944

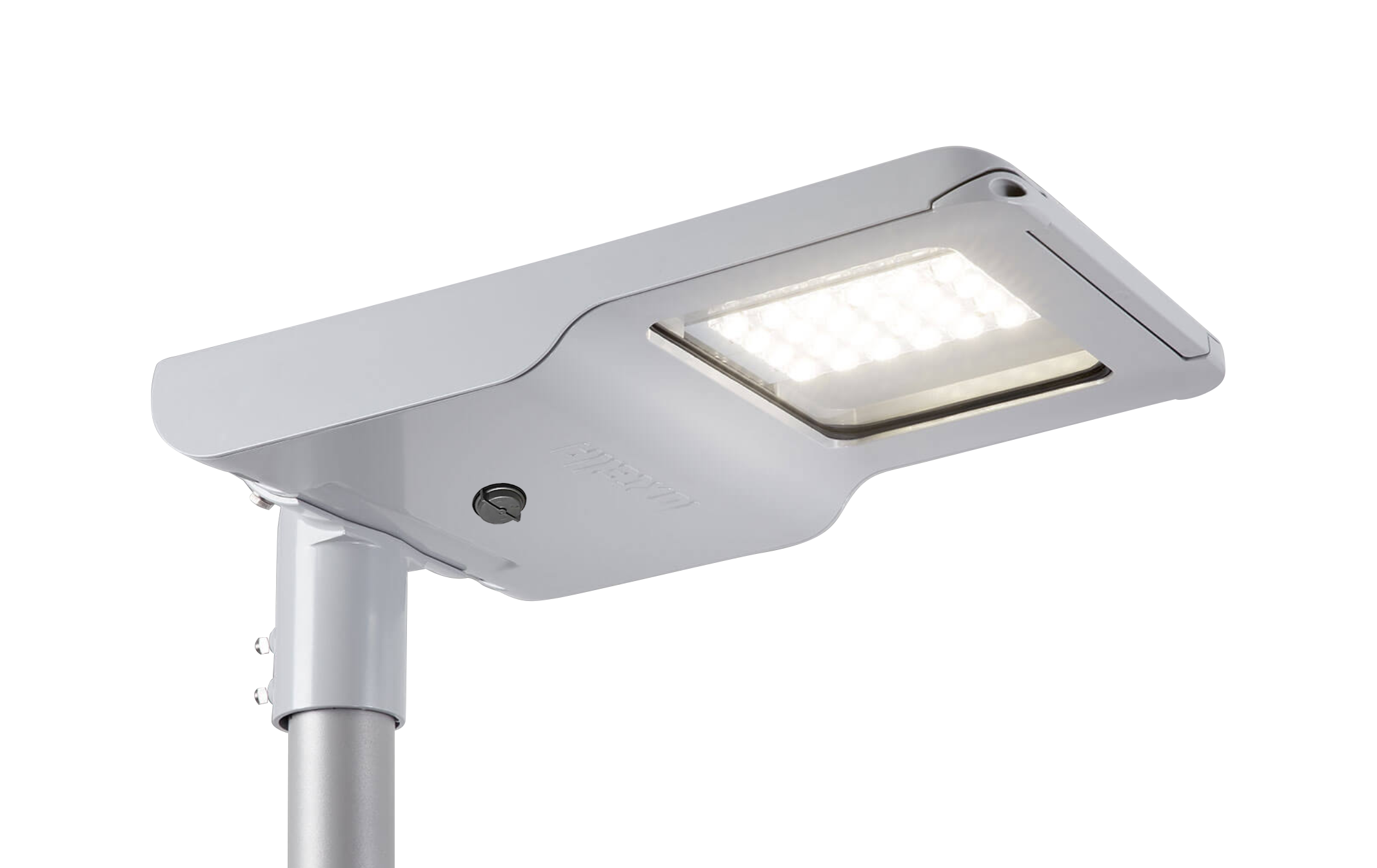

StreetLED CUBE Modular 36, 115W/230VAC

SK1, 13'590lm, 4'000K, Zhaga, 12m cable

Technical data

Input voltage: 202-254VAC / 47-63Hz
Performance: 115 W
Quantity of LED: 36
Power factor: >0.95
Light output: 13590 lm
Light efficiency: 118 lm/W
Dimming: ✓
Colour temperature: 4000 K
CRI Index: Ra>70
Lifetime: L90/B10, 100'000h
Protection rating: IP66
Protection class: IK10
Mounting height: 7-12m
Distance between lamp posts: 38m (@h=8m)
Width: 520 mm
Height: 319 mm
Depth: 70 mm
Weight: 7.2 kg
adjustability: -15° to +15° (5°-steps)
Temperature range: -40°C to +50°C
with regulation: Zhaga-connection with SR-driver
Protezione da sovratensione: 20kV/10kA
Fixation: Flange ø60mm (optional ø76mm)
Connector cable: 12 m
Connector cable cross-section: 4 x 1.0mm²
Connector cable plug: without
Applications: Classic applications include municipal roads, intersections, car parks and challenging open and industrial sites.
