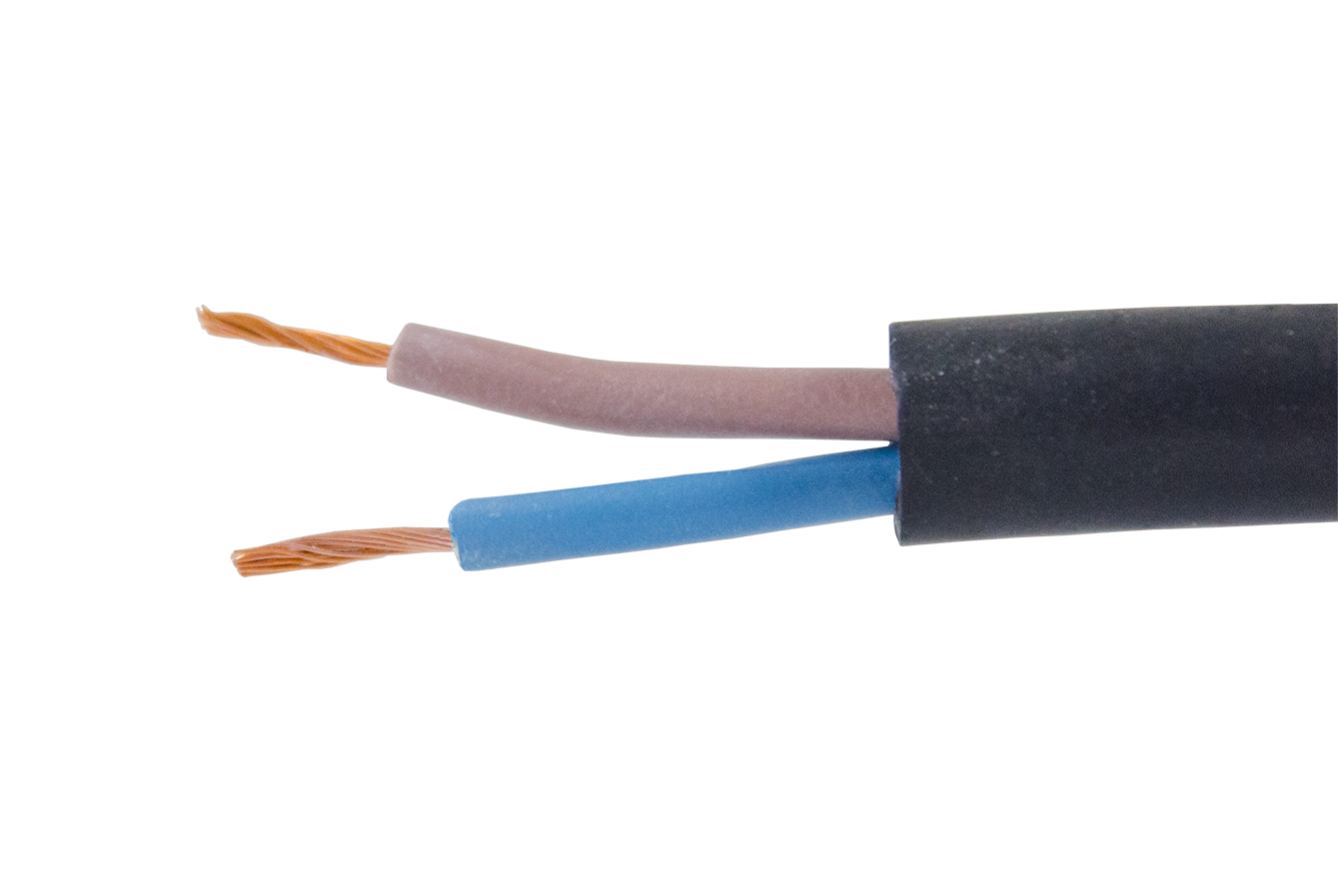

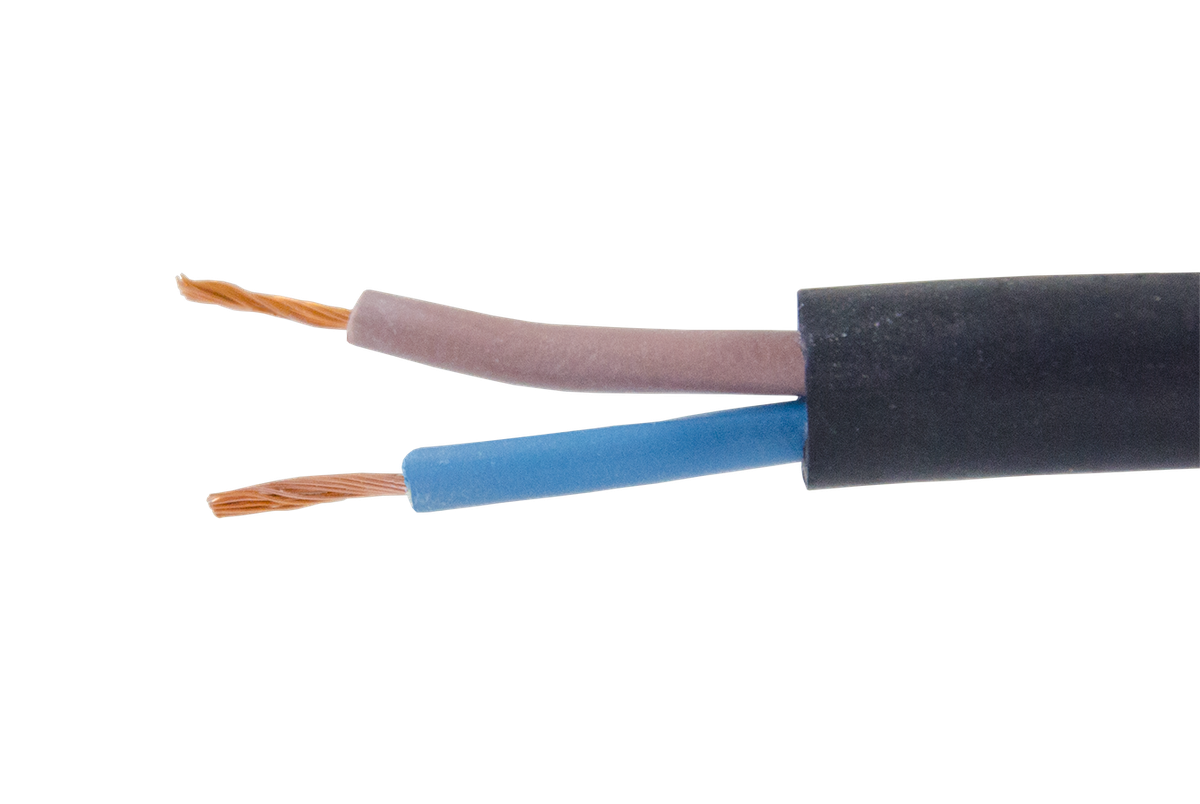

TITANEX HAR - H07 RN-F

Technical data

Cross-section x mm²

2 x 1.5

Cable

Titanex

Colour

black

External diameter

11 mm

Voltage

450V / 750V

Code HD 308 S2

bl, br

Strand structure (quantity x mm)

32 x 0.25

Bending radius

3-4xD (D=Ø)

Testing voltage

2'500V / 50Hz

Weight kg/100m

11.1 kg

External diameter

8.5-11.0mm

Temperature range

-35°C bis +90°C, ruhend -60°C bis +90°C, kurzfristig bis +200°C

Cores/coat

Cu-flex (VDE 0295 Kl. 5), Gummi-Isolierung Typ T14/Gummi-Aussenmantel Typ EM2 nach HD22, (vernetztes Elastomer), (VDE 0282)

Model

Standard

Water resistance

AD6 (sonic water)

suitable for

Item No: 860615

BetaLUXX ceiling light 60, 55W / 230VAC, IP66,

4‘000K, incl. plug and connector 2P, excl. accessories

Item No: 860645

BetaLUXX ceiling light 40, 35W / 230VAC, IP66,

5‘000K, incl. plug and connector 2P, excl. accessories - for Internation Food Standard

Item No: 860628

BetaLUXX ceiling light 40, 35W / 230VAC, IP66,

3‘000K, incl. plug and connector 2P, excl. accessories

Item No: 860629

BetaLUXX ceiling light 60, 55W / 230VAC, IP66,

3‘000K, incl. plug and connector 2P, excl. accessories

Show all
