Item No: 861004

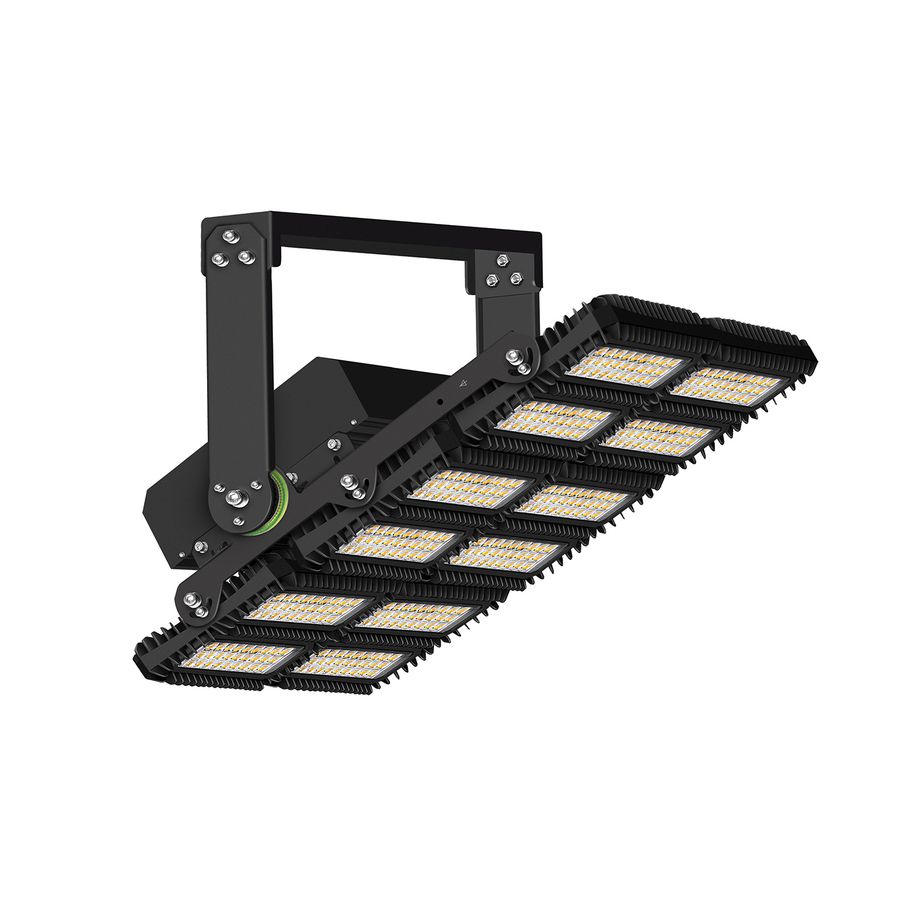

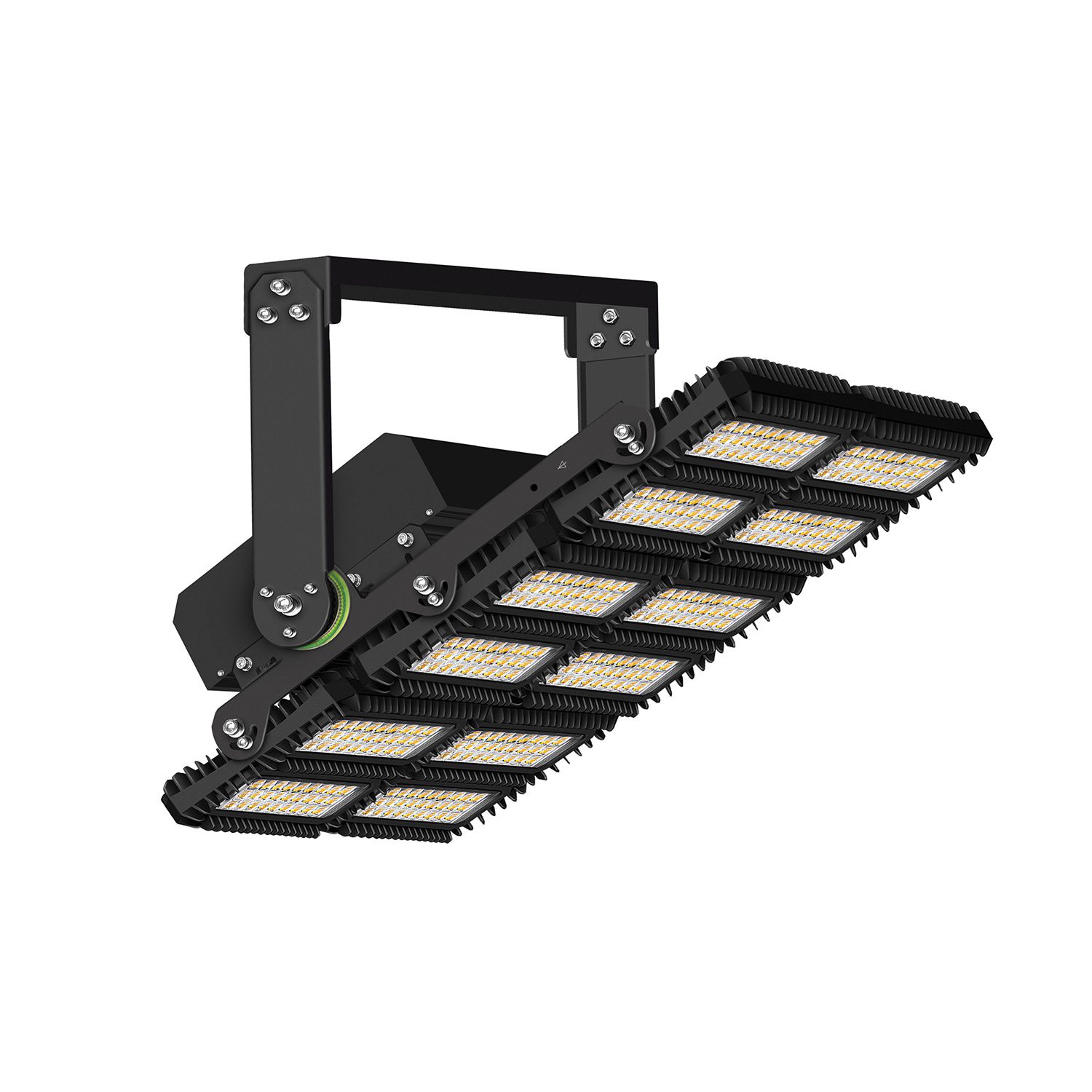

Wide area lighting system HPL 1'350W, 230VAC,

5’700K, 197’600lm, asy. 130°x40°, IP66, DALI

Technical data

Input voltage: 100-240VAC
LED power: 1350 W
Performance: 1380 W
Light efficiency: 146 lm/W
CRI Index: Ra>70
Lifetime: L80/B50>97'000h
Protection rating / - class: IP66/I
Impact resistance: IK10
Dimmable: yes
Temperature range: -20°C to +50°C
surface temperature: +90°C (suitable for use in industrial premises with fire hazards), D rating label
Weight: 42.8 kg
Width: 700 mm
Height: 890 mm
Depth: 240 mm
Case material: aluminium
Case colour: black, powder-coated
Swivel range of bracket: 270°
Connector cable: 0.8 m
Product properties: Modular LED light with single-LED technology
0.8m long supply line with mounted plug connection
extremely high switching capacity (>1 million)
integrated thermal management
