Cable crossover DEFENDER 3 2D



modular, wheelchair accessible

Robust cable bridge made of polyurethane

The Defender cable bridge is a heavy-duty solution for protecting cables and wires from damage in demanding environments. Polyurethane is a tough material known for its flexibility, resistance to wear and tear and high load capacity.

For many years, has a range of GIFAS cable bridges in the offer. This range was in this period expanded and improved to such new needs of the buyer‘s marked needs.

Today, cable bridges meet the highest standards and have become accepted as the standard for big gatherings and events. Other applications include installations in industrial applications, and mobile sectors, construction companies and emergency services.

Highest quality

All GIFAS cable bridges are made of polyurethane in the fire protection class B2 (according to DIN 4102) and thus oil, acids, and gasoline resistant.

The operating range is –30° C to +60° C. The Shore hardness is 88 ± 4A. GIFAS cable bridges in accordance with EN 61537:2007; (IEC 61537:2006) in accordance with the provisions of Directive 73 / 23 / EEC (Low Voltage Equipment).

Product features

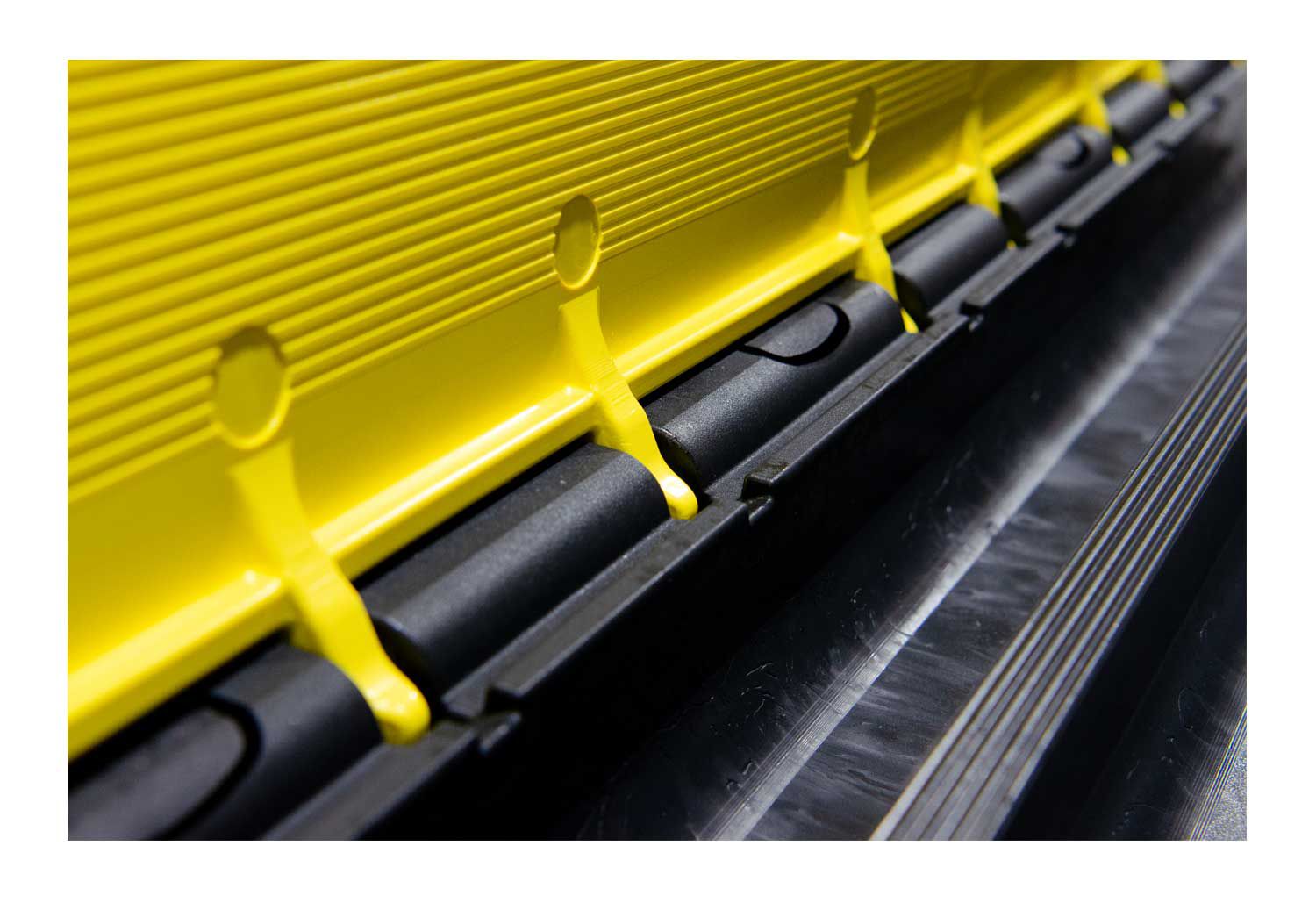

  • patented self-cleaning hinges
  • fire protection class E according to DIN EN 13501-1
  • very stable, tear-resistant and 100% recyclable plastic
  • resistant to oil, petrol and short-term contact with solvents
  • hardness range 88 Shore-A ± 4

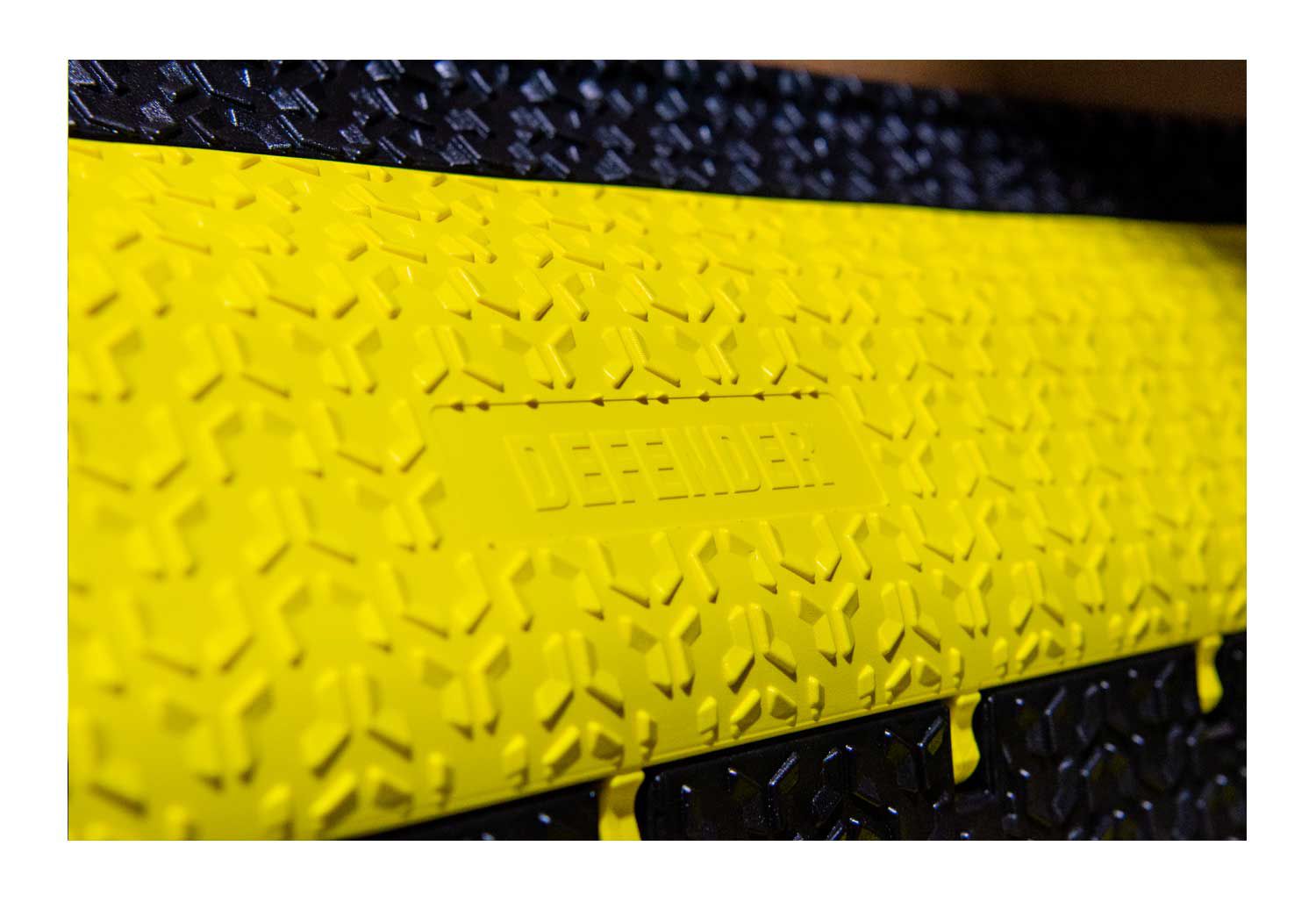

  • high-strength all-round cable crossover with 3D laser grip anti-slip surface of black, recycled polyurethane
  • yellow recyclable polyurethane cover with high warning effect

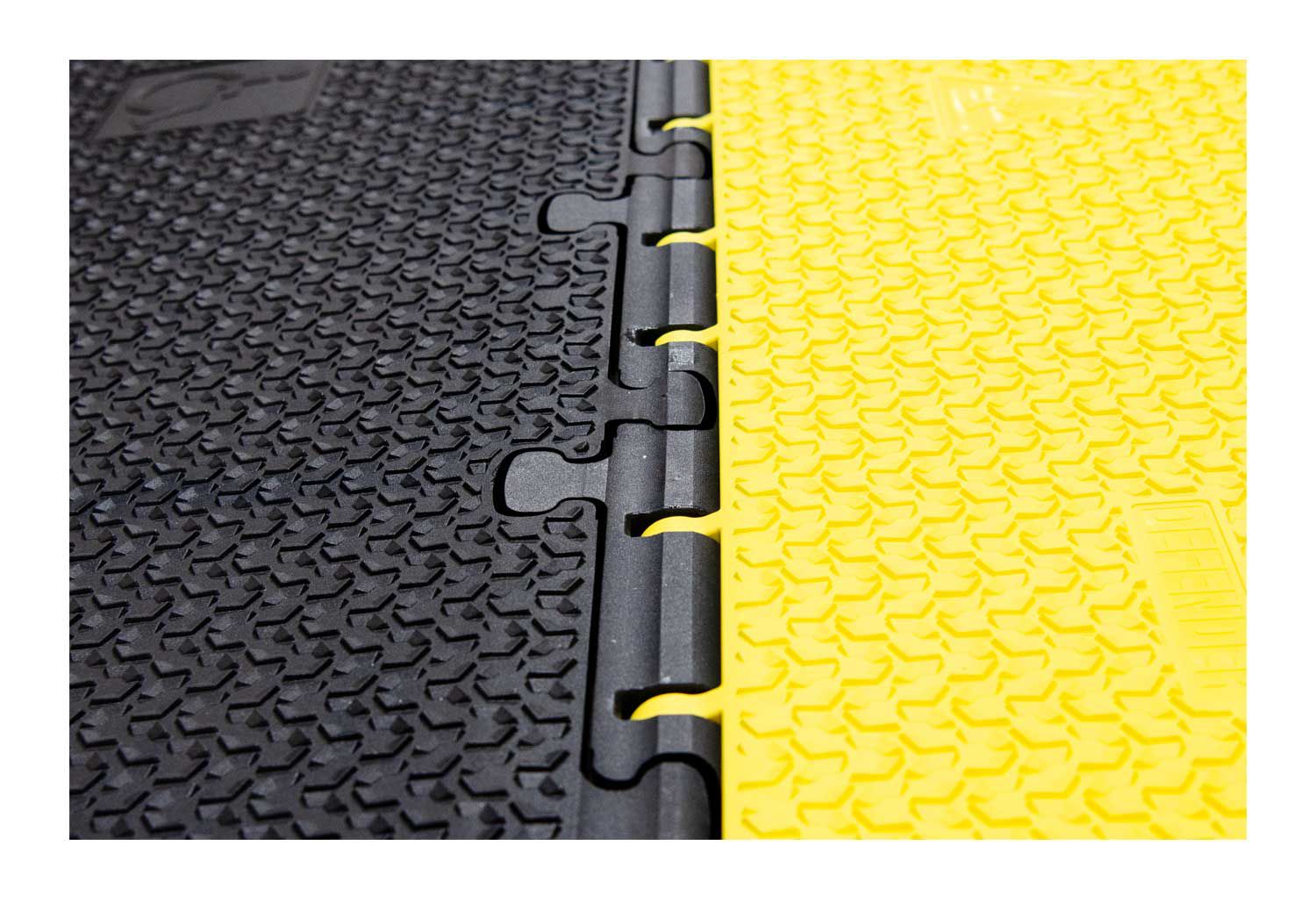

  • simple, multi-directional modular design with unlimited width and length expandability

Technical data

  • Material lower section: polyurethane, black
  • Material lid black: polyurethane, yellow
  • max. load: approx. 5‘000 kg / 750 cm2
  • Dimensions (l×w×h):
    • Item no. 224766: 1‘000×330×73 mm
    • Item no. 242888: 500×330×73 mm
    • Item no. 224767: 1‘000×600×71 mm
  • Channels: 3 Channels
  • Cuct height (H×B): 2x: 52×49 mm / 1x: 45×50 mm
  • Weight:
    • Item no. 224766: 13.5 kg
    • Item no. 242888: 6.75 kg
    • Item no. 224767: 15.9 kg
