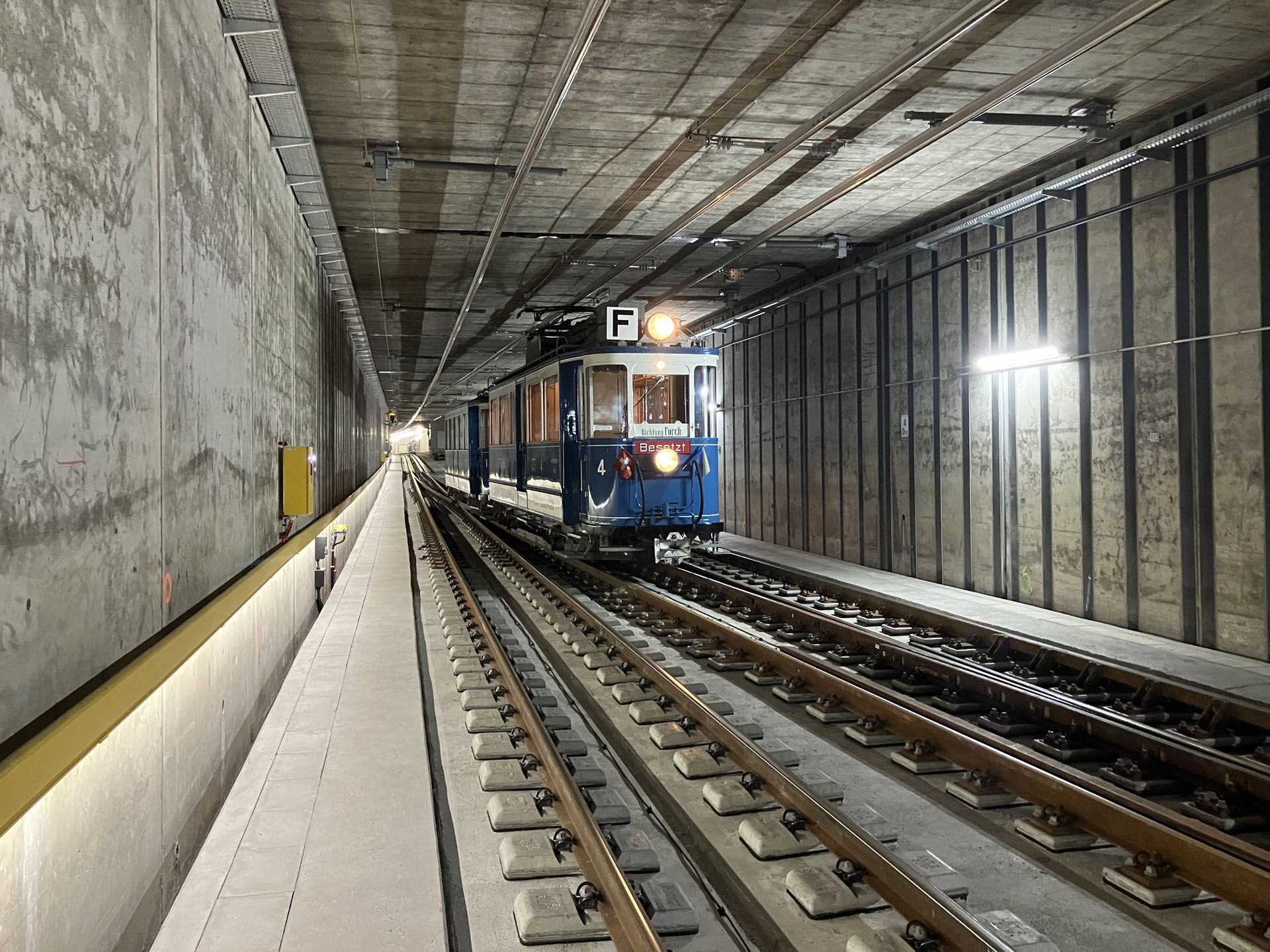

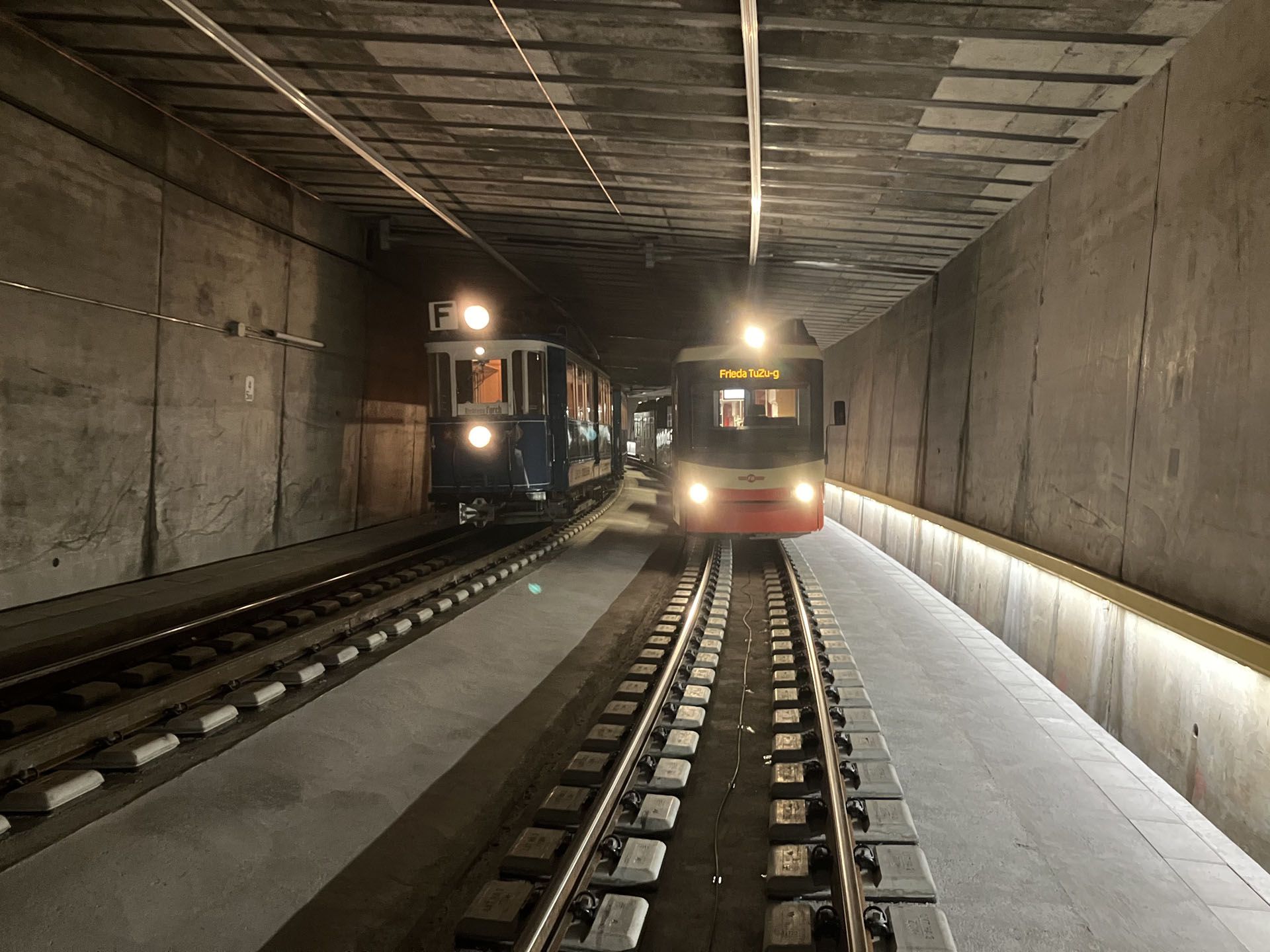

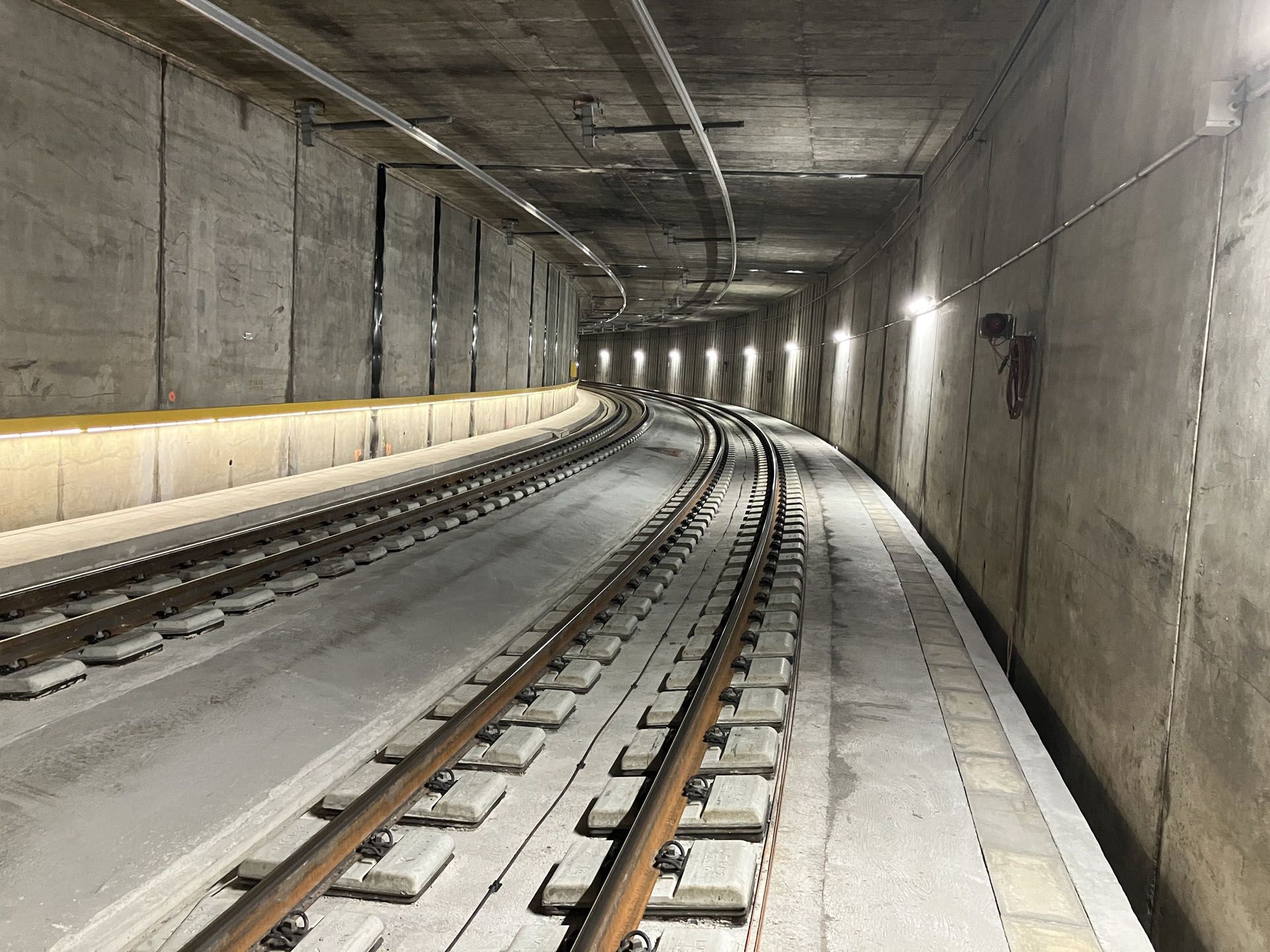

LaneLED GFK in the Zumikon tunnel
of Forchbahn AG
System-tested emergency lighting for self-rescue measures – well prepared for emergencies
In accordance with the SBB standards and the technical fire protection technical fire protection requirements, we planned and implemented safety lighting for the evacuation and implemented safety lighting for evacuating people from the tunnel. The handrails were mounted directly on the wall, standardised and tested in the event of a fire. The LaneLED GRP system was adapted to the existing signalling boxes using special brackets for the specific project. Socket distributors for maintenance as well as basic and maintenance lighting were also realised.
Project details
| Customer/installation engineer: | Forchbahn AG / ETAVIS AG |
| Requirement: | safety-related escape route lighting for rapid evacuation in the event of a fire |
| Solution: | glass fibre reinforced handrail, mounted on the wall, LaneLED GFK system |
| Item no.: | LaneLED type 5 GFK in light colour white 5'000 K |
| Quantity: | 1'824 m |
| Areas of application: | Railway and car tunnels, private mountain railways, tunnel lighting, safety, access and evacuation tunnels, power station and cavern tunnels |
:strip_icc():strip_exif()/cms/Referenzen/09-86%20LaneLED%20GFK%20im%20Zumikon%20Tunnel%20der%20Forchbahn%20AG/laneled-gfk-forchbahn-ag-tobias-muller3.jpg)
Customer benefits
- tested safety-relevant system (in accordance
with DIN 4102 Part 12) - completely insulated design thanks to LaneLED GFK
- combination of different products – complete supplier
- new compact supply unit
- durable and maintenance-free components
- complete support – from planning to factory acceptance
Downloads
LaneLED GFK
Detail catalog
The advantages at a glance
High-quality innovations with a sustainable claim
:strip_icc():strip_exif()/cms/L%C3%B6sungen/gifas-haken_30.png)
Individual solutions
Our specialist staff will work with you to develop individual solutions for specific needs and different locations.
Experience
You can rely on our distinctive expertise and partnership-based cooperation. This results in pioneering solutions of the highest quality.
Professional advice
Our competent sales representatives and experienced project managers provide direct advice on site.
