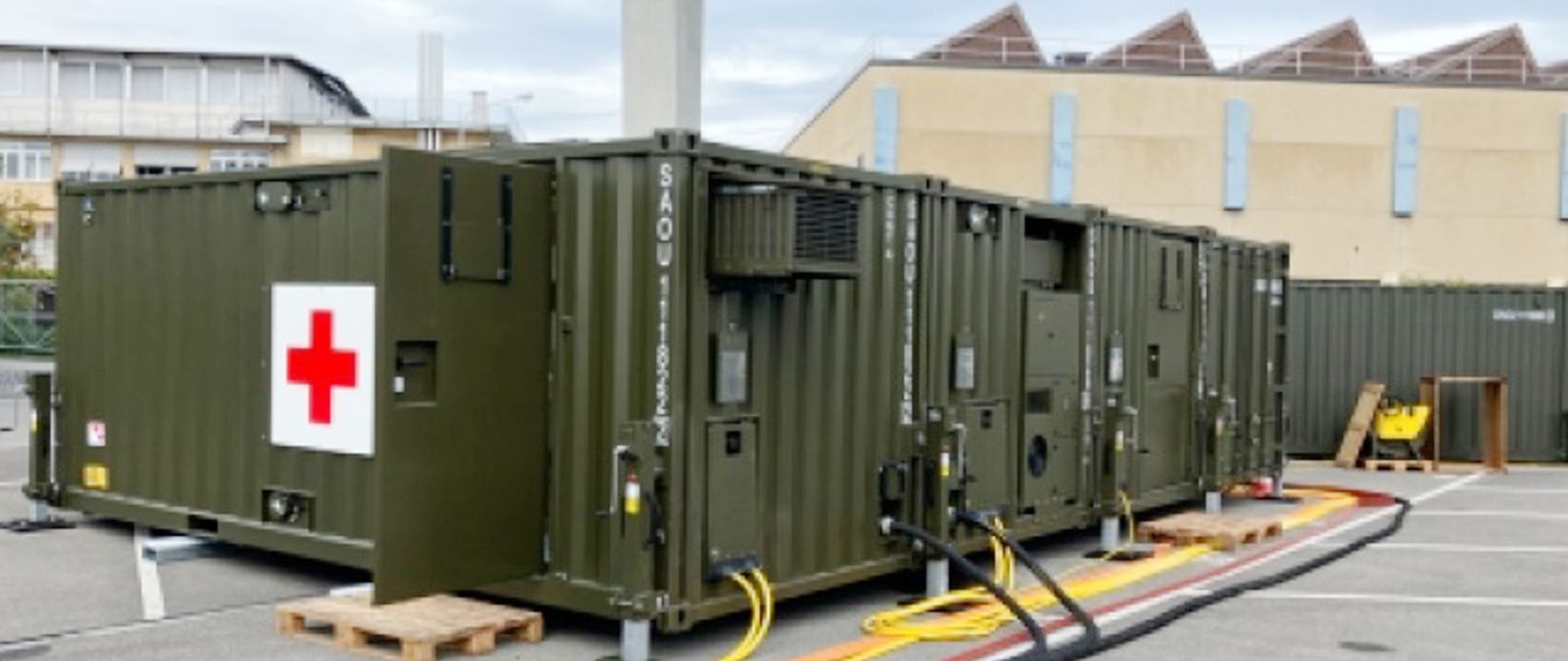

Mobile 7-chamber cable reel integrated in mobile

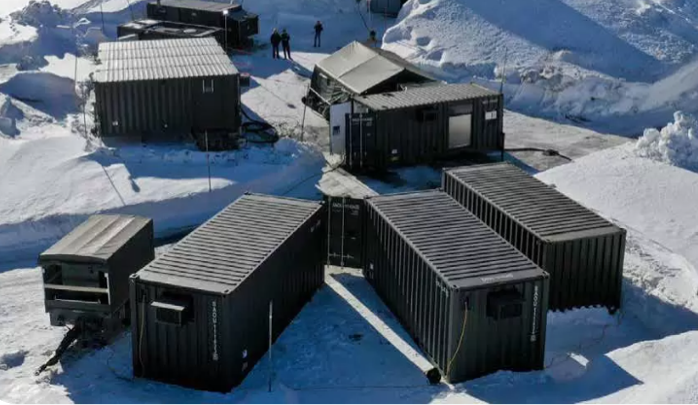

medical container systems

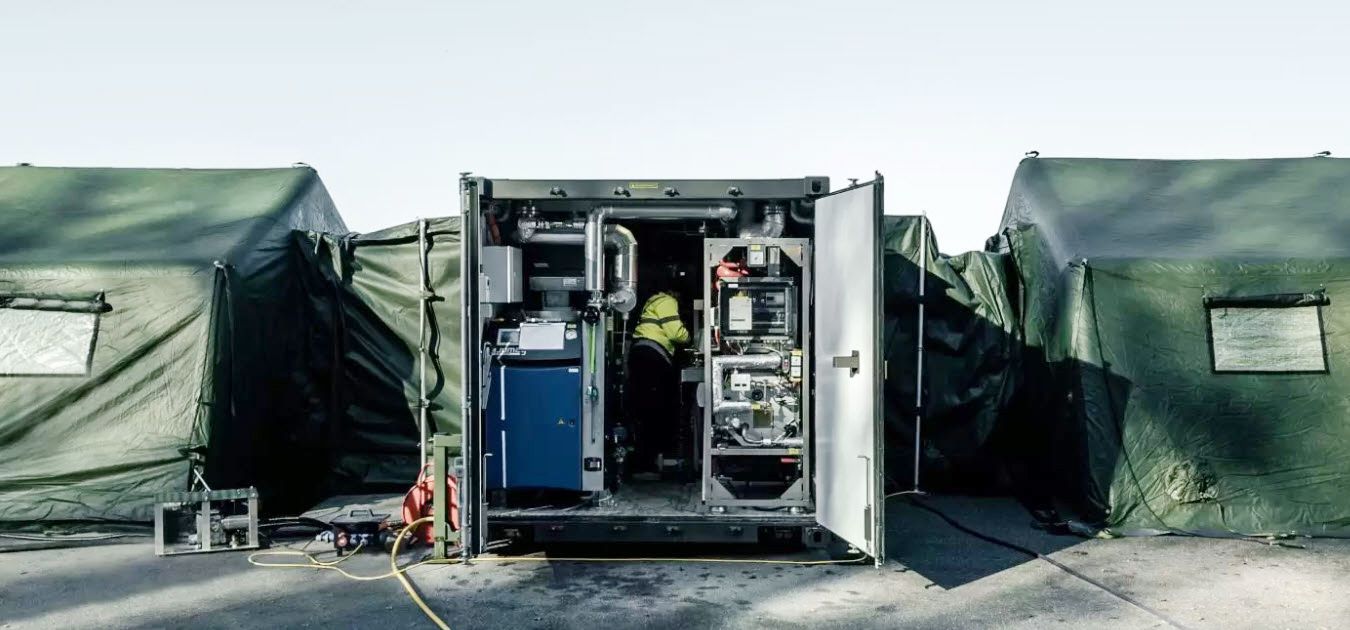

Compact, mobile system for emergency care
Humanitarian crises and hygienic challenges require a rapid action and targeted solutions. In such situations, effective medical care must be guaranteed all times. Whether for disinfection, sterilisation or as an immediate operational emergency care centre, mobile medical container systems provide the necessary support anywhere.

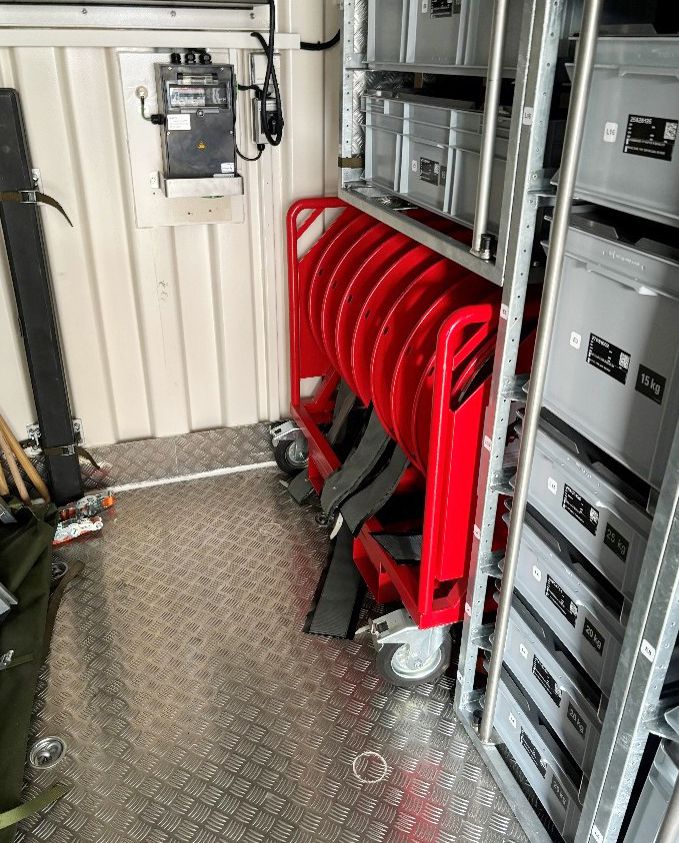

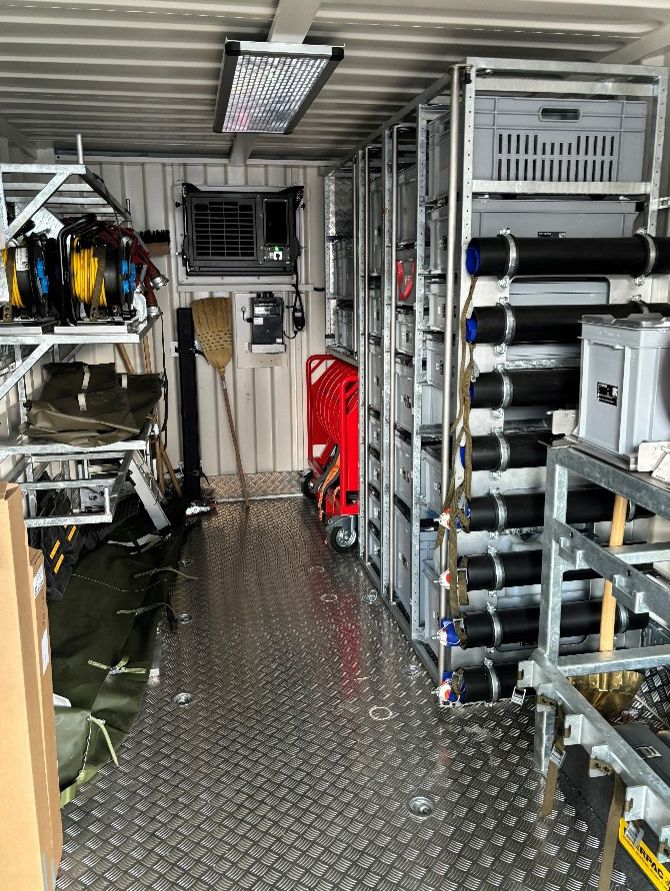

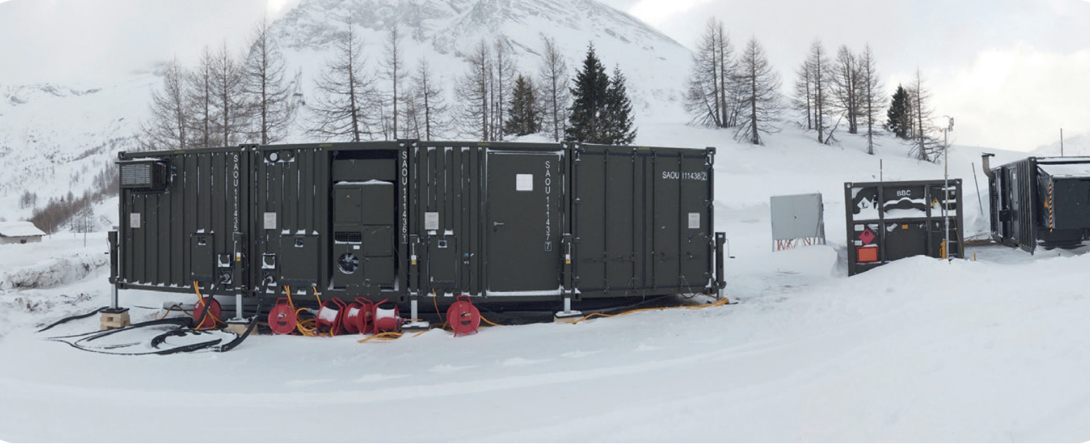

The existing range of individual cable reels needed to be replaced to enable faster and easier handling of extension cables. Space in the containers is very limited, so a compact, mobile system was required. The appropriate solution was developed in close cooperation with armasuisse.
Project details
| Customer/installation engineer: | armasuisse |
| Requirement: | Replace the individual cable reels with a combined solution for the mobile sterilisation container system. Limited space allows a maximum size of a Euro pallet. |

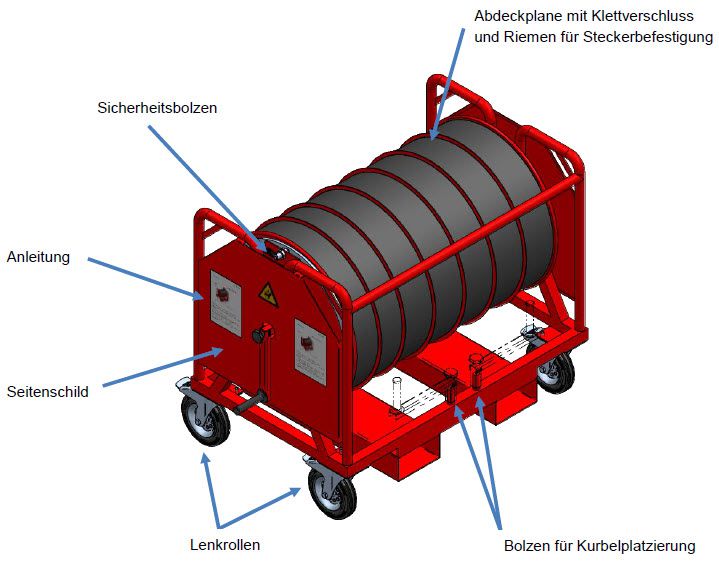

| Solution: | Special construction with 7 cable chambers |
| Article: | 221568, cable reel type 506, mobile, in RAL 3020 |
| Quantity: | 5 |
| Equipment: | 7 extension cables: 1×30 m 3×2.5 mm² CEE 16/3, 1×15 m 5×2.5 mm² CEE 16/5, 5×15 m 5×16 mm² CEE 63/5 – all with protective cover (protection) |
| Areas of application: | Safety and protection → Military & civil defence, fire brigade, police, ambulance |
:strip_icc():strip_exif()/cms/Referenzen/07-05%20Fahrbare%207-Kammern-Kabelrolle%20armasuisse/Containersystem-mit-Kabeln.jpg)
Customer benefits
-
all in one system
-
easier handling
-
mobile use with castors (with parking brake)
-
small footprint (1 pallet space), thus more space for other auxiliary material
-
maximum graspable extension cable: 15 m 5×16mm² CEE 63/5
