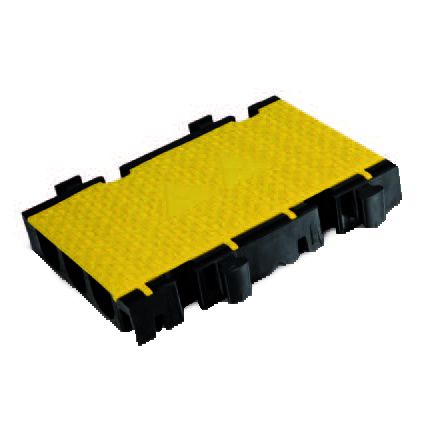

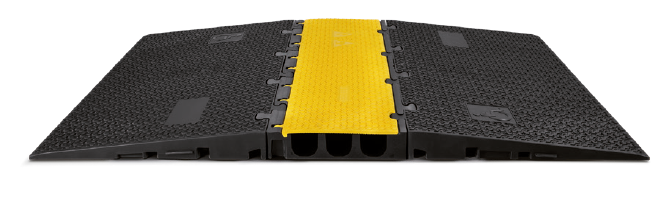

Cable crossover Defender 3 2D, 3 channels,

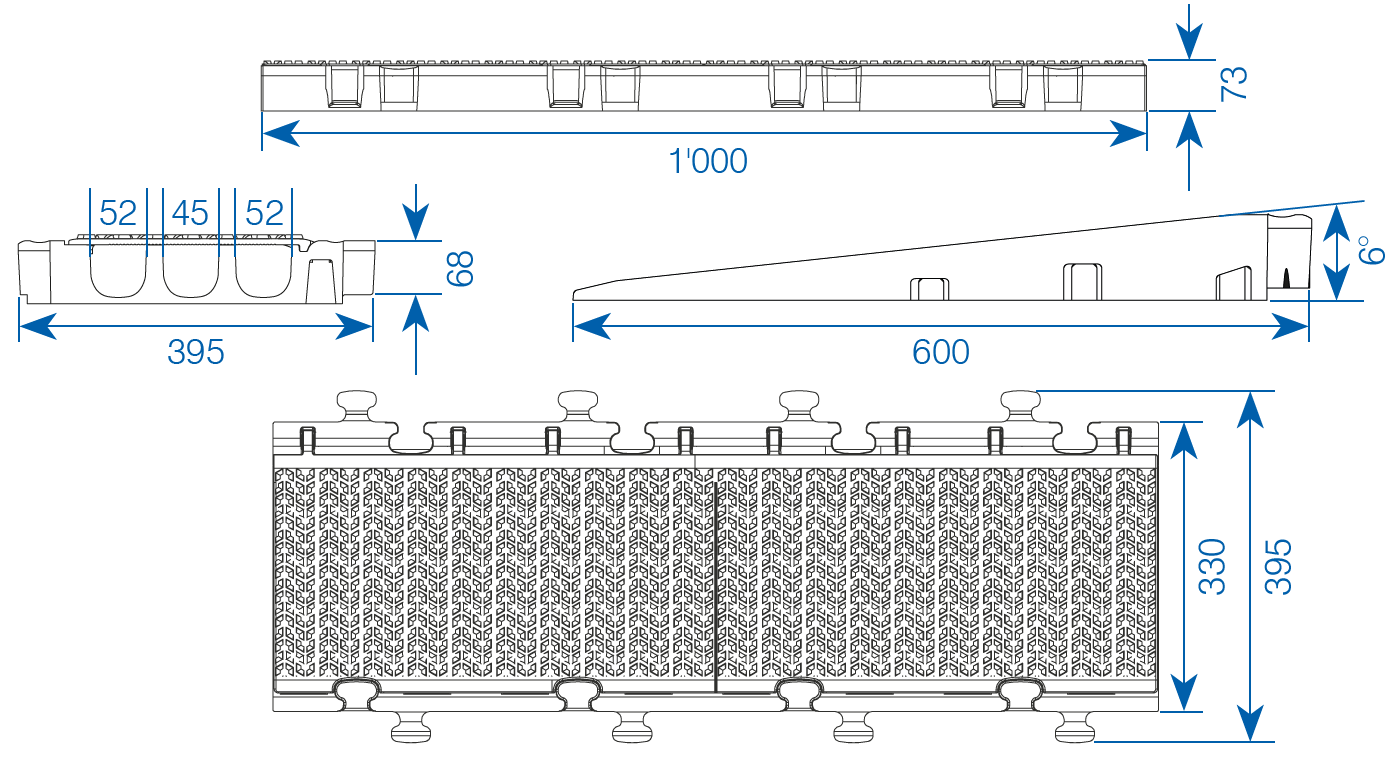

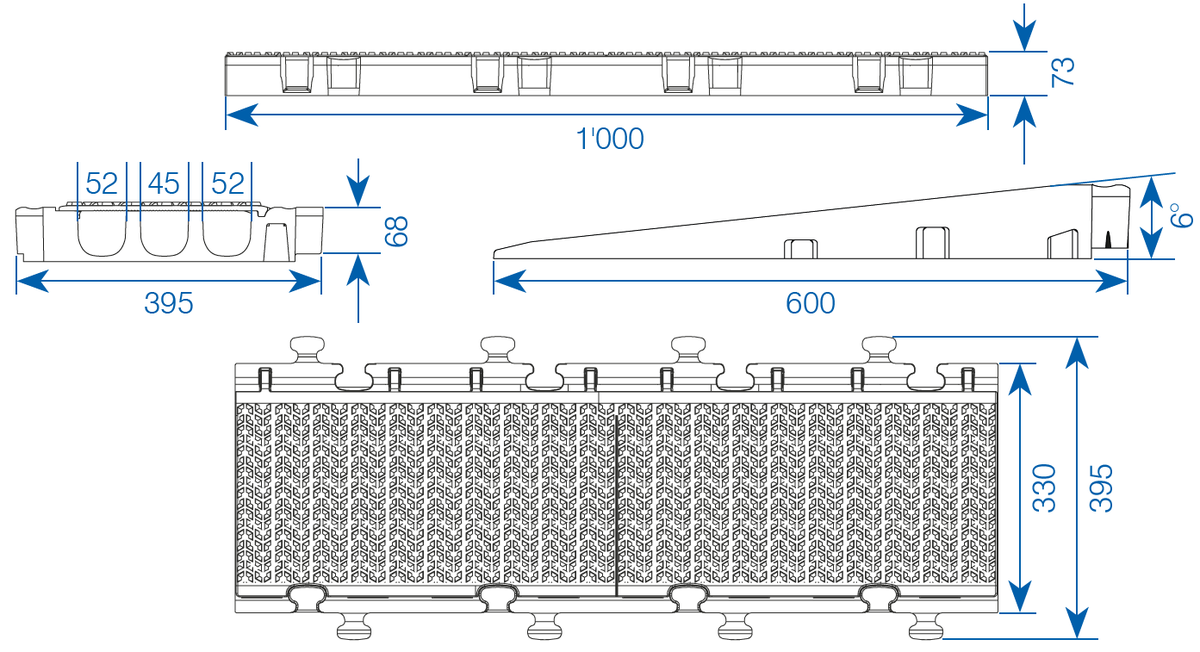

Technical data

Material

polyurethane

Width

330 mm

Length

500 mm

Height

73 mm

Colour

black-yellow

Characteristics

• heavy-duty cable bridge with 3D-Lasergrip non-slip surface made from recycled polyurethane

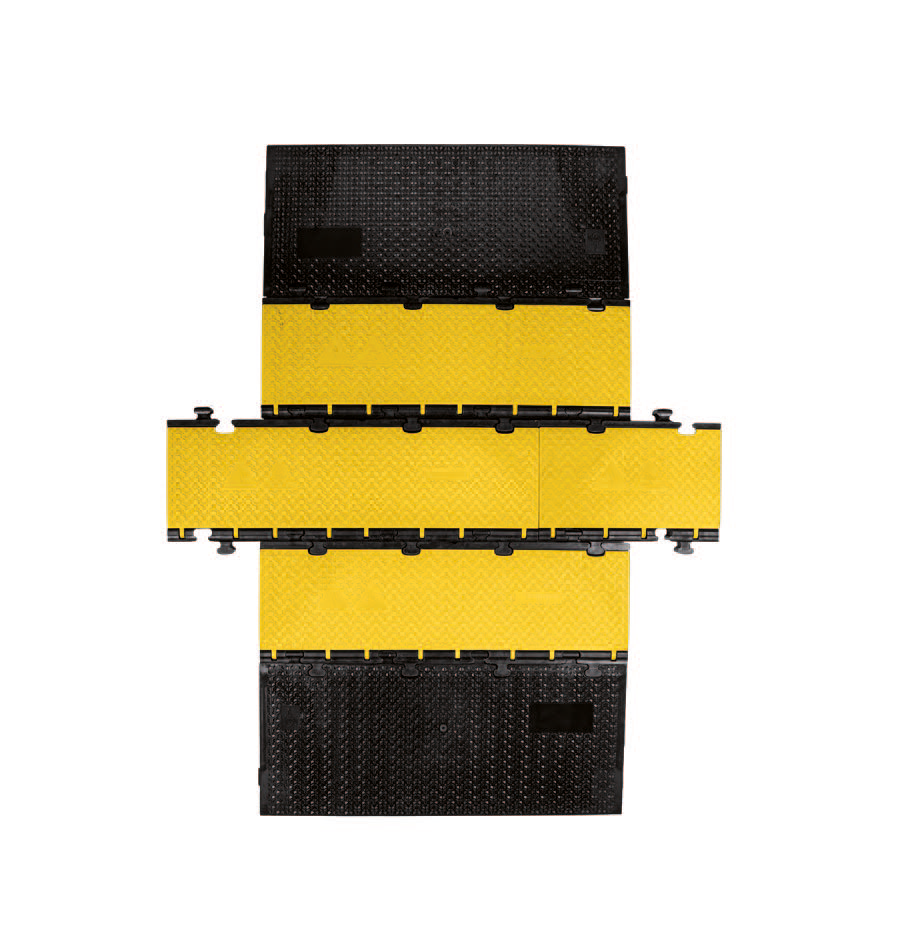

• Simple, multi-directional modular design with unlimited expandability in width and length
• Made of extremely robust and break-proof TPU
• Recyclable polyurethane lid with secure locking and patented self-cleaning lid hinge
• Fire protection class E according to DIN EN 13501-1

Weight

6.6 kg

Max. load

~5’000kg/750cm²

Diameter of cable

50 mm

Quantity of channels

3 pc

Accessories

Item No: 224767

Ramp for cable crossover Defender 3 2D

modular system, 1'000x600x71mm

Item No: 224766

Cable crossover Defender 3 2D, 3 channels,

modular system - middle part, 1'000x395x73mm

suitable for

Item No: 224767

Ramp for cable crossover Defender 3 2D

modular system, 1'000x600x71mm

Item No: 224766

Cable crossover Defender 3 2D, 3 channels,

modular system - middle part, 1'000x395x73mm
